Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  2. Raise and support the vehicle.
  3. Remove the RH front wheel.
  4. Remove the splash shield. For additional information, refer to FRONT END BODY PANELS .

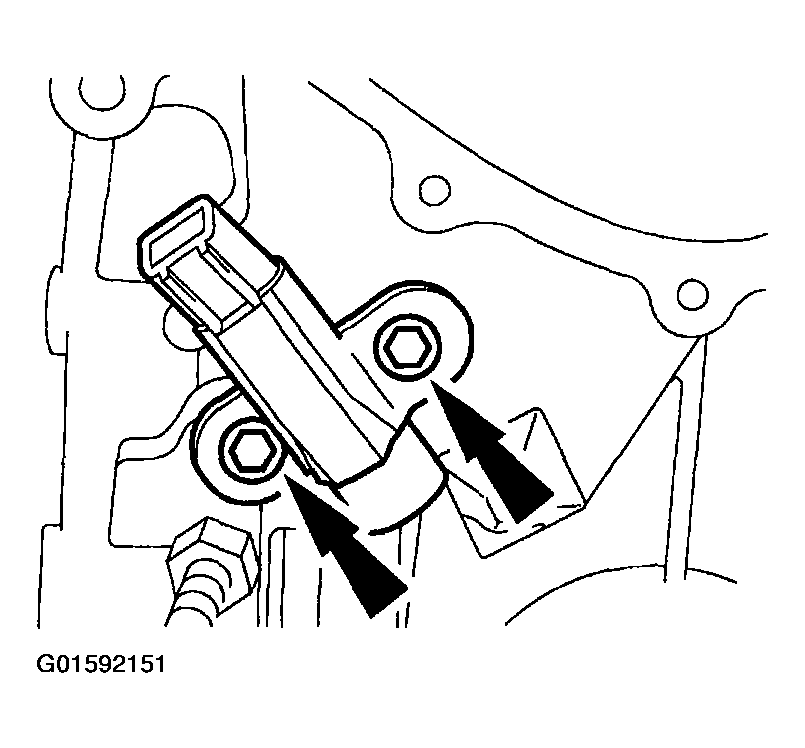

  5. Disconnect and remove the crankshaft position (CKP) sensor.
    Fig 1: Identifying Crankshaft Position (CKP) Sensor
    G01592151Courtesy of FORD MOTOR CO.

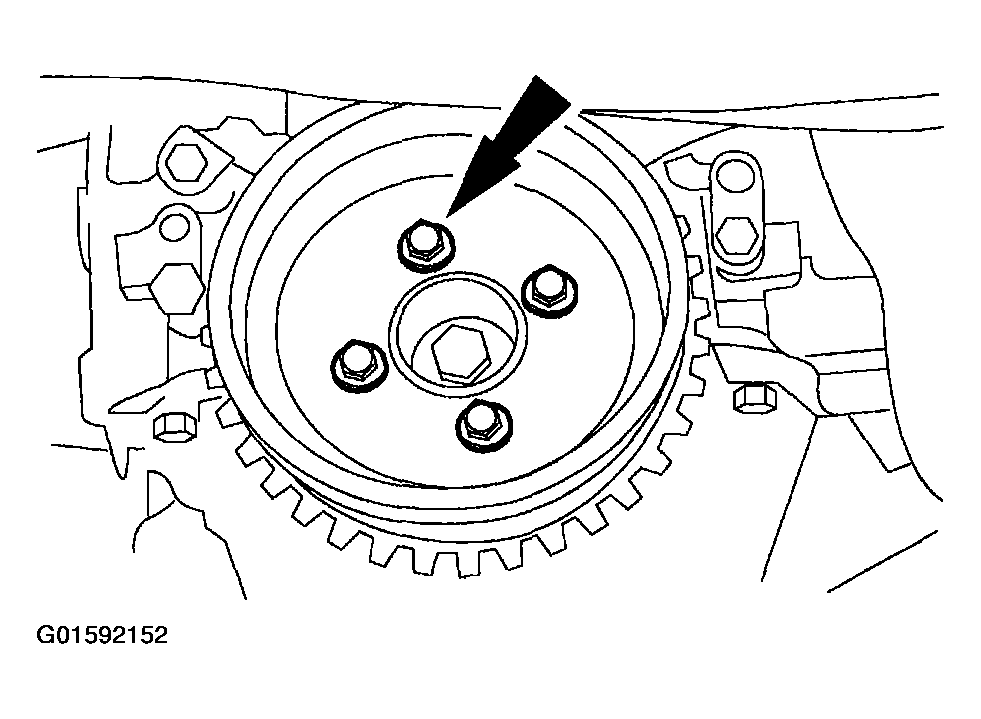

  6. Remove the bolts and the crankshaft pulley.
    Fig 2: Identifying Bolts And Crankshaft Pulley
    G01592152Courtesy of FORD MOTOR CO.

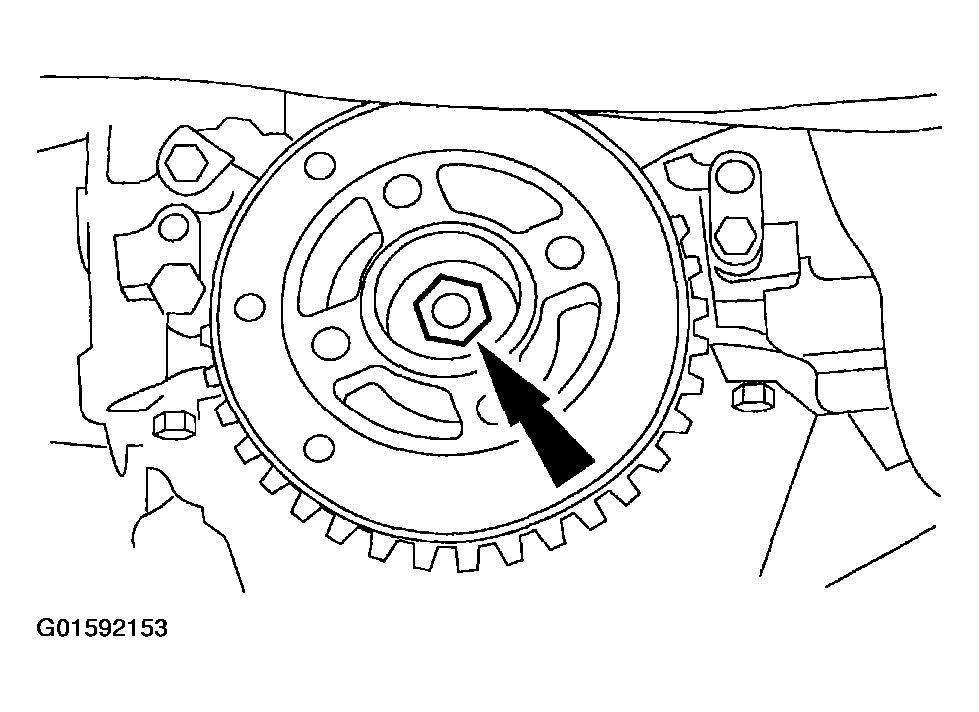

  7. Remove the crankshaft damper bolt and washer.
    Fig 3: Identifying Crankshaft Damper Bolt And Washer
    G01592153Courtesy of FORD MOTOR CO.

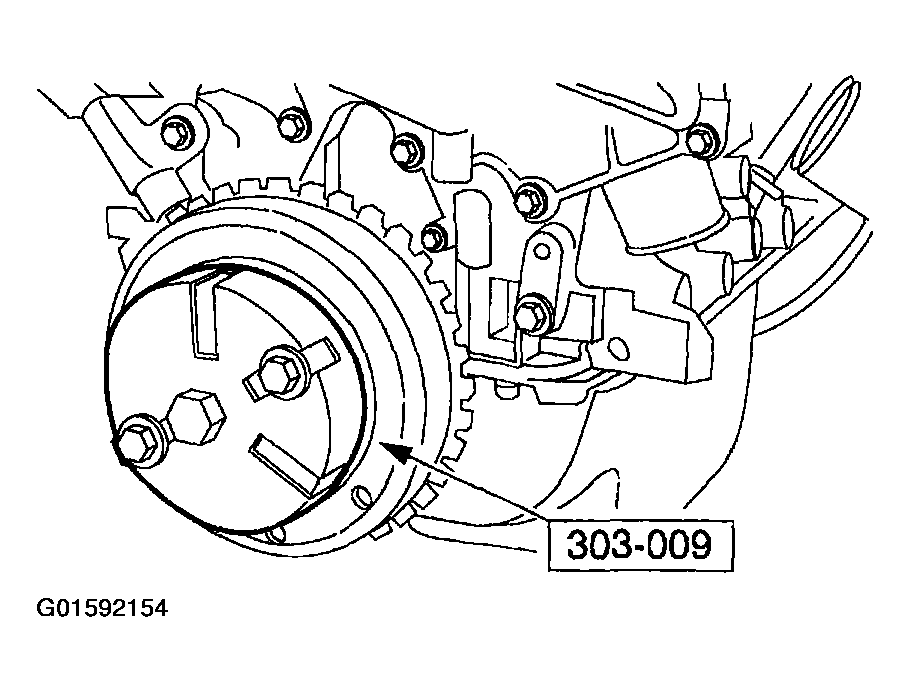

  8. Using the special tool, remove the crankshaft damper.
    Fig 4: Removing Crankshaft Damper By Using Special Tool
    G01592154Courtesy of FORD MOTOR CO.
