Crankshaft Main Bearings: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN .
  2. If necessary, remove the oil pump. For additional information, refer to OIL PUMP .
    3. CAUTION: The crankshaft main bearings must be inspected and replaced or new bearings installed one set at a time or engine damage may occur.

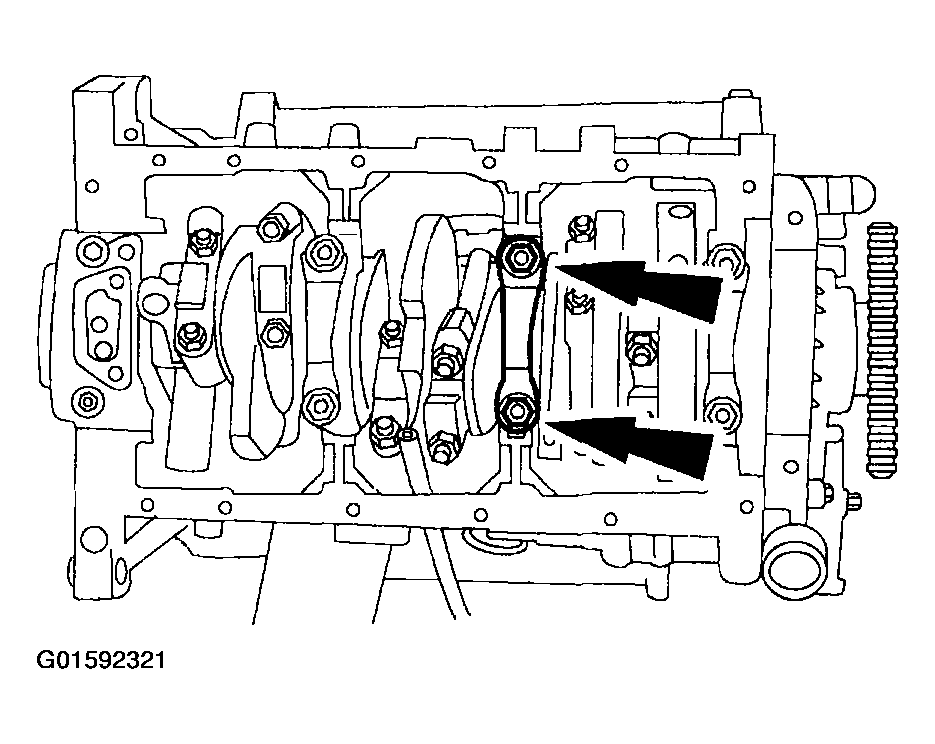

    Fig 1: Removing Crankshaft Main Bearing Cap
    G01592321Courtesy of FORD MOTOR CO.
  3. Remove one crankshaft main bearing cap.
  4. Remove the crankshaft main bearing.

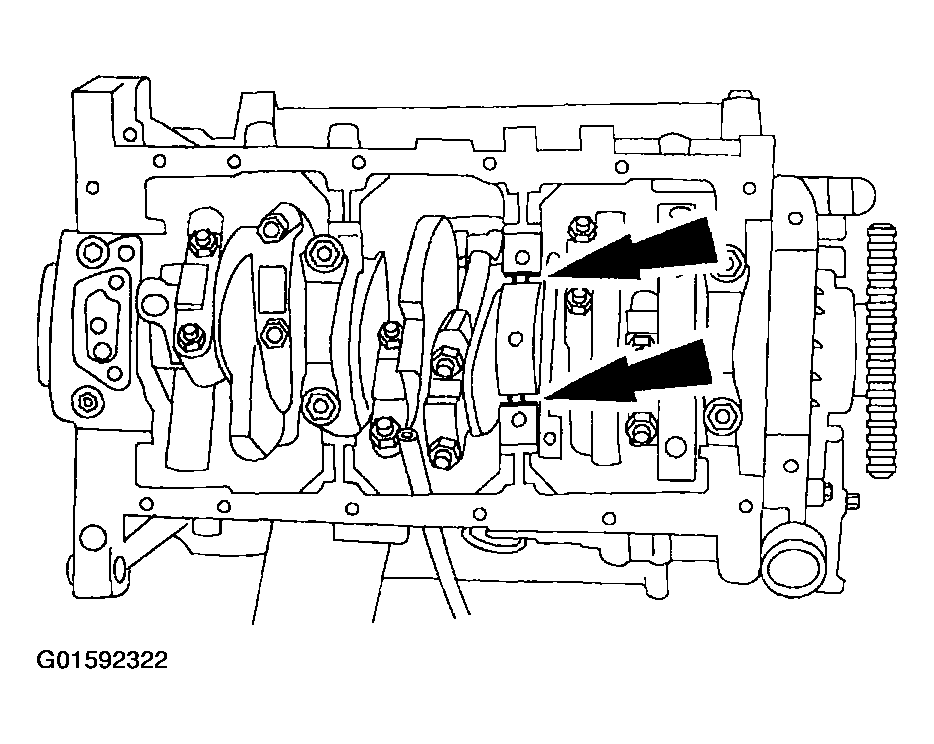

    Fig 2: Removing Crankshaft Main Bearing
    G01592322Courtesy of FORD MOTOR CO.
