Crankshaft Main Bearings: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: The crankshaft main bearings are precision fit. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION for checking clearances or bearing selection.
    CAUTION: The crankshaft main bearings must be lubricated with clean engine oil.

    Install the crankshaft main bearing.

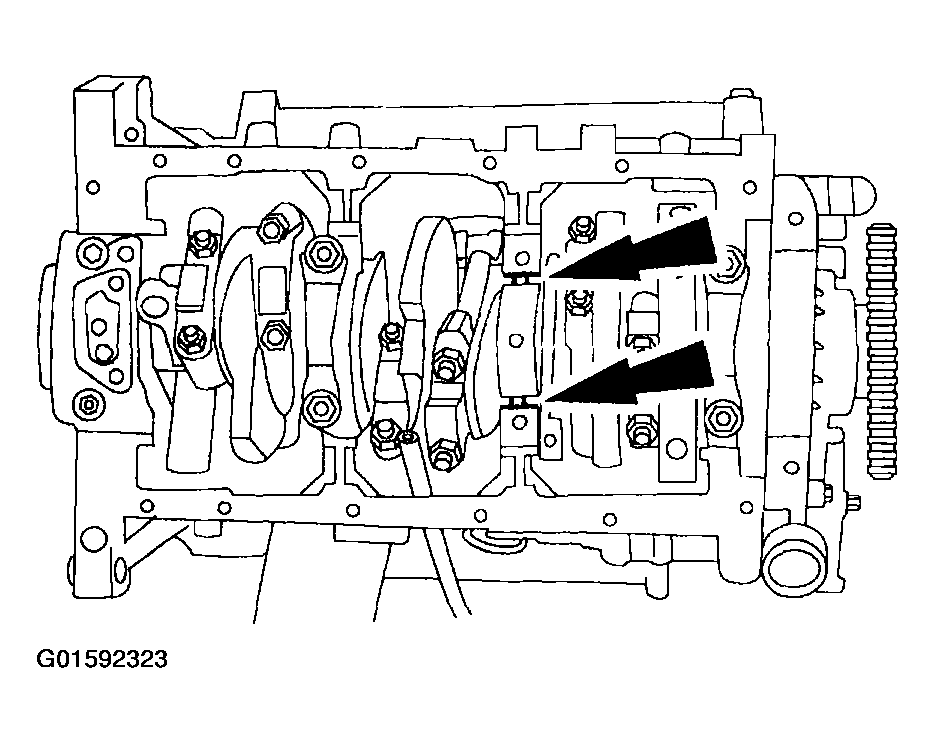

    Fig 1: Installing Crankshaft Main Bearing
    G01592323Courtesy of FORD MOTOR CO.
  2. Install the crankshaft main bearing cap.

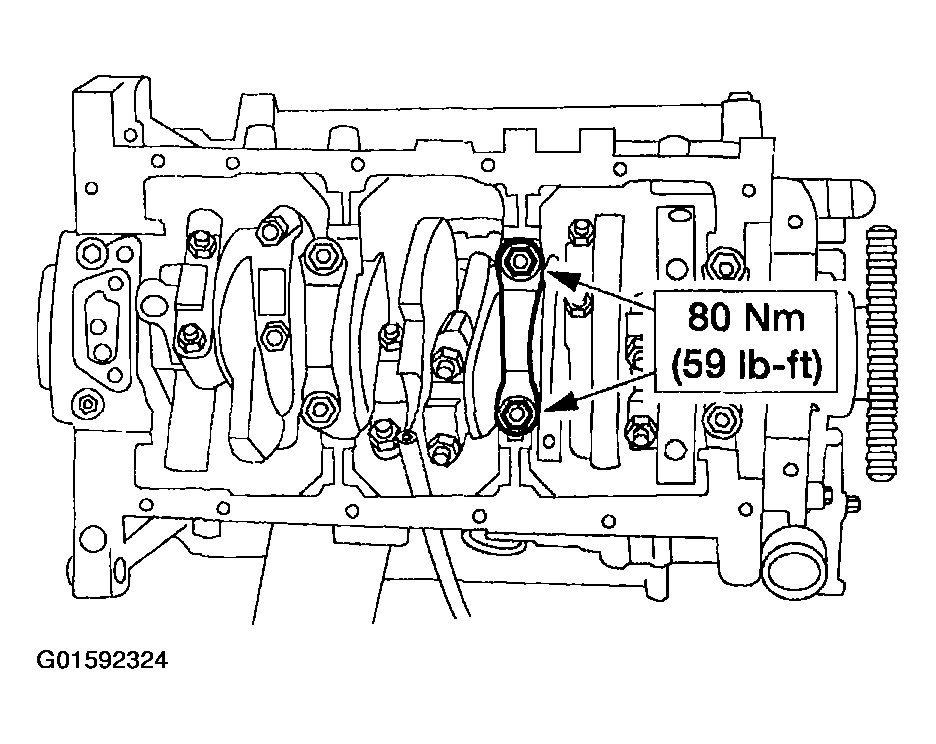

    Fig 2: Installing Crankshaft Main Bearing Cap
    G01592324Courtesy of FORD MOTOR CO.
  3. Repeat the procedure until all the crankshaft main bearings are inspected and replaced or new bearings are installed.
  4. If removed, install the oil pump. For additional information, refer to OIL PUMP .
  5. Install the oil pan. For additional information, refer to OIL PAN .
