Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the seal lip with clean engine oil.

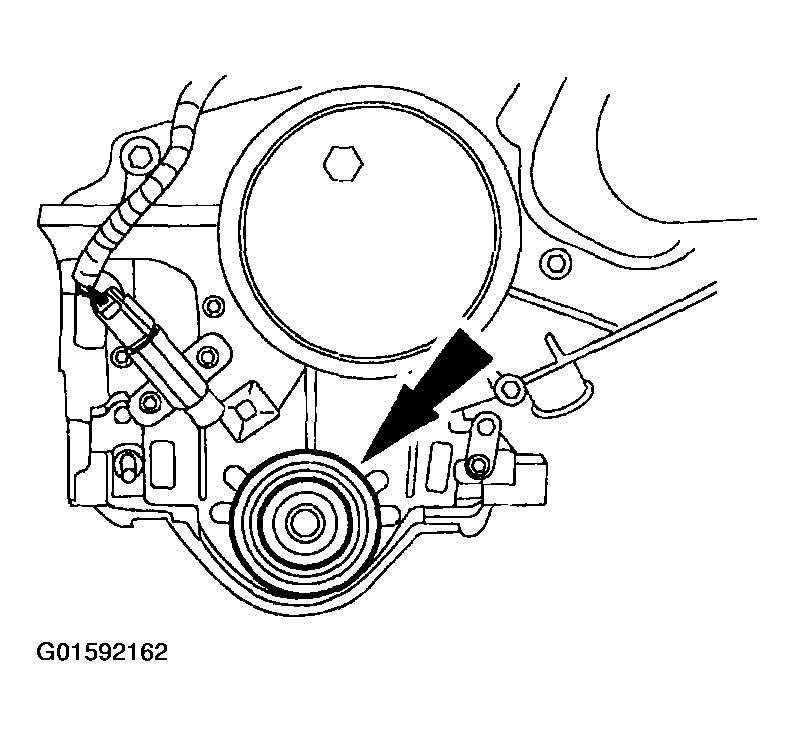

    Fig 1: Identifying Crankshaft Oil Seal
    G01592162Courtesy of FORD MOTOR CO.
  1. Using crankshaft vibration damper replacer, install the crankshaft oil seal.
  2. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
