Connecting Rod Bearings: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN .
  2. If necessary, remove the oil pump. For additional information, refer to OIL PUMP .
    3. CAUTION: The connecting rod bearing caps and the connecting rods are a matched set. Installing the incorrect connecting rod bearing cap on a connecting rod may result in engine damage.

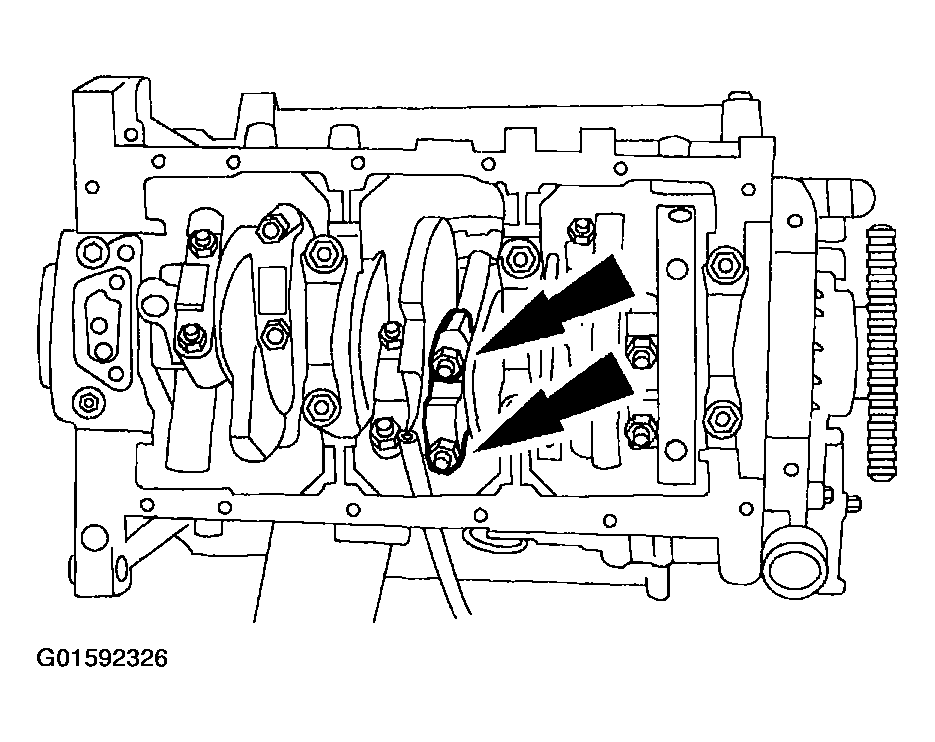

    Fig 1: Removing Connecting Rod Bearing Cap
    G01592326Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod bearing cap.
  4. Remove the connecting rod bearings.

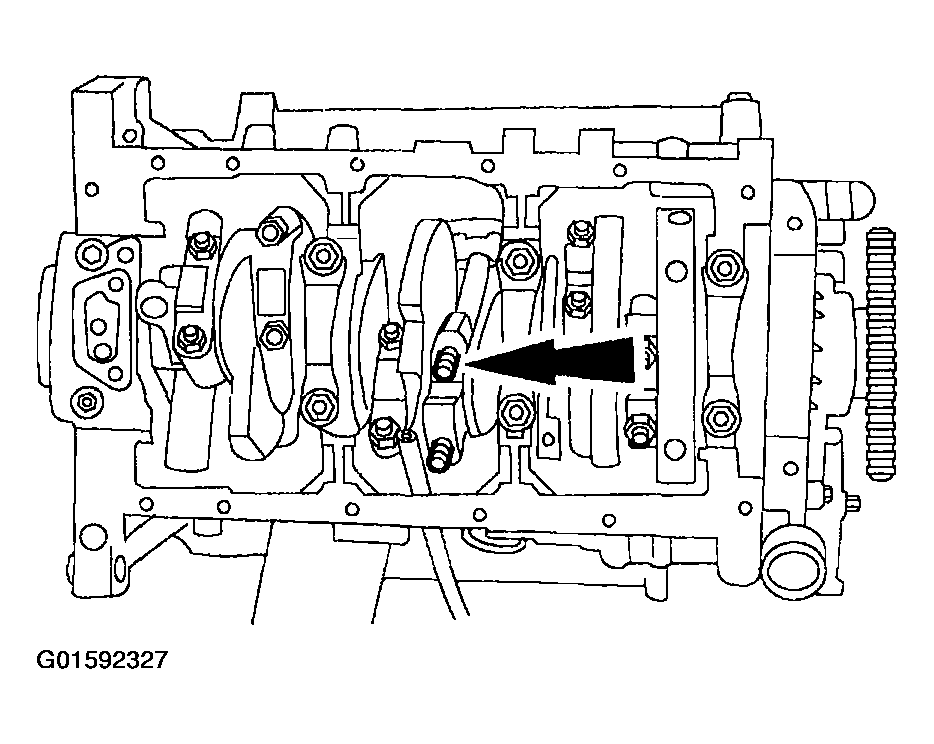

    Fig 2: Removing Connecting Rod Bearings
    G01592327Courtesy of FORD MOTOR CO.
