Connecting Rod Bearings: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: The connecting rod bearings are precision fit. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION for checking clearances or bearing selection.
    CAUTION: The connecting rod bearings must be lubricated with clean engine oil prior to installation or damage to the connecting rod bearing may occur.

    Install the connecting rod bearings.

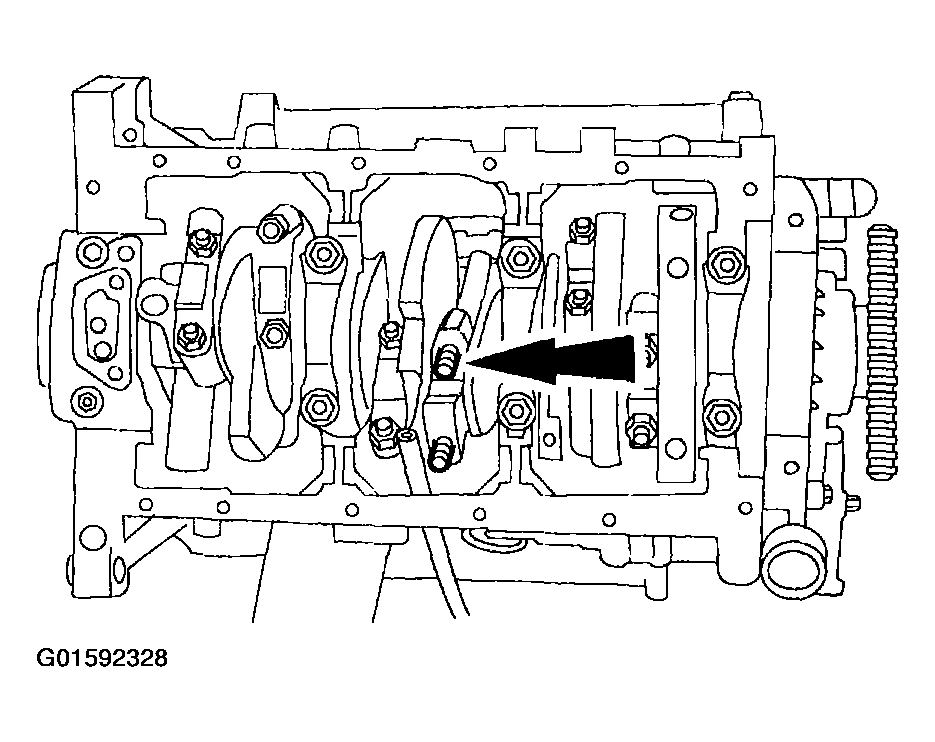

    Fig 1: Installing Connecting Rod Bearings
    G01592328Courtesy of FORD MOTOR CO.
  2. Install the connecting rod bearing cap.

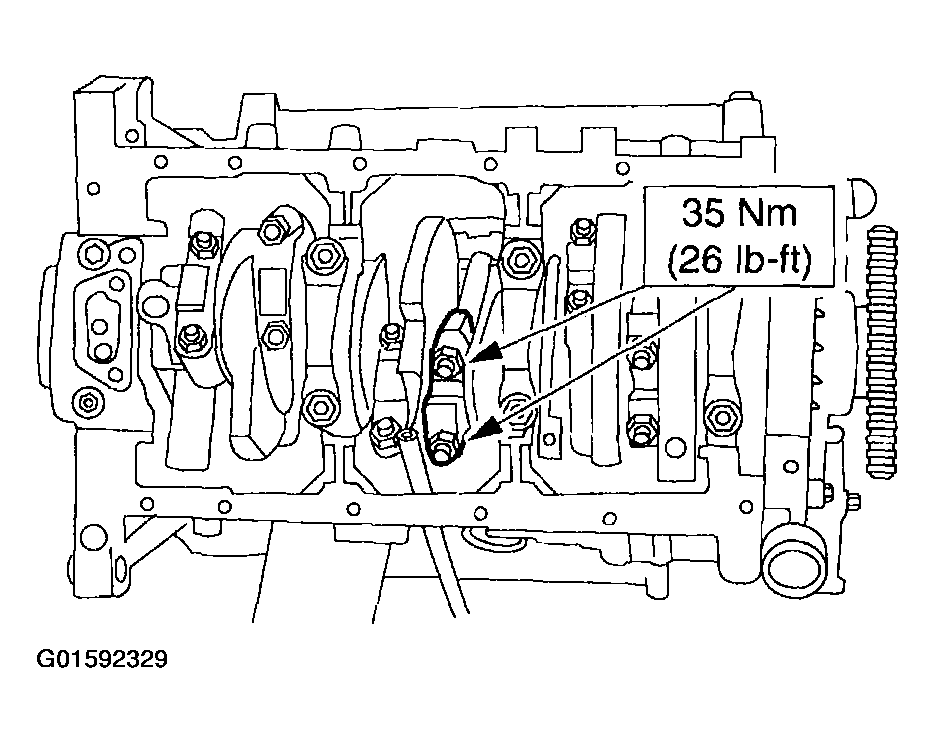

    Fig 2: Installing Connecting Rod Bearing Cap
    G01592329Courtesy of FORD MOTOR CO.
  3. Repeat the procedure until all the connecting rod bearings are replaced.
  4. If removed, install the oil pump. For additional information, refer to OIL PUMP .
  5. Install the oil pan. For additional information, refer to OIL PAN .
