Using the special tool, compress the valve spring (6513) and remove the valve spring retainers (6518).

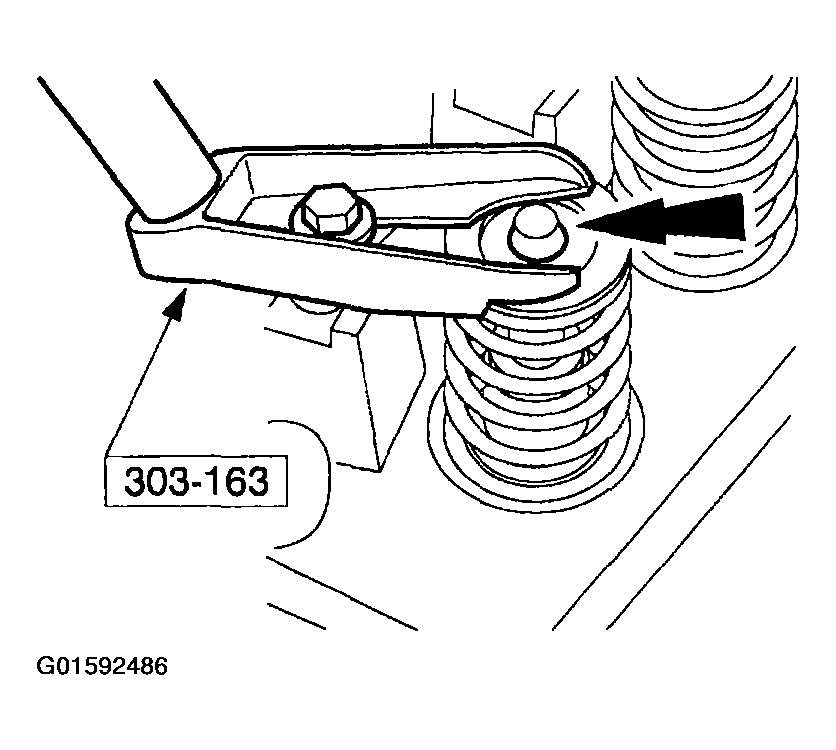

Fig 1: Compressing Valve Spring And Removing Valve Spring Retainers
Courtesy of FORD MOTOR CO.
Remove the valve springs (6513).
- For component tests, refer to ENGINE SYSTEM-GENERAL INFORMATION .

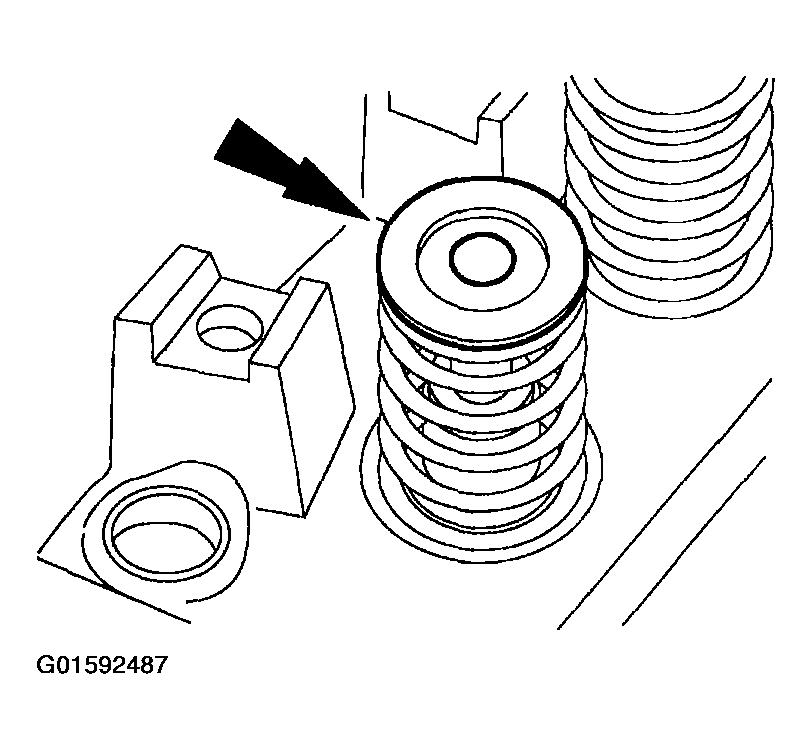

Fig 2: Removing Valve Springs
Courtesy of FORD MOTOR CO.
Remove the valve seal (6A517).

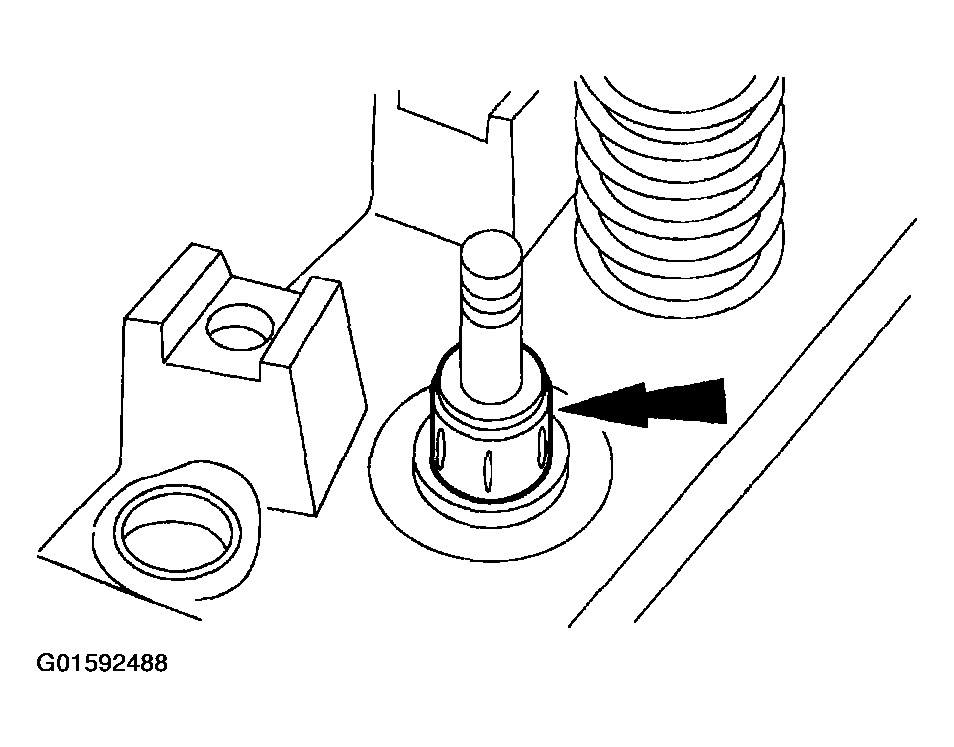

Fig 3: Removing Valve Seal
Courtesy of FORD MOTOR CO.
Remove the valve (6507/6505).
- For component tests, refer to ENGINE SYSTEM-GENERAL INFORMATION .

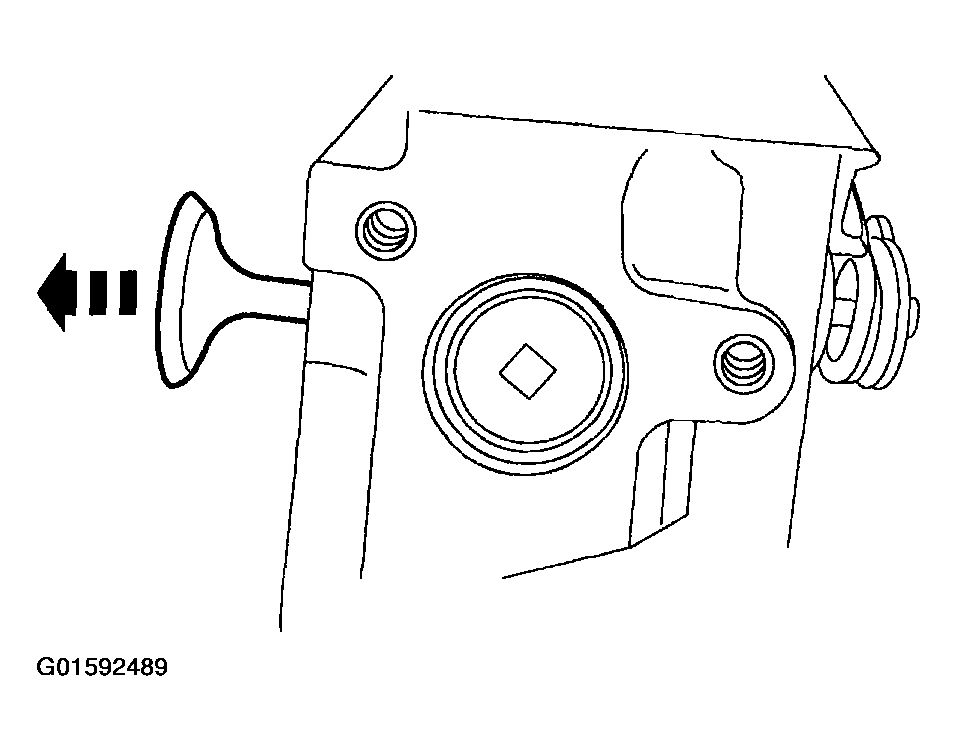

Fig 4: Removing Valve
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
- Lubricate the valve stem and the valve seal with clean engine oil.
