Major Upper Engine Components

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

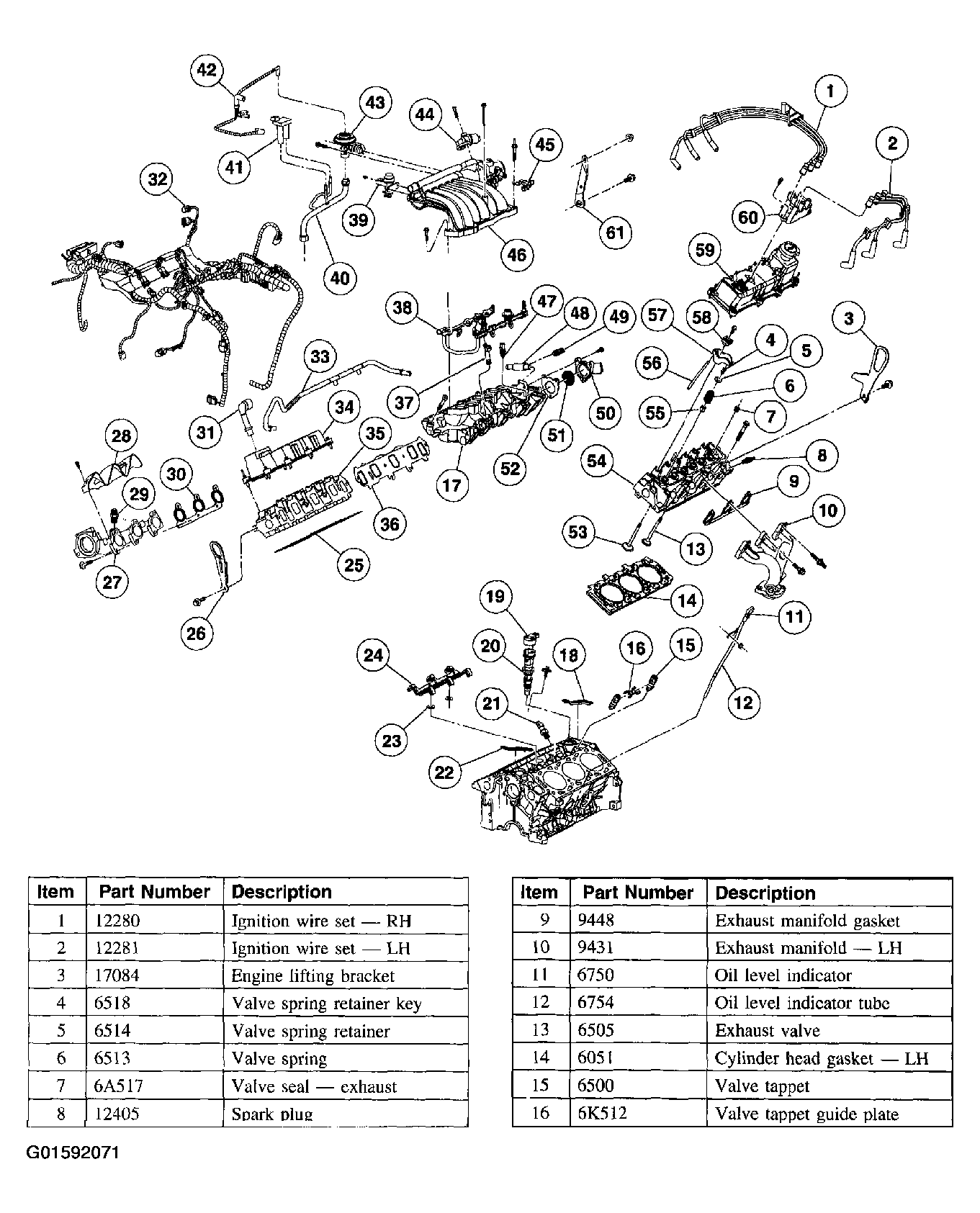

Fig 1: Locating Major Upper Engine Components
G01592071Courtesy of FORD MOTOR CO.

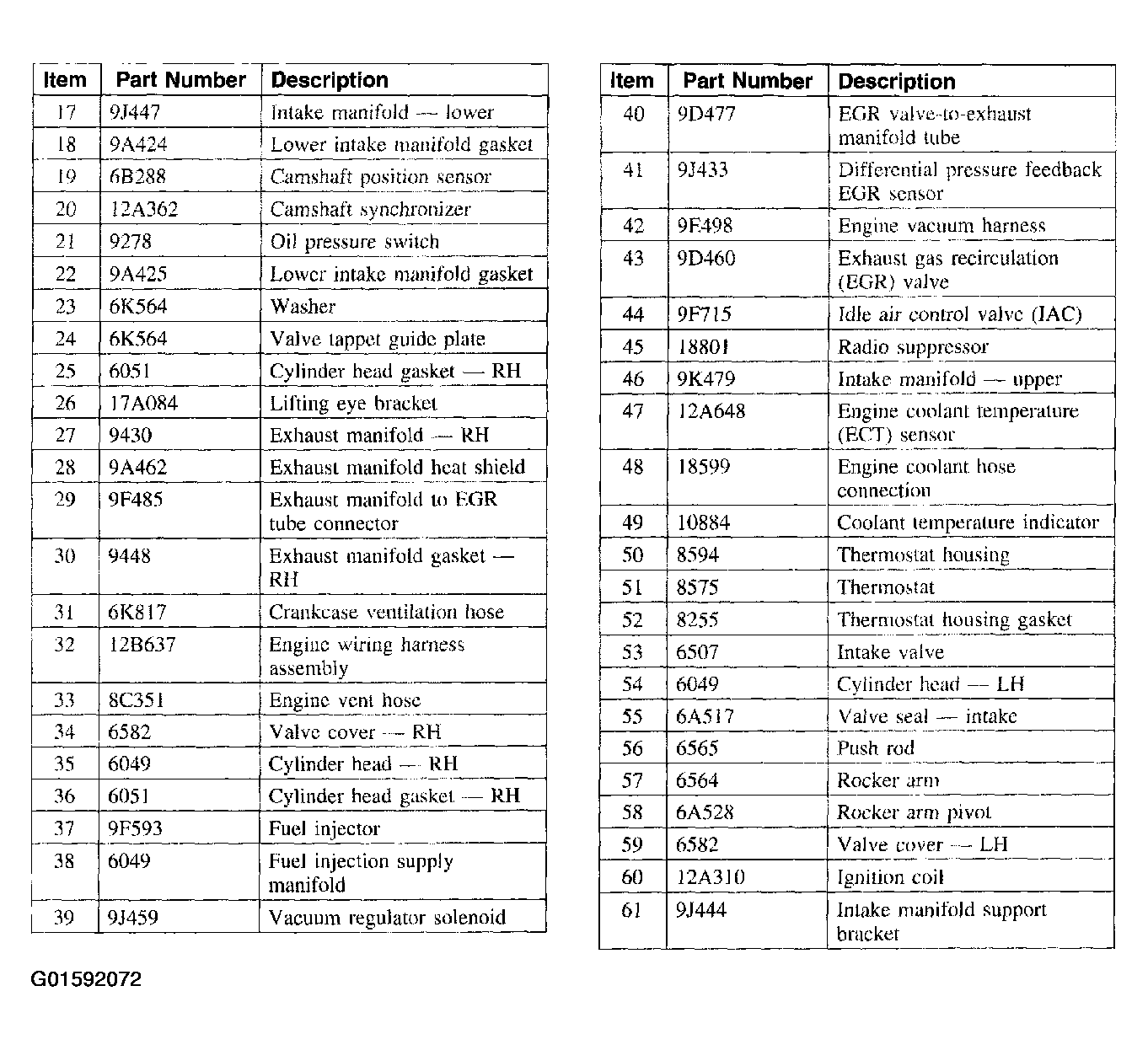

Fig 2: Identifying Parts Description Table
G01592072Courtesy of FORD MOTOR CO.
