Cylinder Block - Lower

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

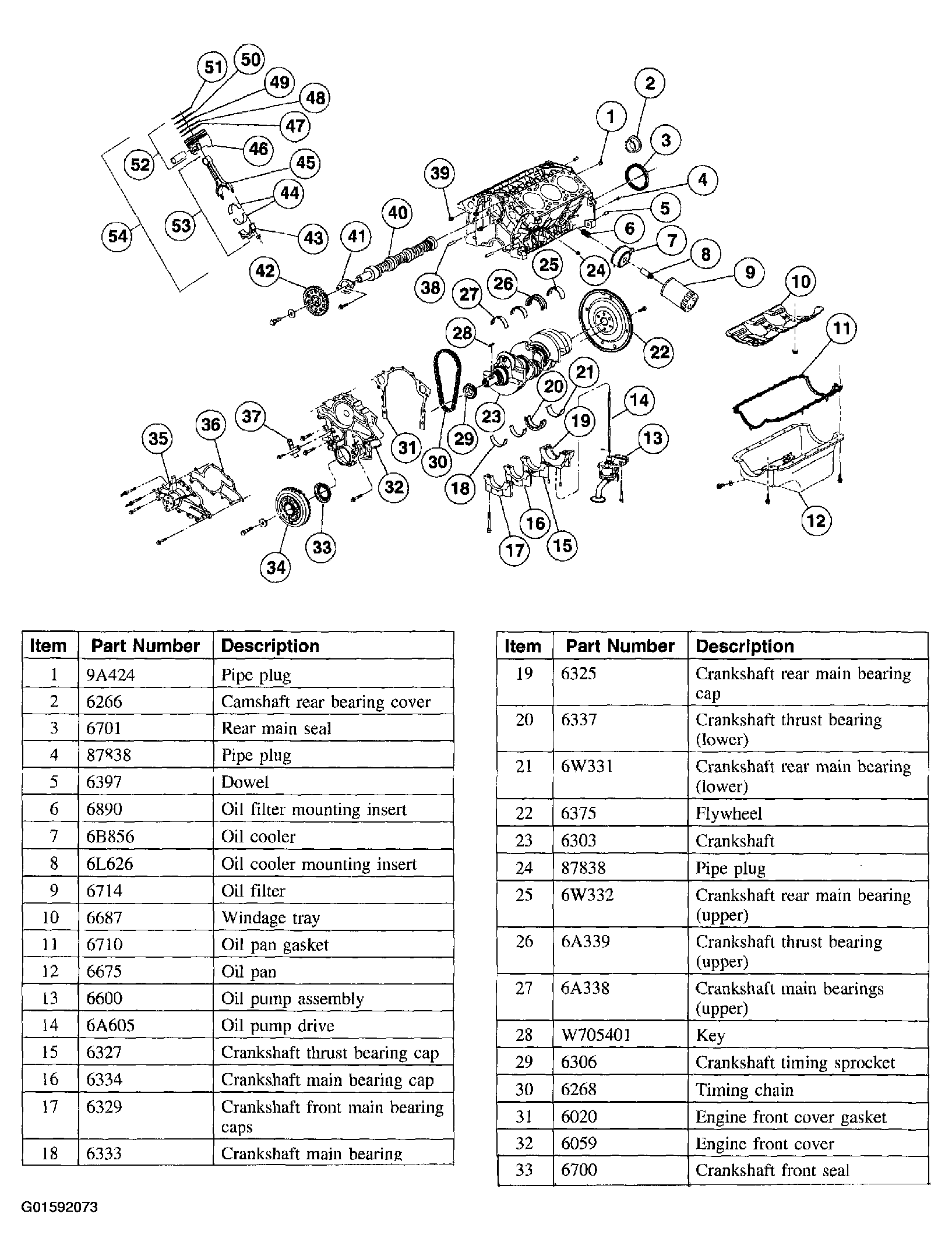

Fig 1: Locating Components Of Cylinder Block - Lower
G01592073Courtesy of FORD MOTOR CO.

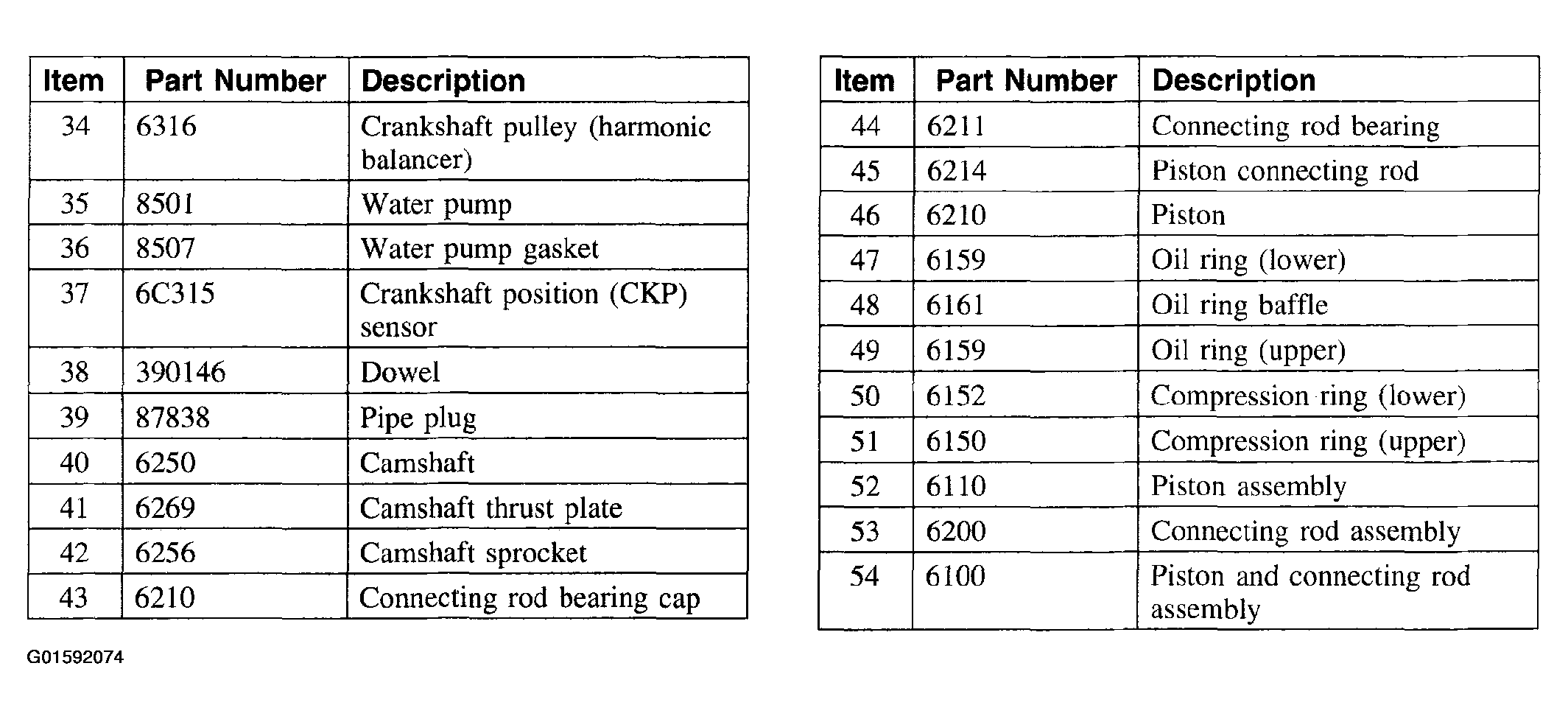

Fig 2: Identifying Parts Description Table
G01592074Courtesy of FORD MOTOR CO.
