Push rod engines

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the hydraulic valve tappet and roller for damage. If any damage is found, inspect the camshaft lobes and valves for damage.

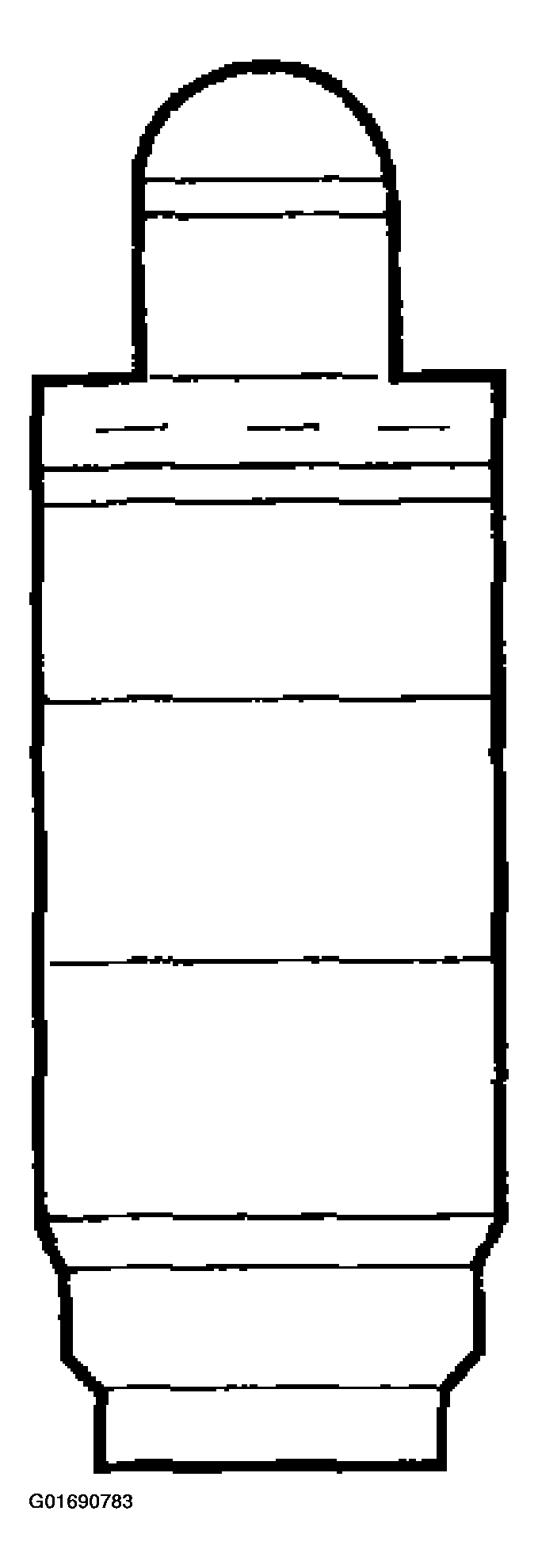

    Fig 1: Identifying OHC Engines
    G01690783Courtesy of FORD MOTOR CO.
