Camshaft End Play - OHC Engines

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tool
G01690738Courtesy of FORD MOTOR CO.
  1. Remove the roller followers. Refer to the appropriate ENGINE article for the procedure.
  2. Use a Dial Indicator Gauge with Holding Fixture to measure camshaft end play.
  3. Position the camshaft to the rear of the cylinder head.
  4. Zero the indicator.
  5. Move the camshaft to the front of the cylinder head. Note and record the camshaft end play.
    • If camshaft end play exceeds specifications, install new camshaft and recheck end play. Refer to the appropriate ENGINE article for the procedure.
    • If camshaft end play exceeds specification after camshaft installation, install a new cylinder head. Refer to the appropriate ENGINE article for the procedure.

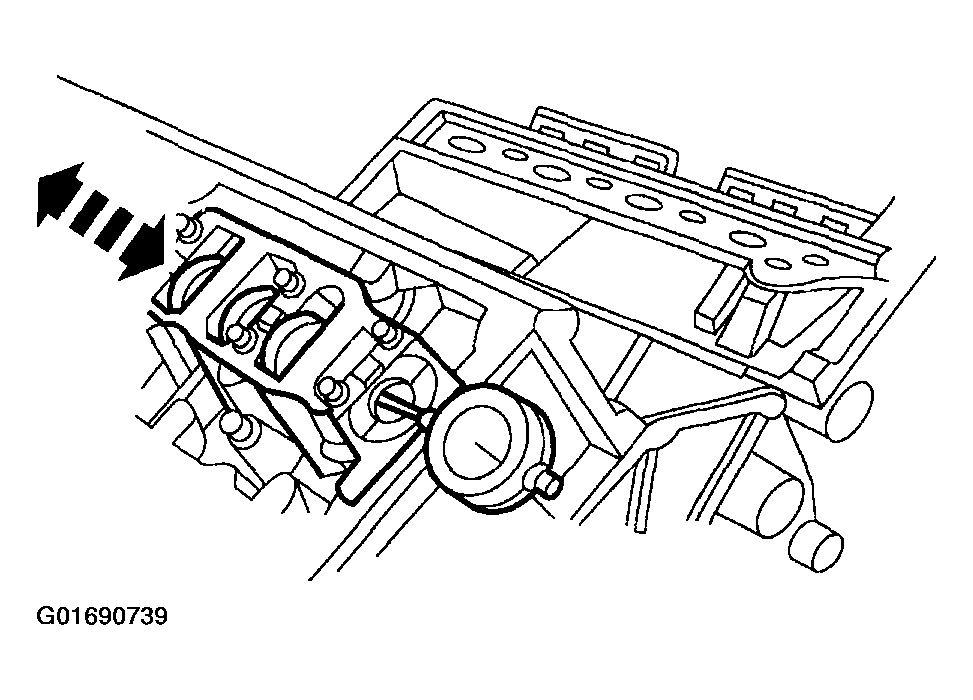

    Fig 2: Measuring Camshaft End Play By Using A Dial Indicator Gauge
    G01690739Courtesy of FORD MOTOR CO.
