Torque Specifications

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

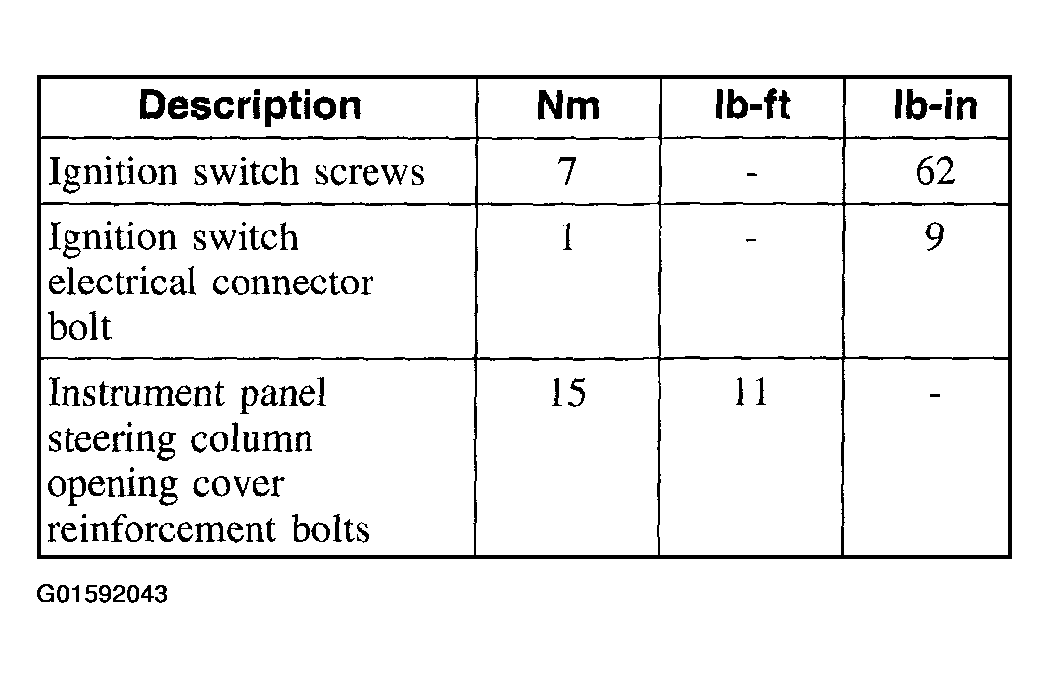

Fig 1: Steering Column Switches Torque Specification (1 Of 2)
G01592043Courtesy of FORD MOTOR CO.
Fig 2: Steering Column Switches Torque Specification (2 Of 2)
G01592044Courtesy of FORD MOTOR CO.
