Pinpoint Test E: No Power In Run

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

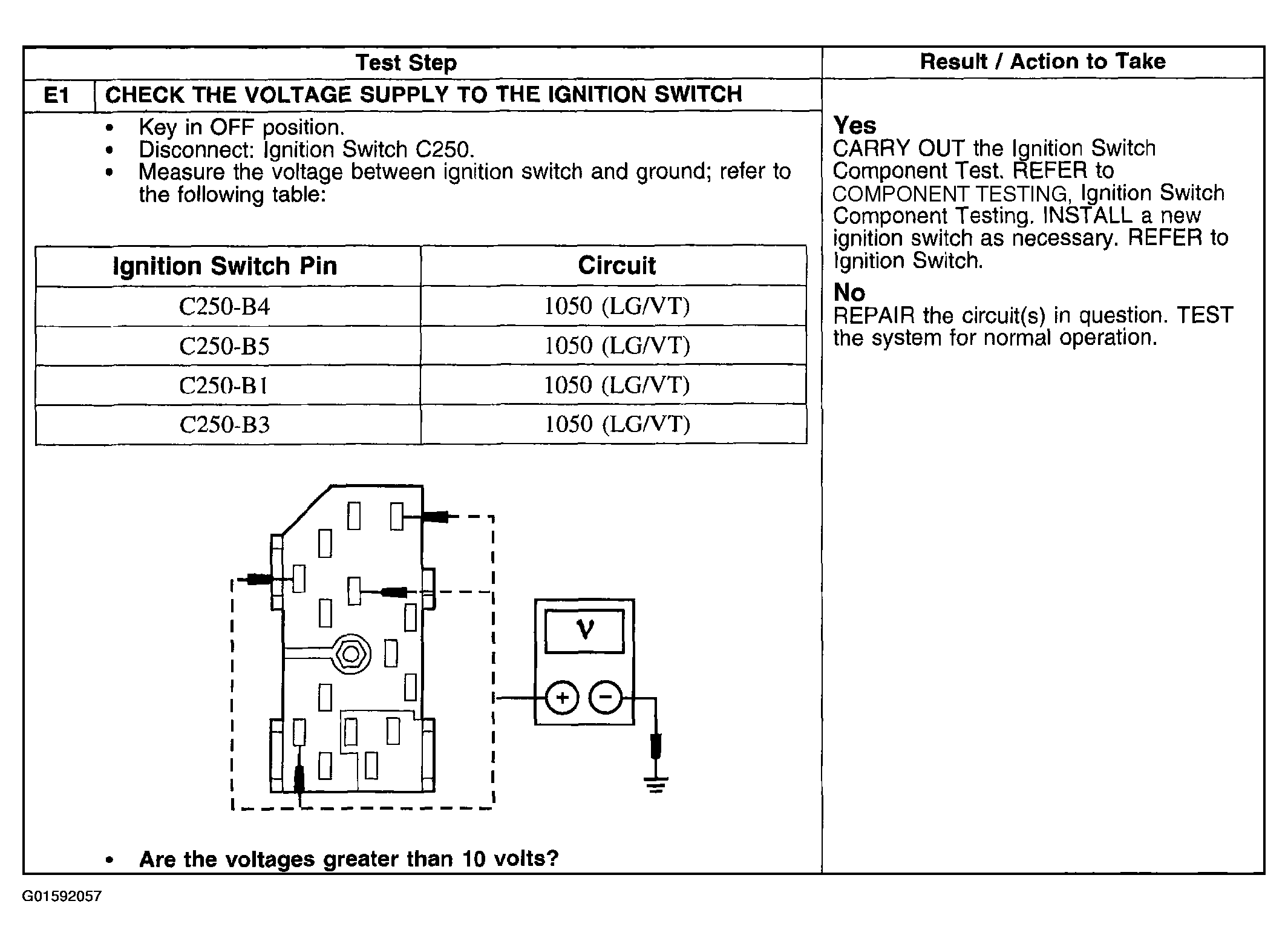

Fig 1: Pinpoint Test E: No Power In Run (Steps E1)
G01592057Courtesy of FORD MOTOR CO.
