Pinpoint Test C: The Ignition Switch Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

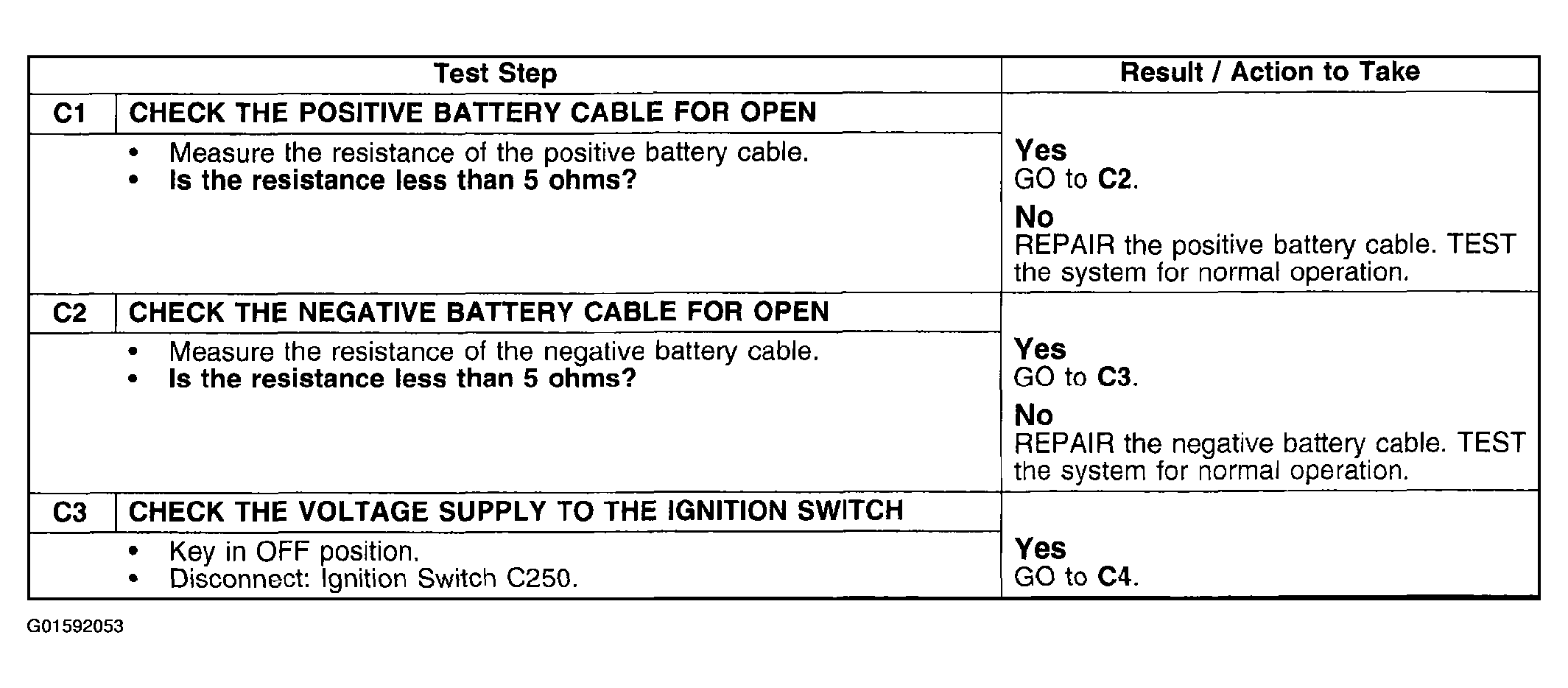

Fig 1: Pinpoint Test C: Ignition Switch Inoperative (Steps C1-C3)

Courtesy of FORD MOTOR CO.

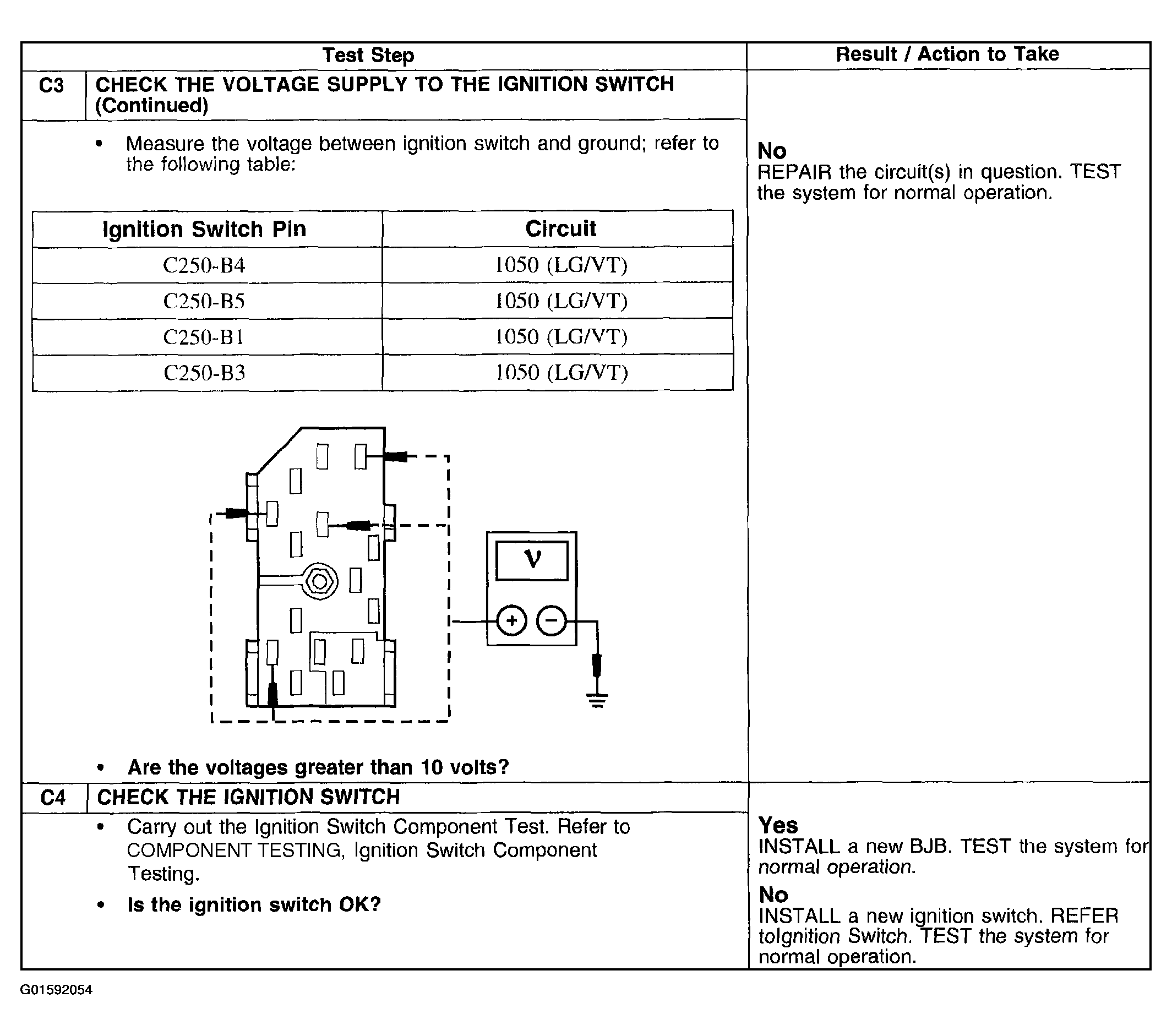

Fig 2: Pinpoint Test C: Ignition Switch Inoperative (Steps C3 Continued-C4)

Courtesy of FORD MOTOR CO.
