Pinpoint Test A: DTC B1359: Ignition Run/Acc Circuit Failure

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The DTC will appear if the connection between the GEM and CJB is open on this pin. This pin open will cause the following symptoms: no power window operation, no windshield wiper operation and no heated backlite operation.

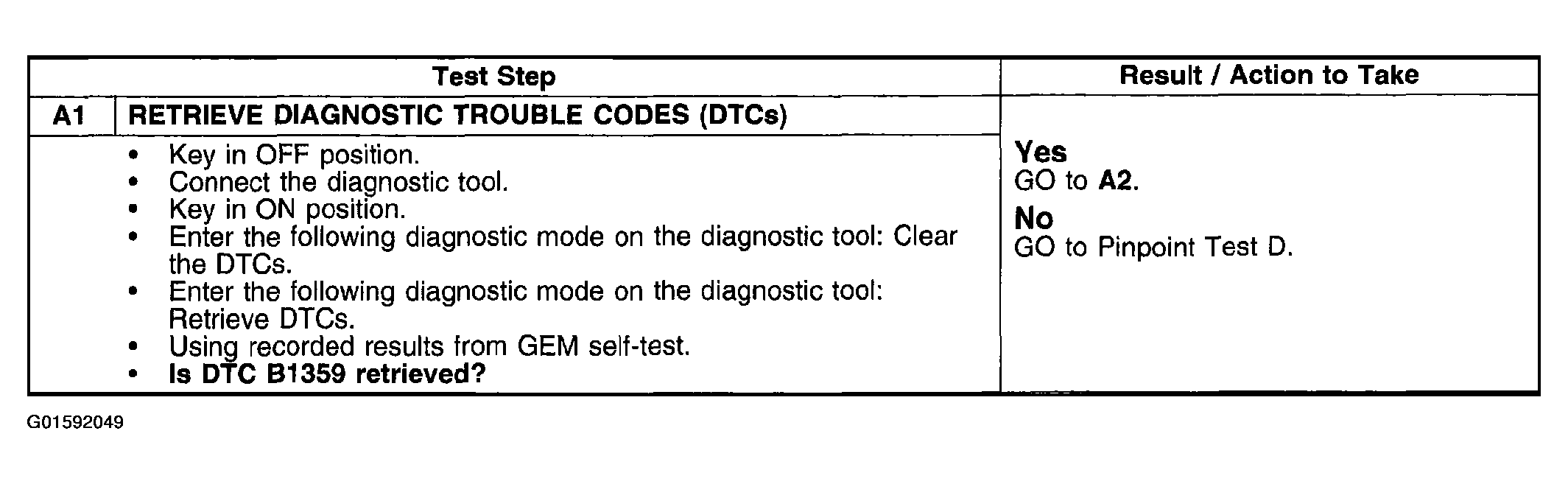

Fig 1: Pinpoint Test A: DTC B1359 Ignition Run/ACC Circuit Failure (Steps A1)

Courtesy of FORD MOTOR CO.

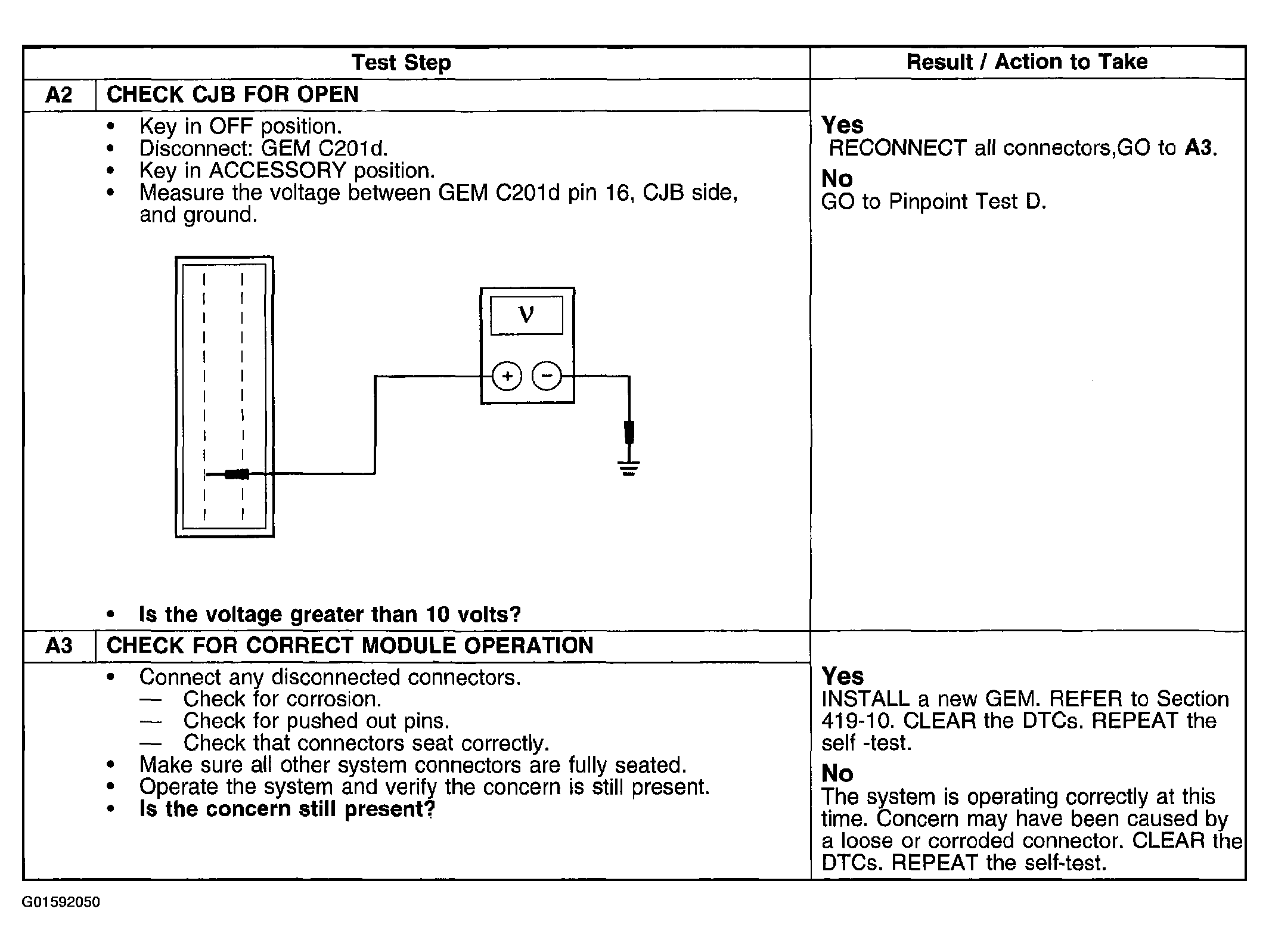

Fig 2: Pinpoint Test A: DTC B1359 Ignition Run/ACC Circuit Failure (Steps A2-A3)

Courtesy of FORD MOTOR CO.
