Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drive belt (8620). For additional information, refer to ACCESSORY DRIVE .
Disconnect the degas bottle coolant return hose (8W005).
- Block the hose to prevent coolant loss.
Fig 1: Disconnecting Degas Bottle Coolant Return Hose
Courtesy of FORD MOTOR CO.
Using the special tool, remove the power steering pump pulley (3A733).

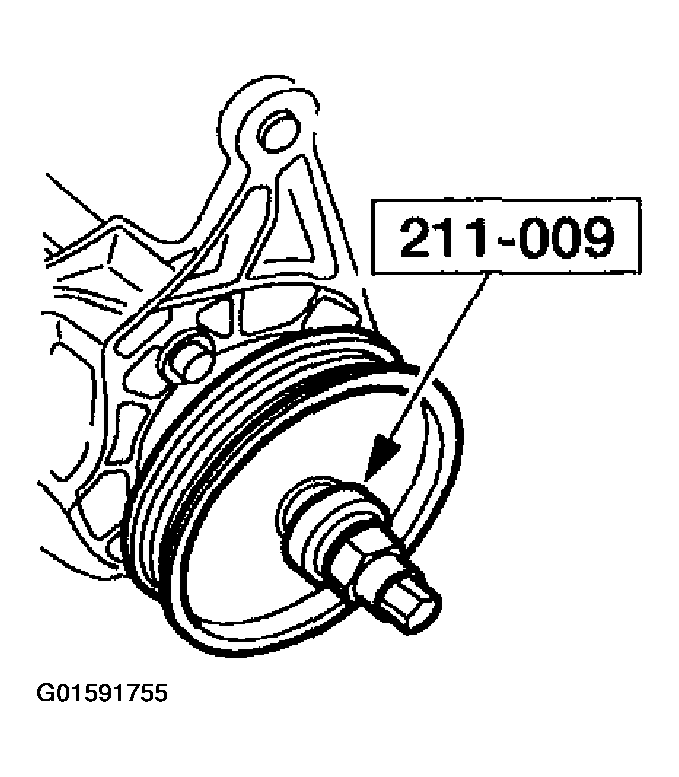

Fig 2: Removing Power Steering Pump Pulley
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

NOTE: The pulley must be installed within 0.25 mm (0.010 in) flush with the power steering pump shaft.

Fig 3: Installing Power Steering Pump Pulley

Courtesy of FORD MOTOR CO.

Using the special tool, install the power steering pump pulley.
