Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the pump pulley. For additional information, refer to POWER STEERING PUMP PULLEY-CIII .

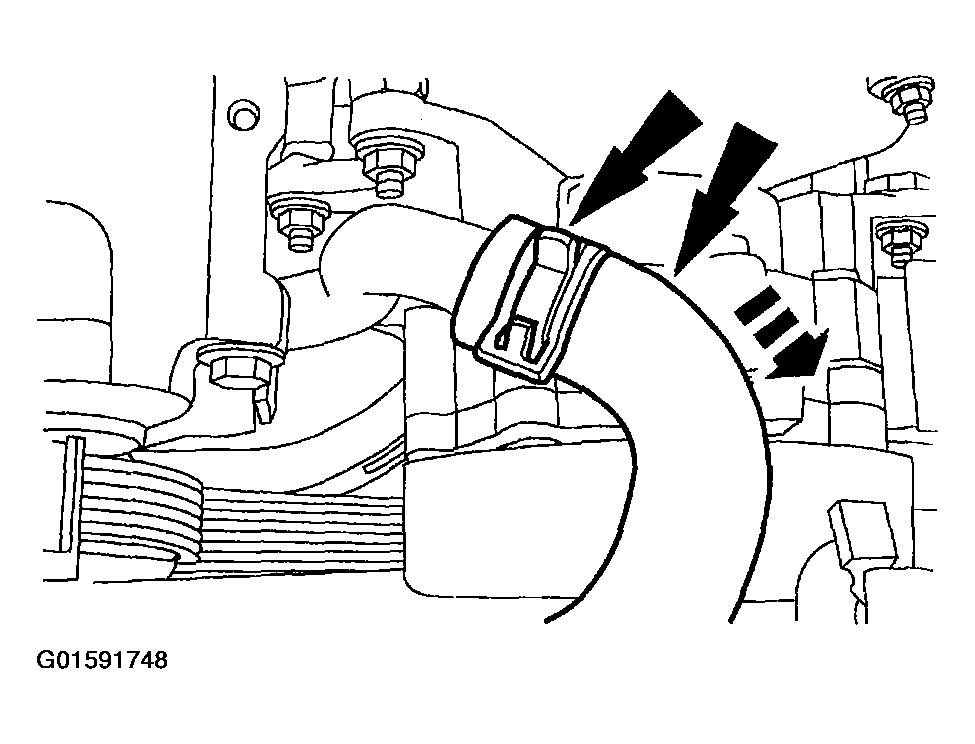

Loosen the clamp and disconnect the power steering reservoir-to-pump hose (3E525).

Fig 1: Loosening Clamp And Disconnecting Power Steering Reservoir-To-Pump Hose
Courtesy of FORD MOTOR CO.

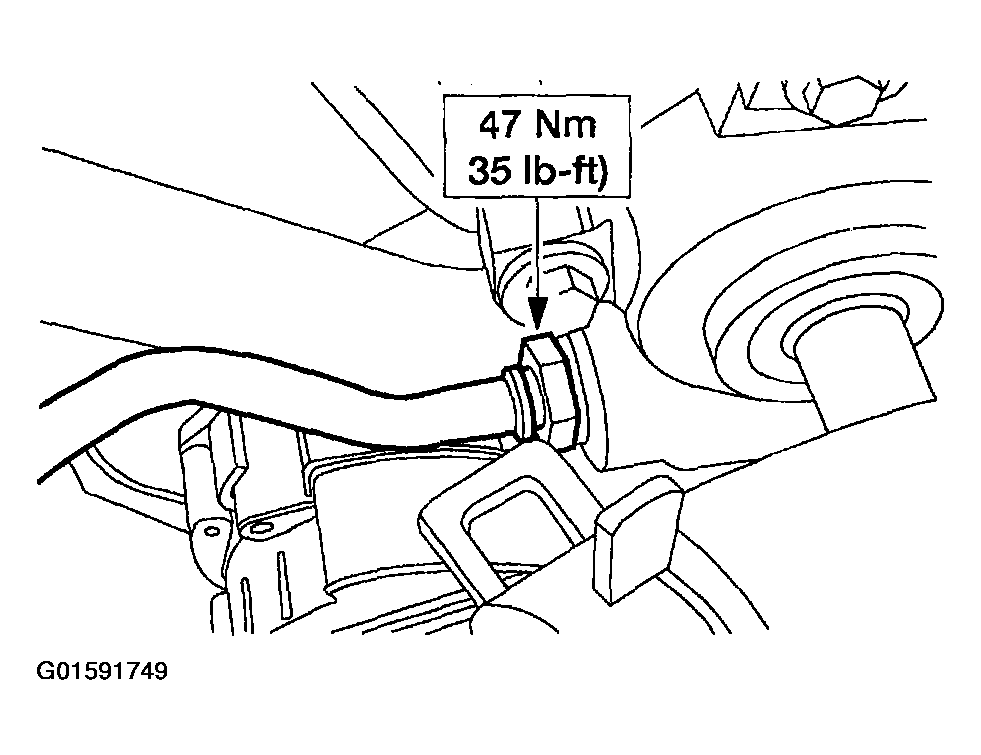

Loosen the fitting and disconnect the power steering pressure hose (3A714).

Fig 2: Disconnecting Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.

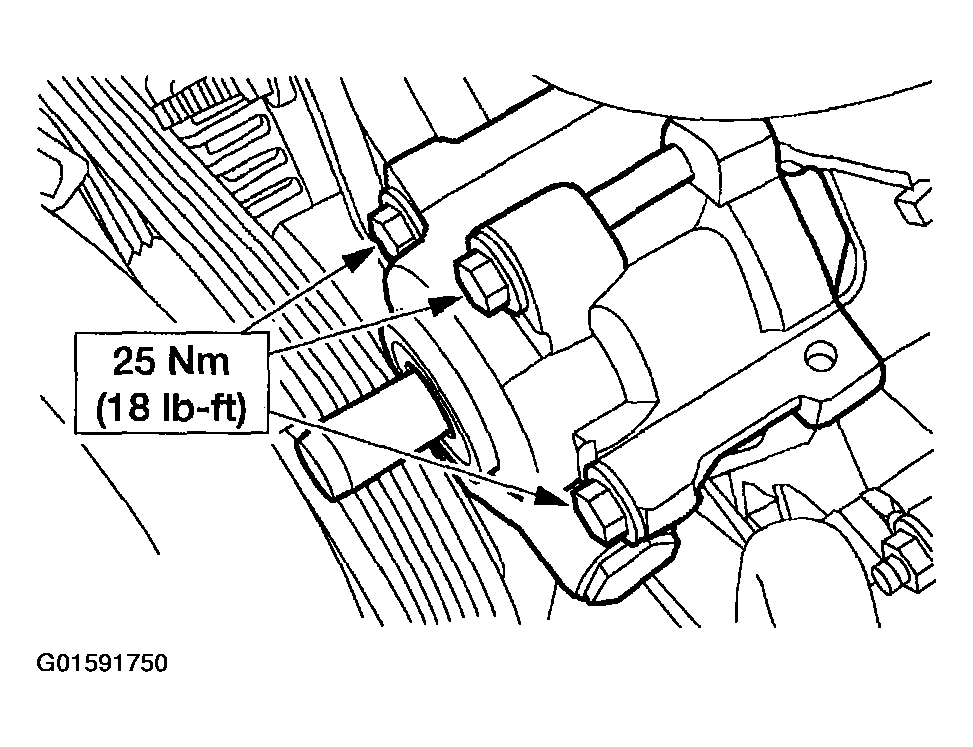

Remove the bolts and the power steering pump (3A674).

Fig 3: Removing Power Steering Pump Bolts
Courtesy of FORD MOTOR CO.
Using the special tool, install a new seal on the power steering pressure hose fitting.

Fig 4: Installing New Seal On Power Steering Pressure Hose Fitting
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and leak check the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
