Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drive belt (8620). For additional information, refer to ACCESSORY DRIVE .
Disconnect the degas bottle coolant return hose (8W005).
- Block the hose to prevent coolant loss.

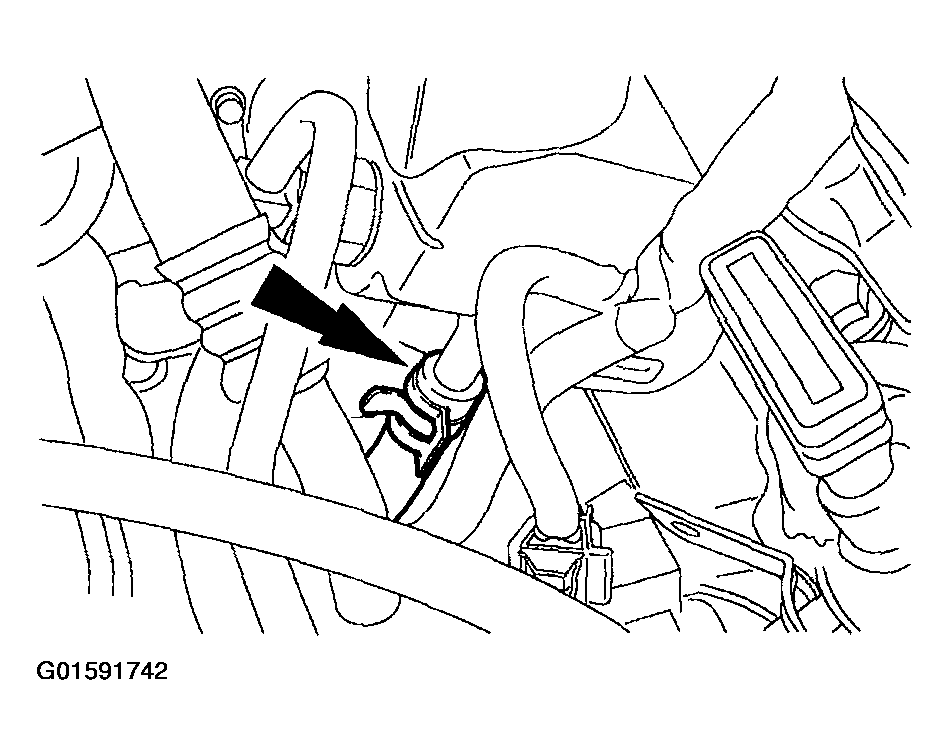

Fig 1: Disconnecting Degas Bottle Coolant Return Hose
Courtesy of FORD MOTOR CO.
Loosen the fitting and disconnect the power steering pressure hose.

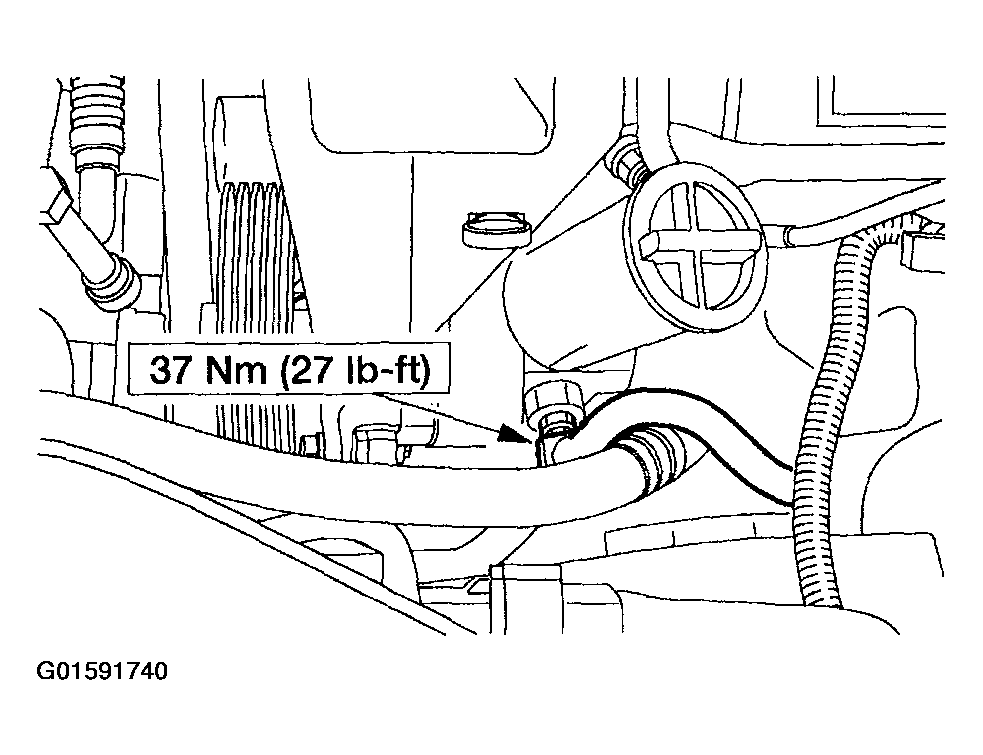

Fig 2: Disconnecting Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

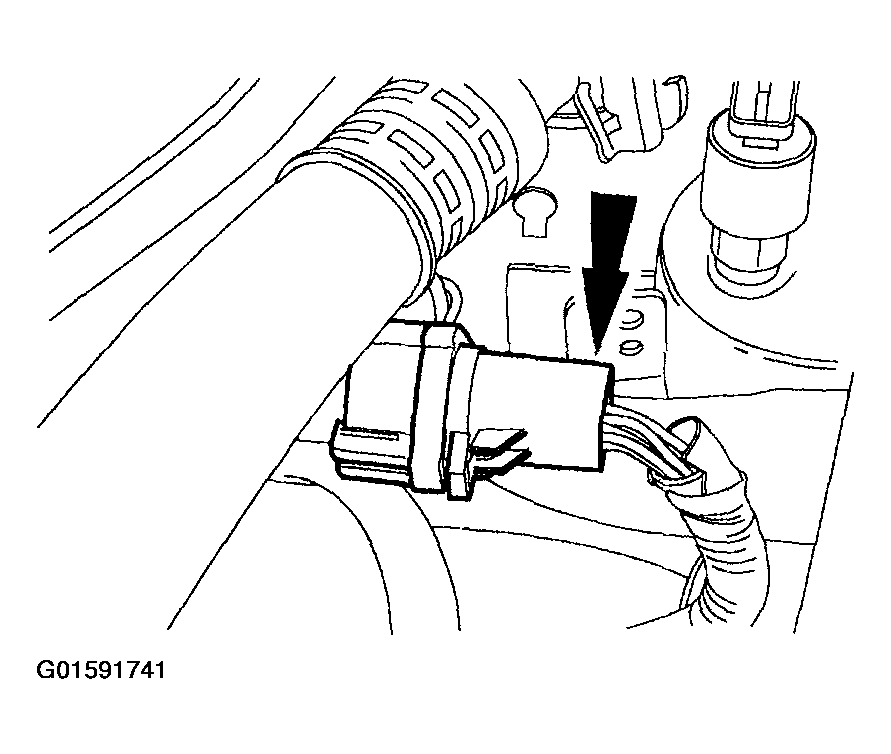

Fig 3: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the power steering return line.

Fig 4: Disconnecting Power Steering Return Line
Courtesy of FORD MOTOR CO.
Using the special tool, remove the power steering pump pulley (3A733).

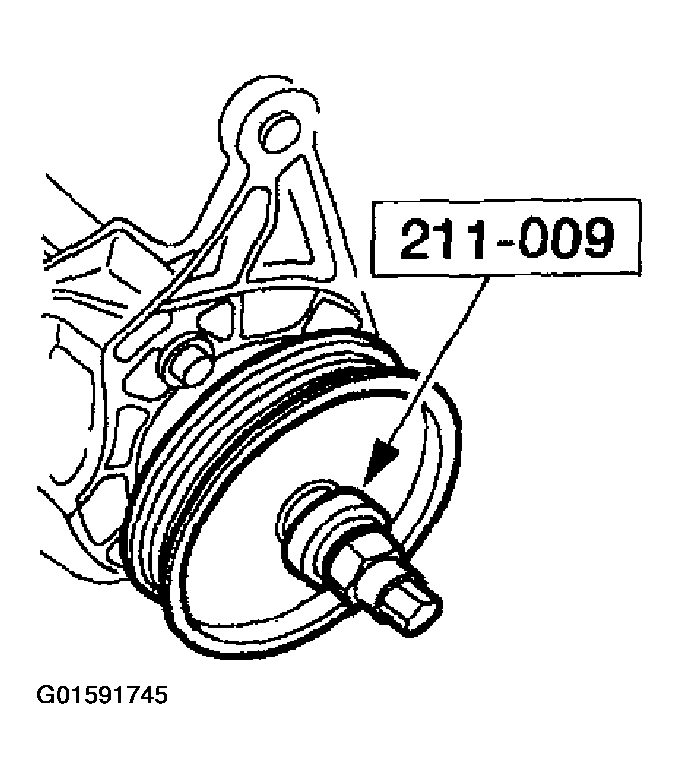

Fig 5: Removing Power Steering Pump Pulley
Courtesy of FORD MOTOR CO.
Remove the power steering pump mounting bolts and the pump.

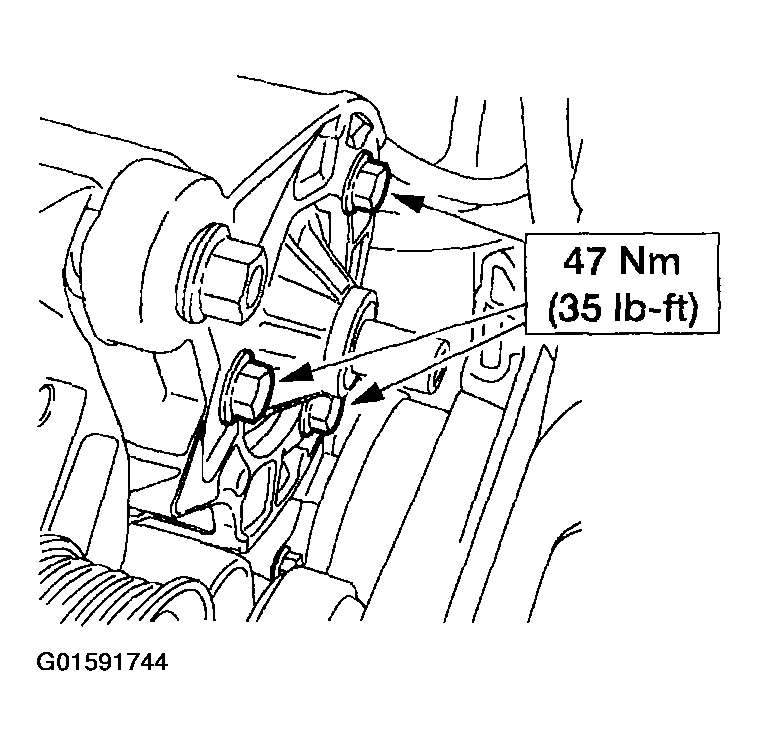

Fig 6: Removing Power Steering Pump Mounting Bolts And Pump
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

NOTE: The pulley must be installed within 0.25 mm (0.010 in) flush with the power steering pump shaft.

Fig 7: Installing Power Steering Pump Pulley

Courtesy of FORD MOTOR CO.

Using the special tool, install the power steering pump pulley.
Using the special tool, install a new seal on the power steering pressure hose fitting.

Fig 8: Installing New Seal On Power Steering Pressure Hose Fitting
Courtesy of FORD MOTOR CO.
Fill and leak check the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
