System View-3.0L 2V Engine (CII Pump)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

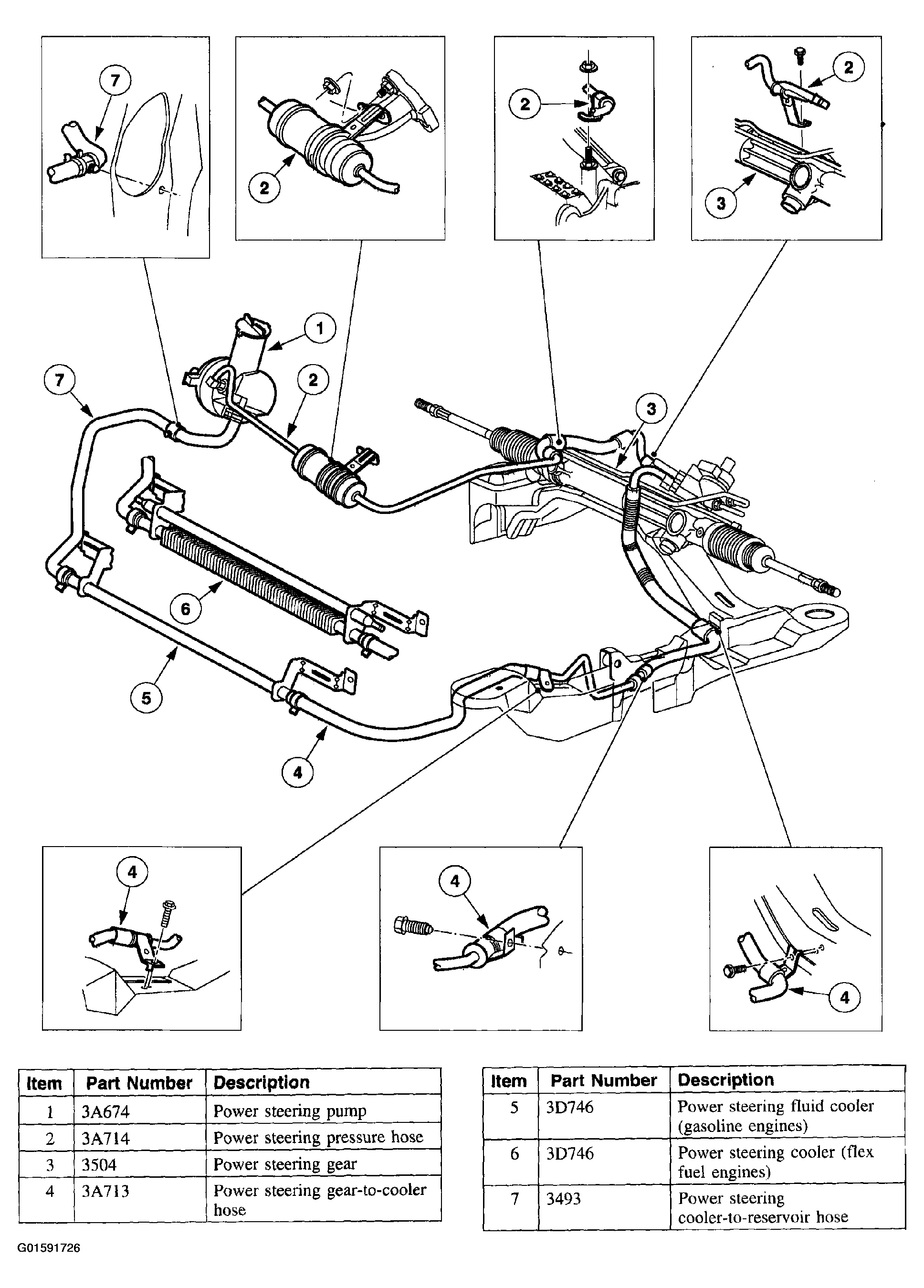

Fig 1: Identifying Power Steering Components (3.0L 2V Engine CII Pump)
G01591726Courtesy of FORD MOTOR CO.
