Pinpoint Test A: Drift Left Or Right

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

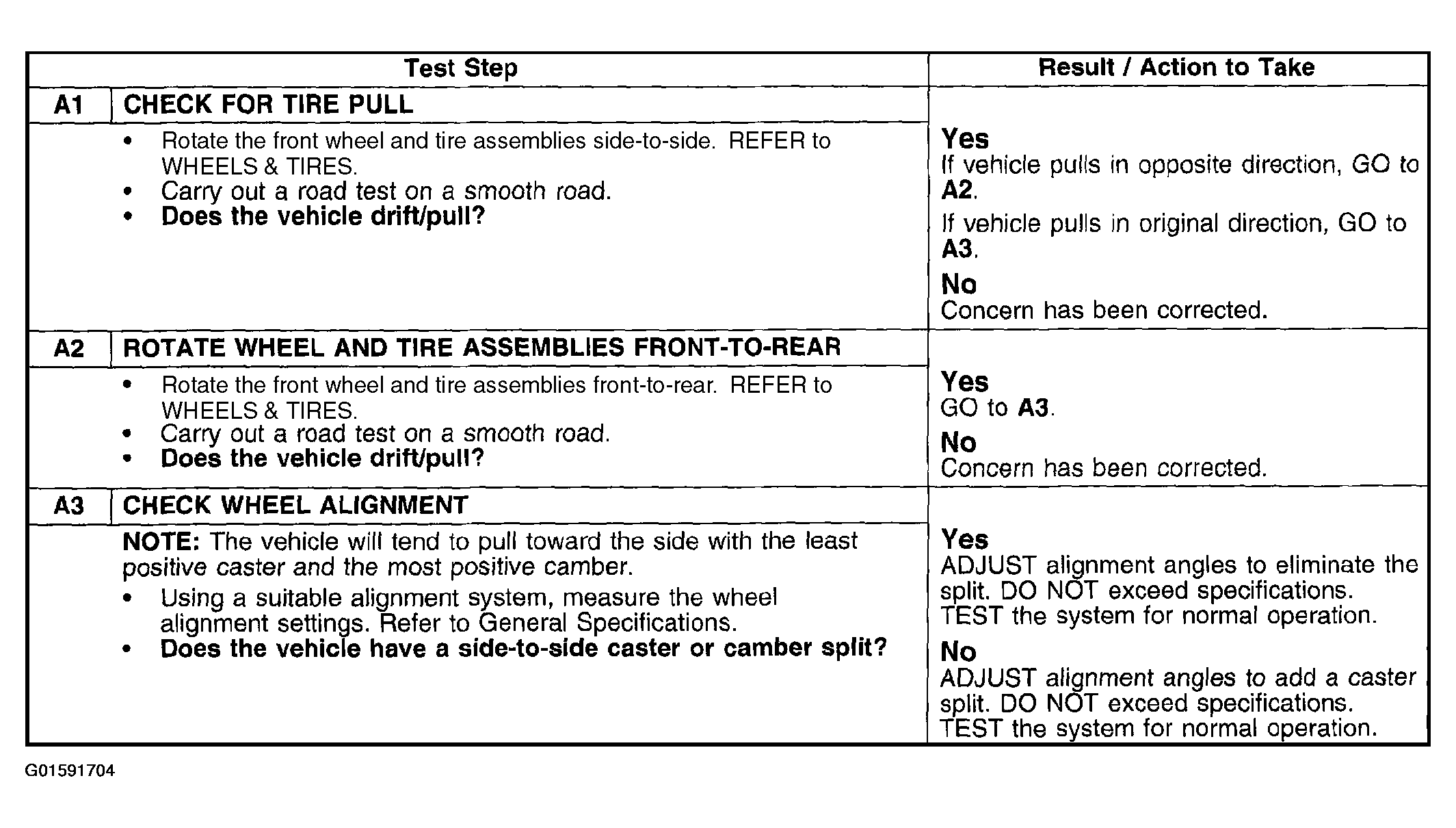

Fig 1: Pinpoint Test A: Drift Left Or Right (Steps A1-A3)
G01591704Courtesy of FORD MOTOR CO.
