System View - 3.0L 4V Engine (CIII Pump)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

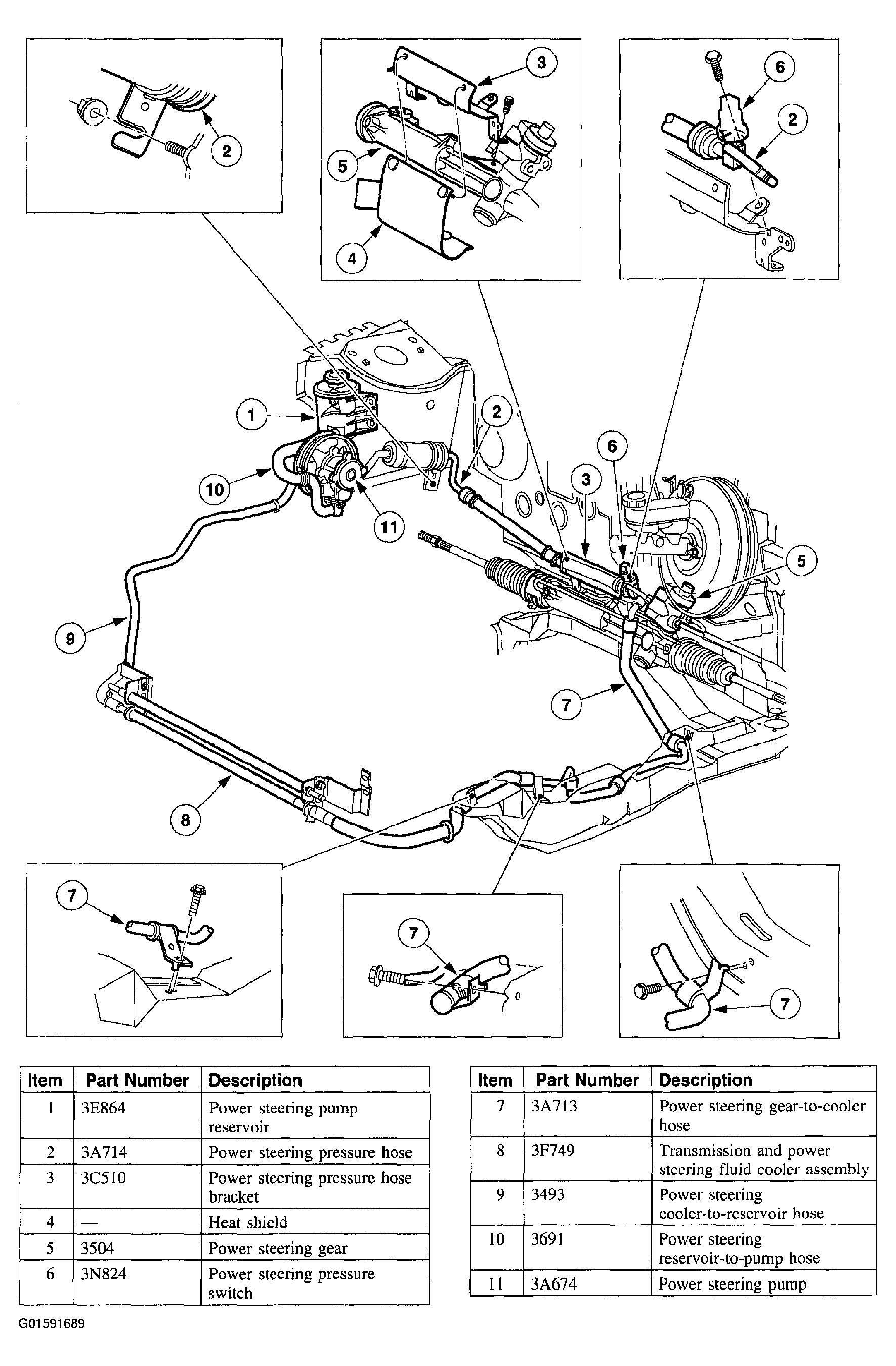

Fig 1: Identifying Steering System Components (3.0L 4V Engine (CIII Pump)
G01591689Courtesy of FORD MOTOR CO.
