Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Disconnect the wiring.

Fig 1: Disconnecting Wiring
Courtesy of FORD MOTOR CO.
Disengage wiring from the wiring clips.

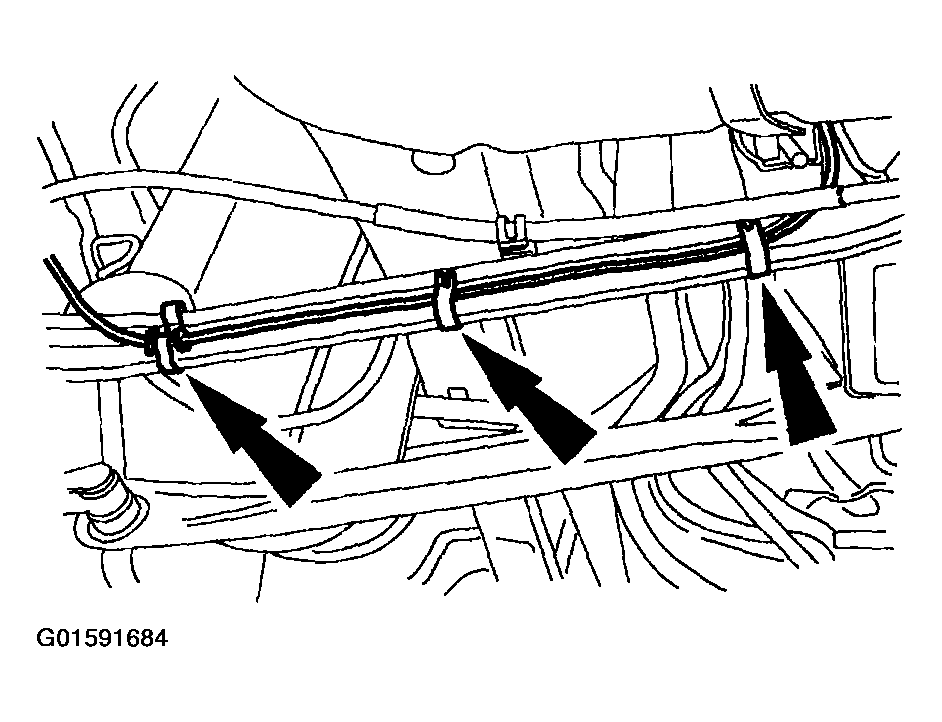

Fig 2: Disengaging Wiring From Wiring Clips
Courtesy of FORD MOTOR CO.
Remove the bolt and the rear wheel speed sensor.

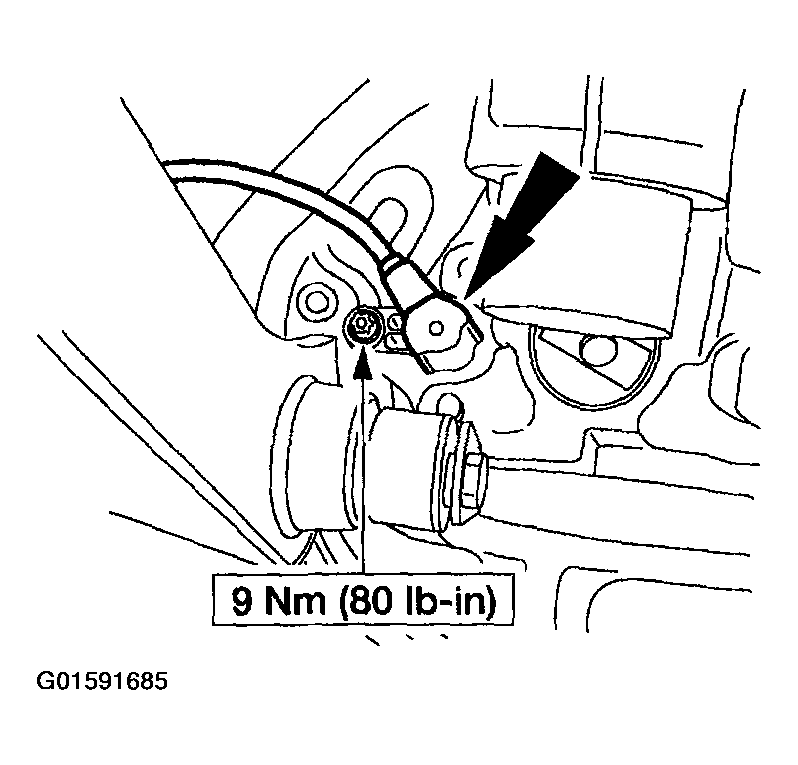

Fig 3: Removing Bolt And Rear Wheel Speed Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
