Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the bolt and the front wheel speed sensor.

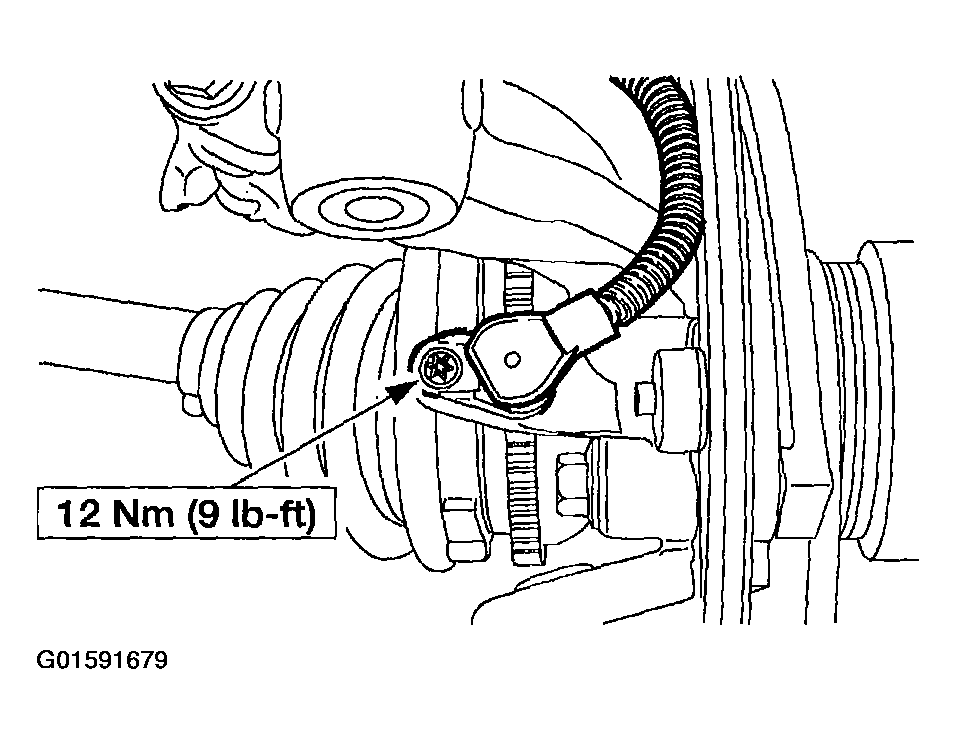

Fig 1: Removing Bolt And Front Wheel Speed Sensor
Courtesy of FORD MOTOR CO.
Disengage the wiring from the routing brackets.

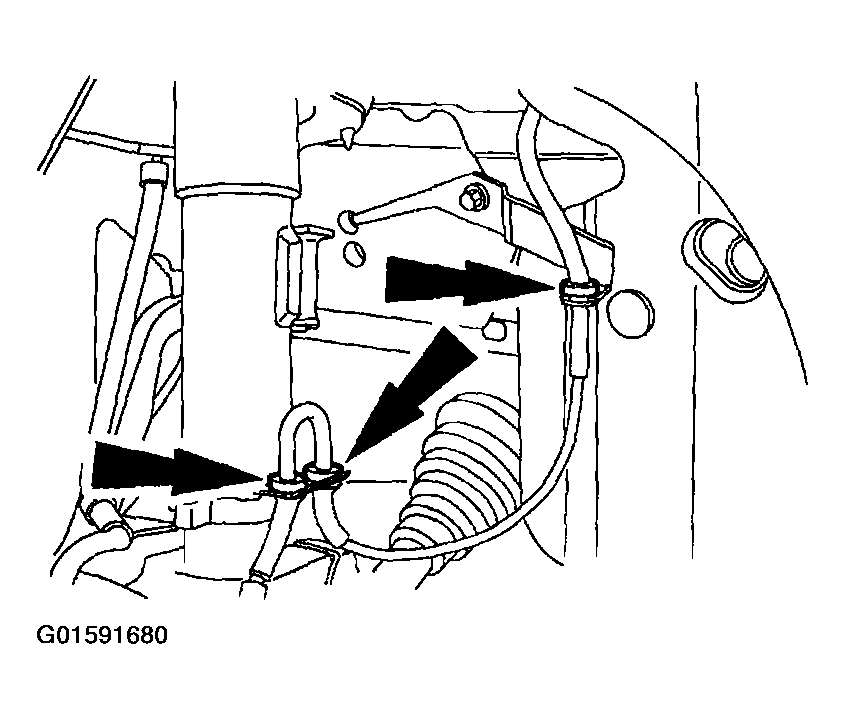

Fig 2: Disengaging Wiring From Routing Brackets
Courtesy of FORD MOTOR CO.
Remove the fender splash shield retainer.

Fig 3: Removing Fender Splash Shield Retainer
Courtesy of FORD MOTOR CO.
Pull back on the splash shield and disconnect the wiring.

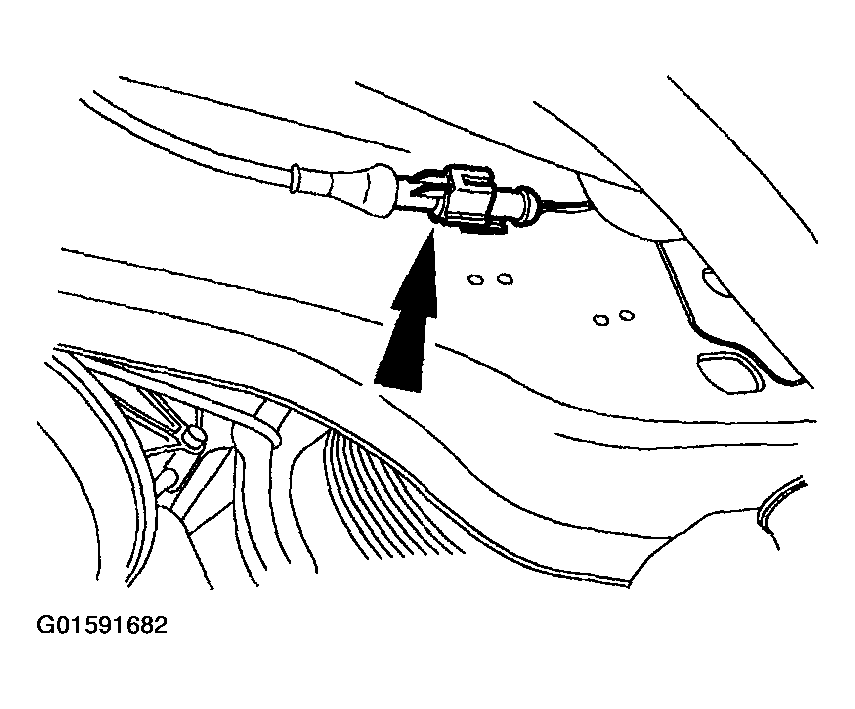

Fig 4: Pulling Back On Splash Shield And Disconnecting Wiring
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
