Pinpoint Test M: The Traction Control Switch Indicator Inoperative - TAURUS Only

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

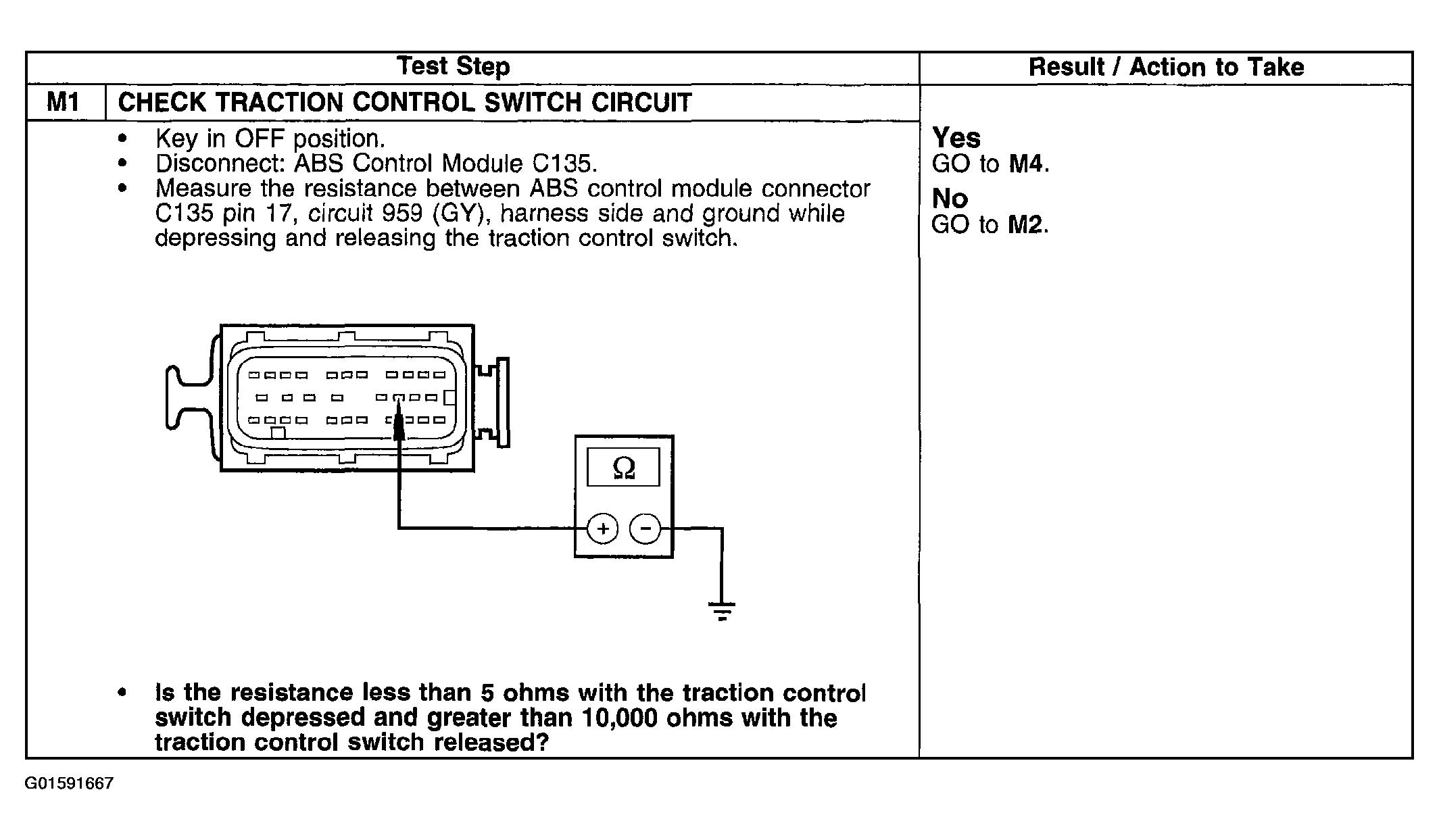

Fig 1: Pinpoint Test M: Traction Control Switch Indicator Inoperative - Taurus Only (Steps M1)

Courtesy of FORD MOTOR CO.

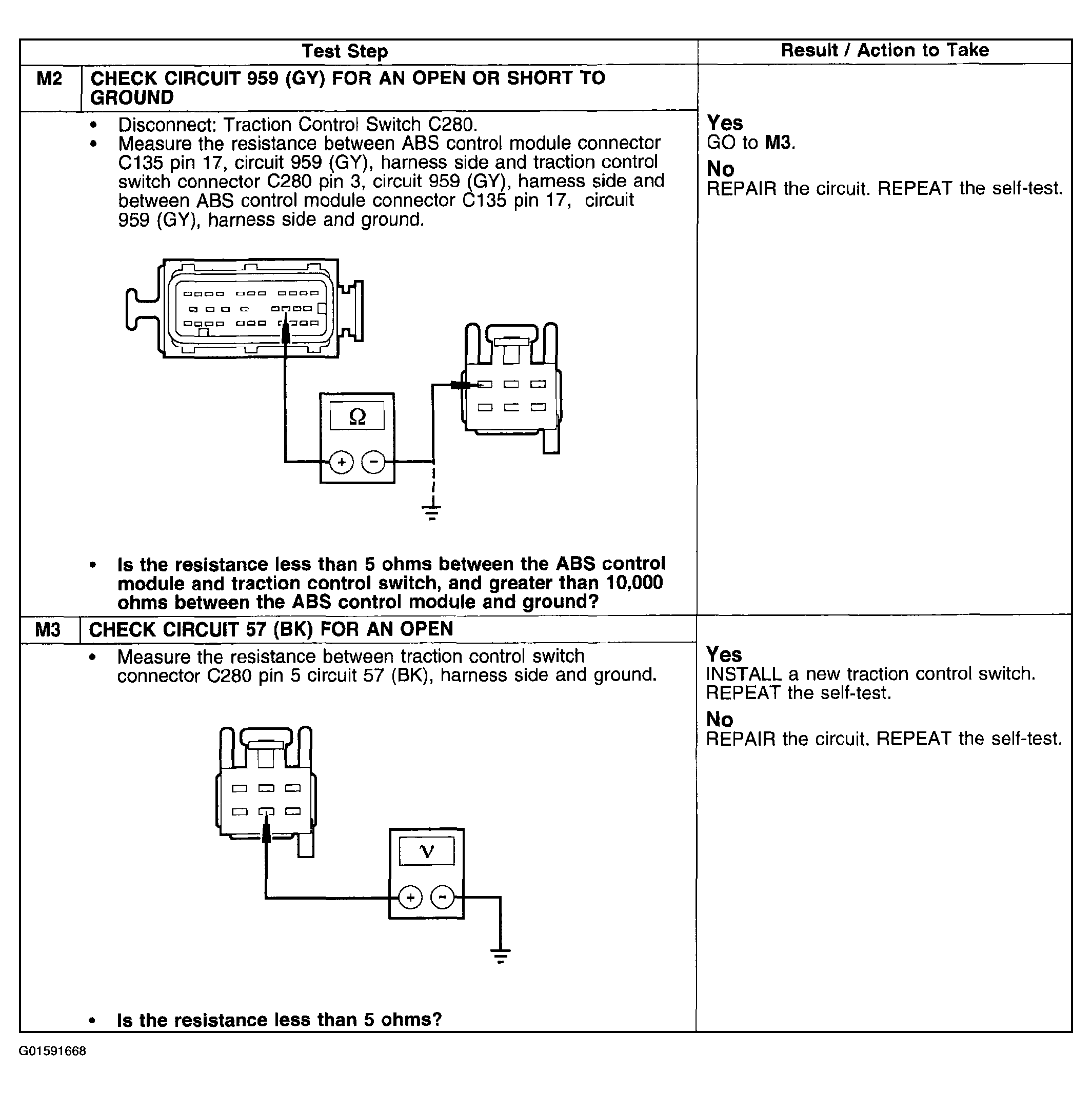

Fig 2: Pinpoint Test M: Traction Control Switch Indicator Inoperative - Taurus Only (Steps M2-M3)

Courtesy of FORD MOTOR CO.

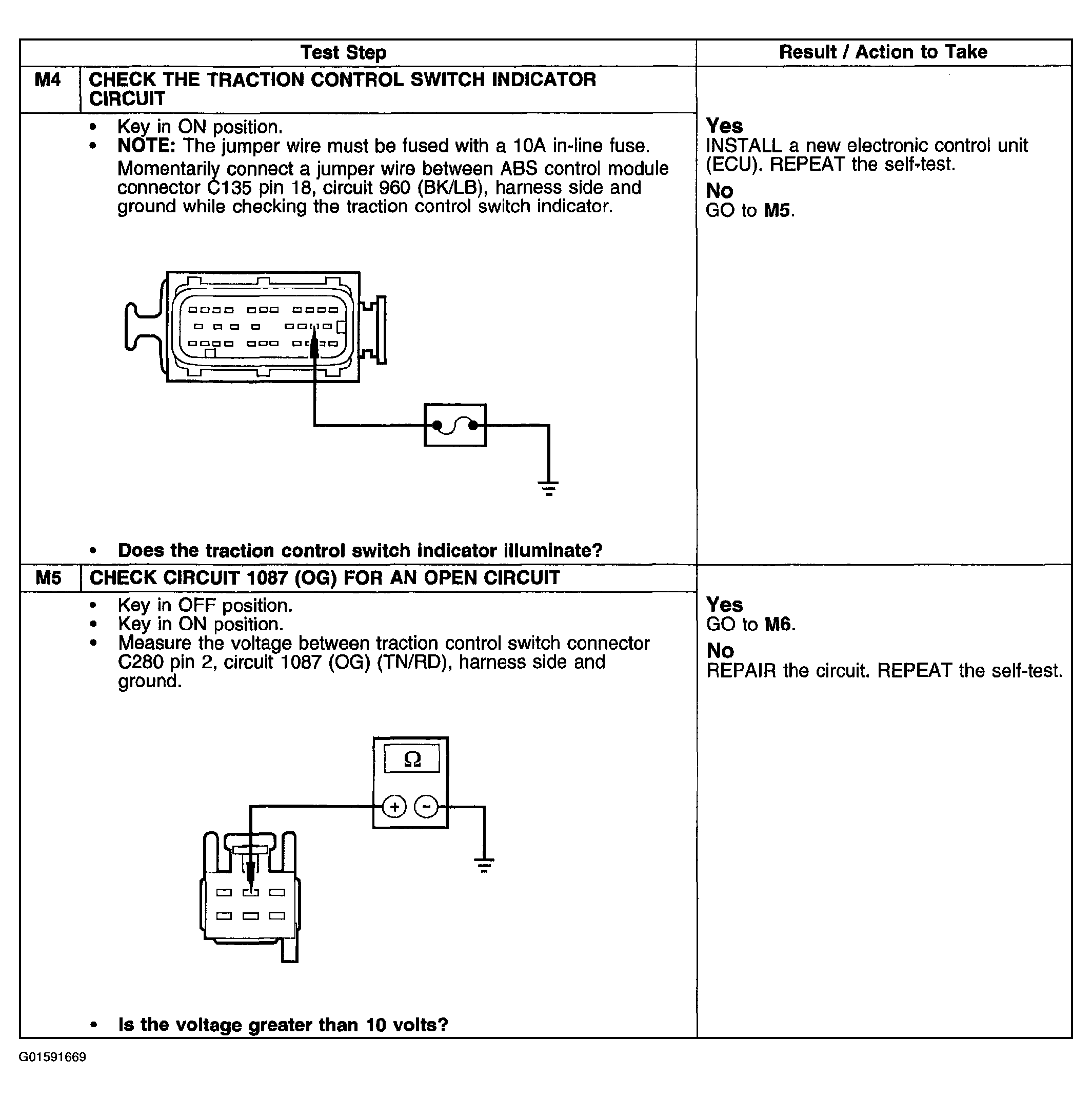

Fig 3: Pinpoint Test M: Traction Control Switch Indicator Inoperative - Taurus Only (Steps M4-M5)

Courtesy of FORD MOTOR CO.

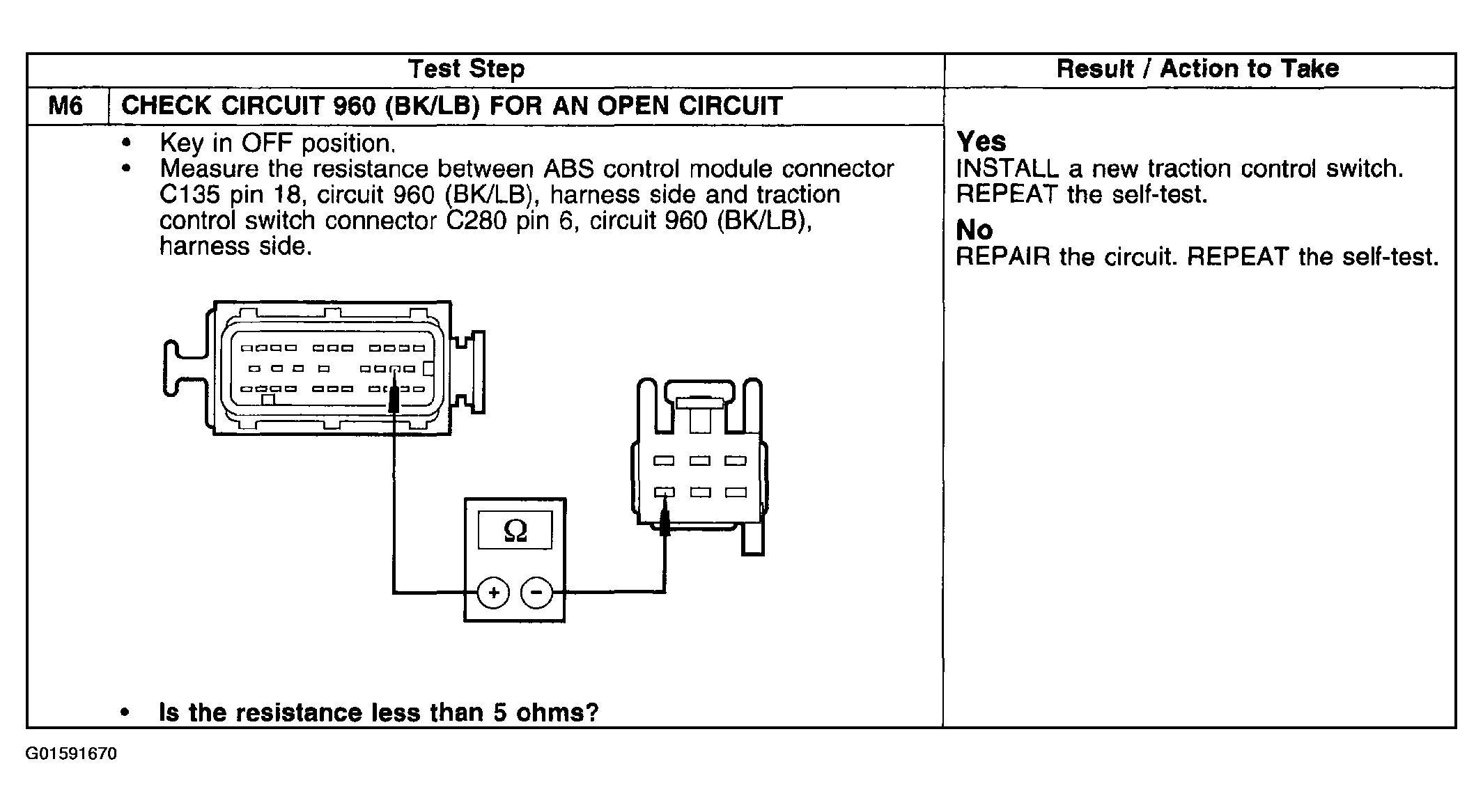

Fig 4: Pinpoint Test M: Traction Control Switch Indicator Inoperative - Taurus Only (Steps M6)

Courtesy of FORD MOTOR CO.
