Pinpoint Test I: The Abs Indicator Light Always On, No DTCS

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

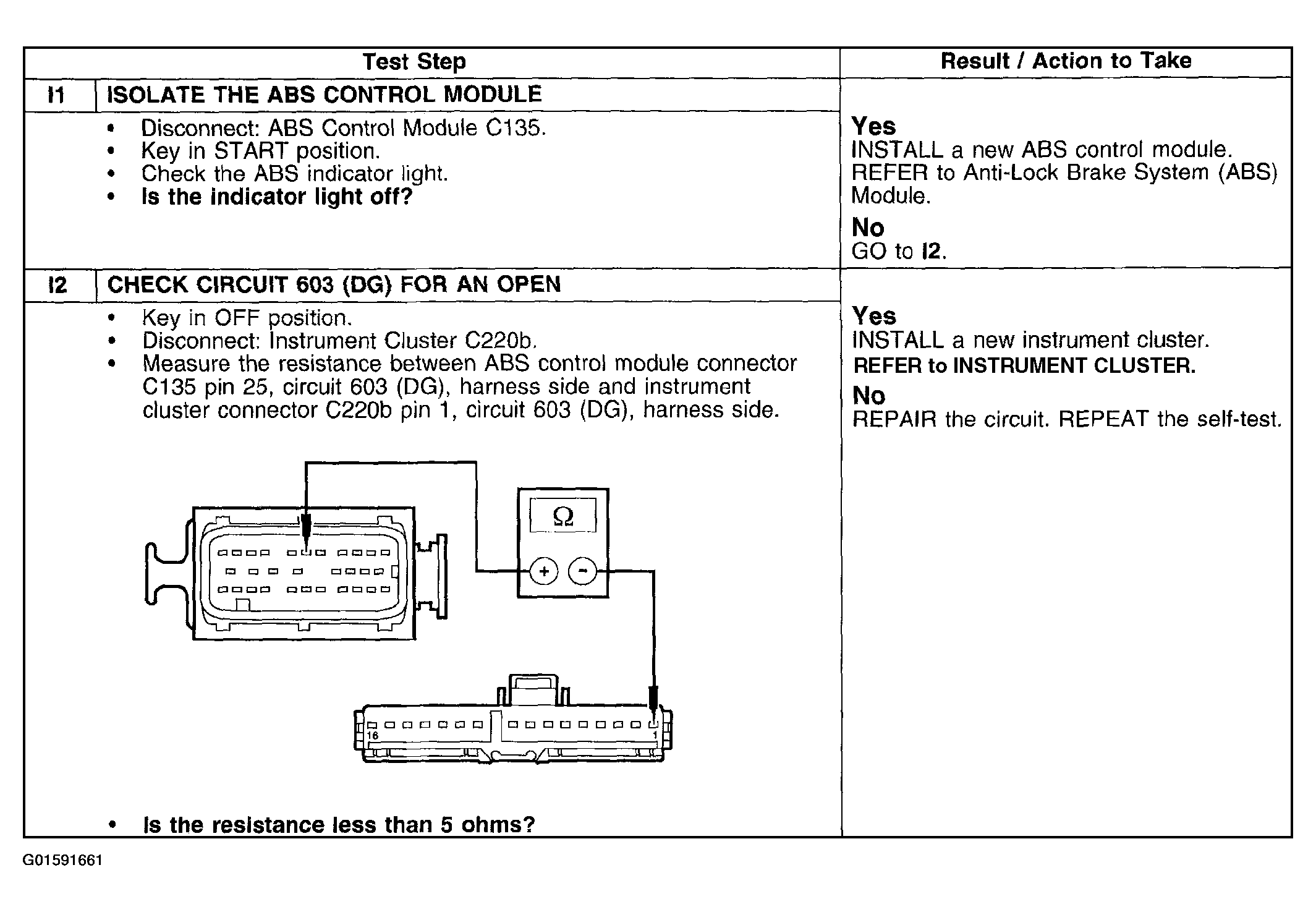

Fig 1: Pinpoint Test I: ABS Indicator Light Always On (Steps I1-I2)
G01591661Courtesy of FORD MOTOR CO.
