Pinpoint Test G: DTC C1222 - Wheel Speed Signal Mismatch

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

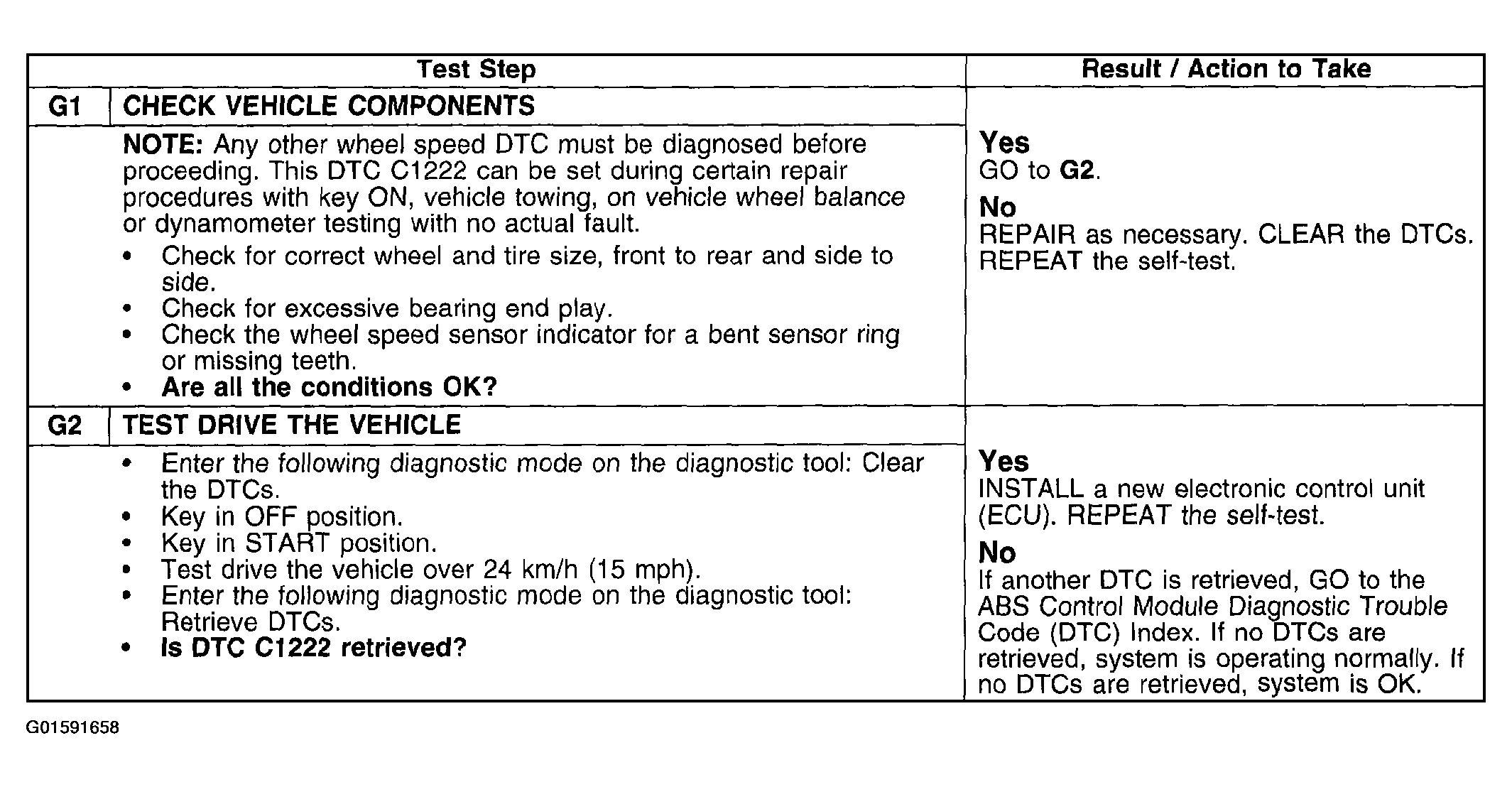

Fig 1: Pinpoint Test G: DTC C1222 - Wheel Speed Signal Mismatch (Steps G1-G2)
G01591658Courtesy of FORD MOTOR CO.
