Pinpoint Test F: DTC C1145 (RF), C1155 (LF), C1165 (RR), C1175 (LR) - Wheel Speed Sensor Input Circuit Failure

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

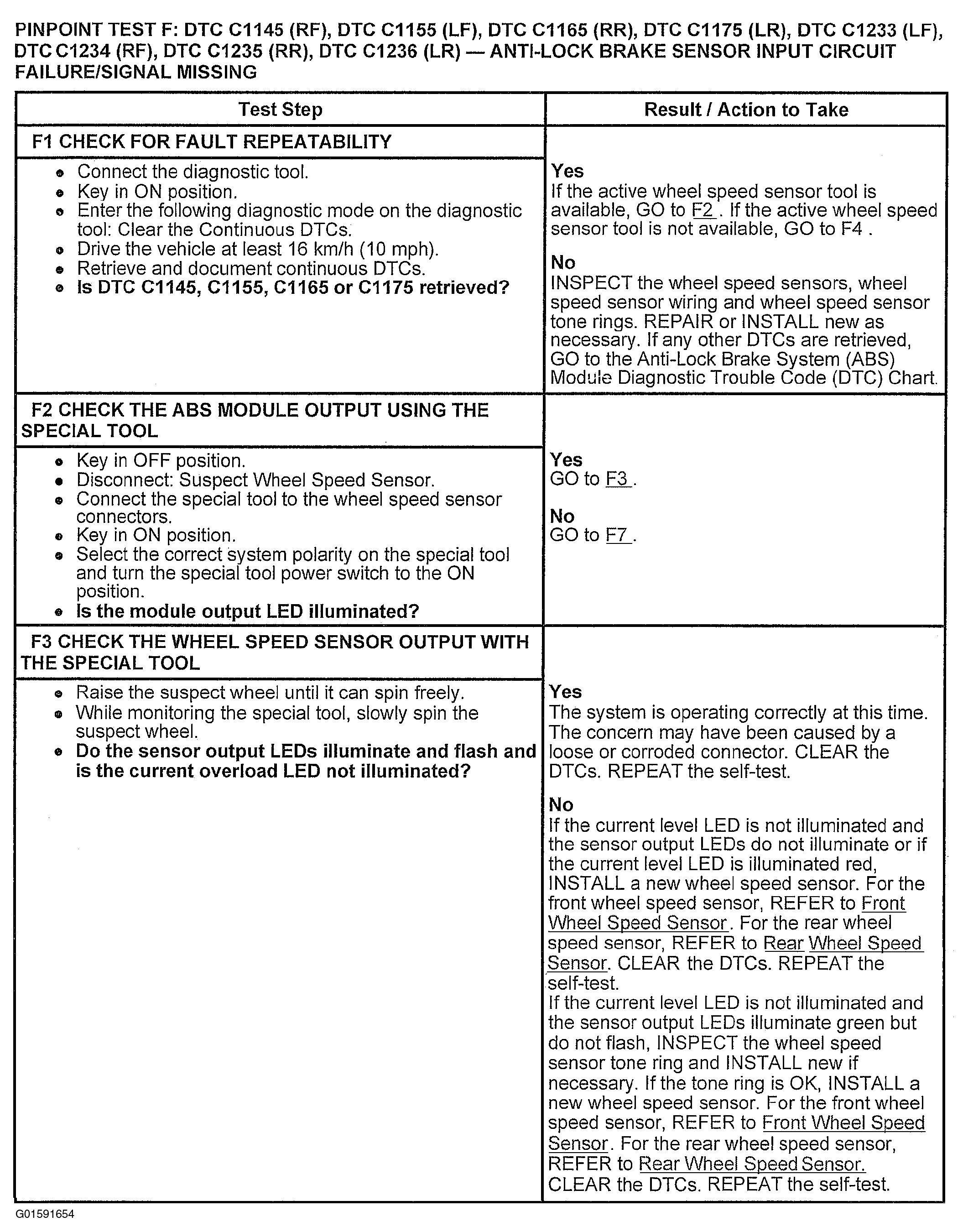

Fig 1: Pinpoint Test F: DTC C1145 (RF), C1155 (LF), C1165 (RR), C1175 (LR), C1233 (LF), C1234 (RF), C1235 (RR), C1236 (LR) - Wheel Speed Sensor Input Circuit Failure (Steps F1-F3)

Courtesy of FORD MOTOR CO.

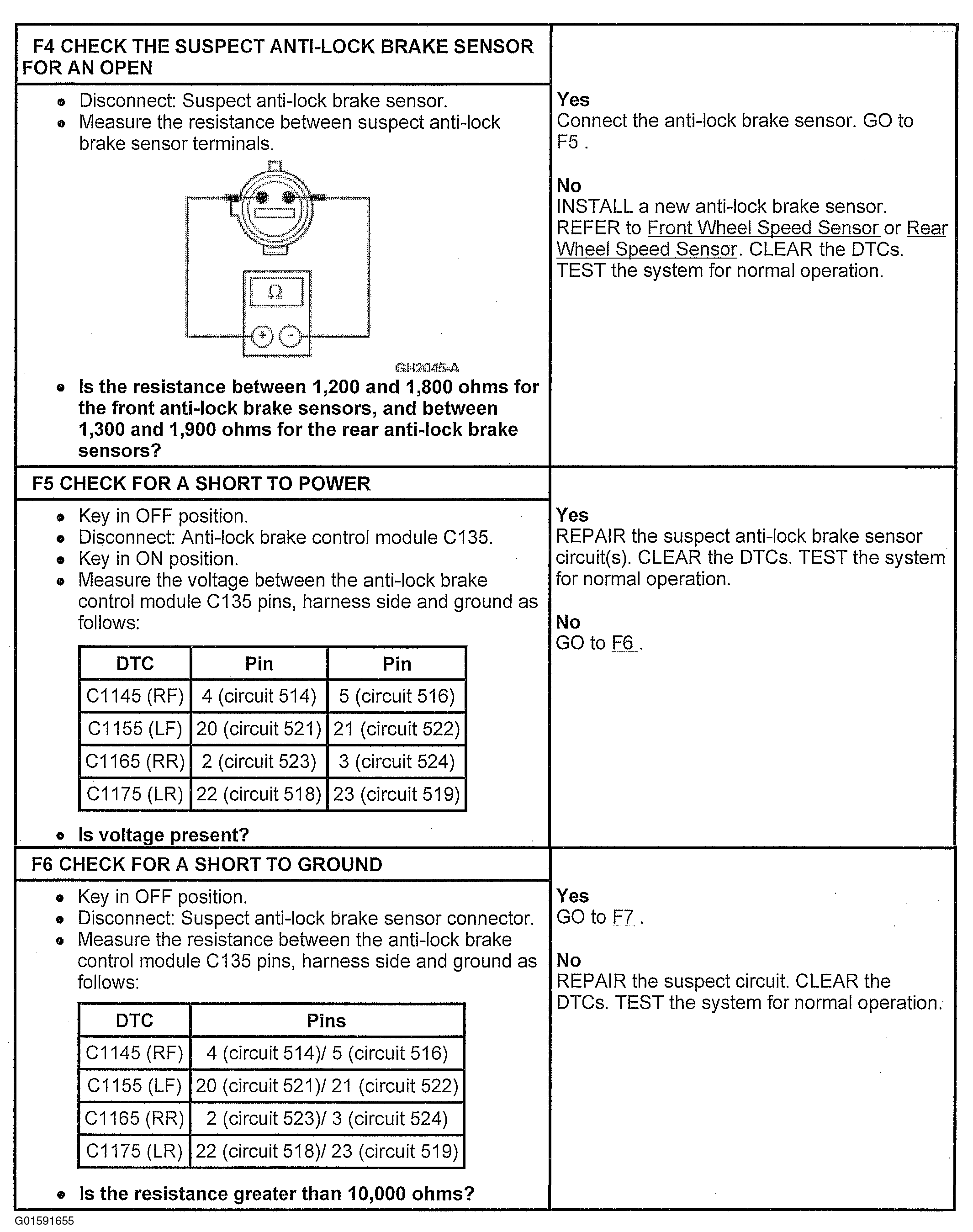

Fig 2: Pinpoint Test F: DTC C1145 (RF), C1155 (LF), C1165 (RR), C1175 (LR), C1233 (LF), C1234 (RF), C1235 (RR), C1236 (LR) - Wheel Speed Sensor Input Circuit Failure (Steps F4-F6)

Courtesy of FORD MOTOR CO.

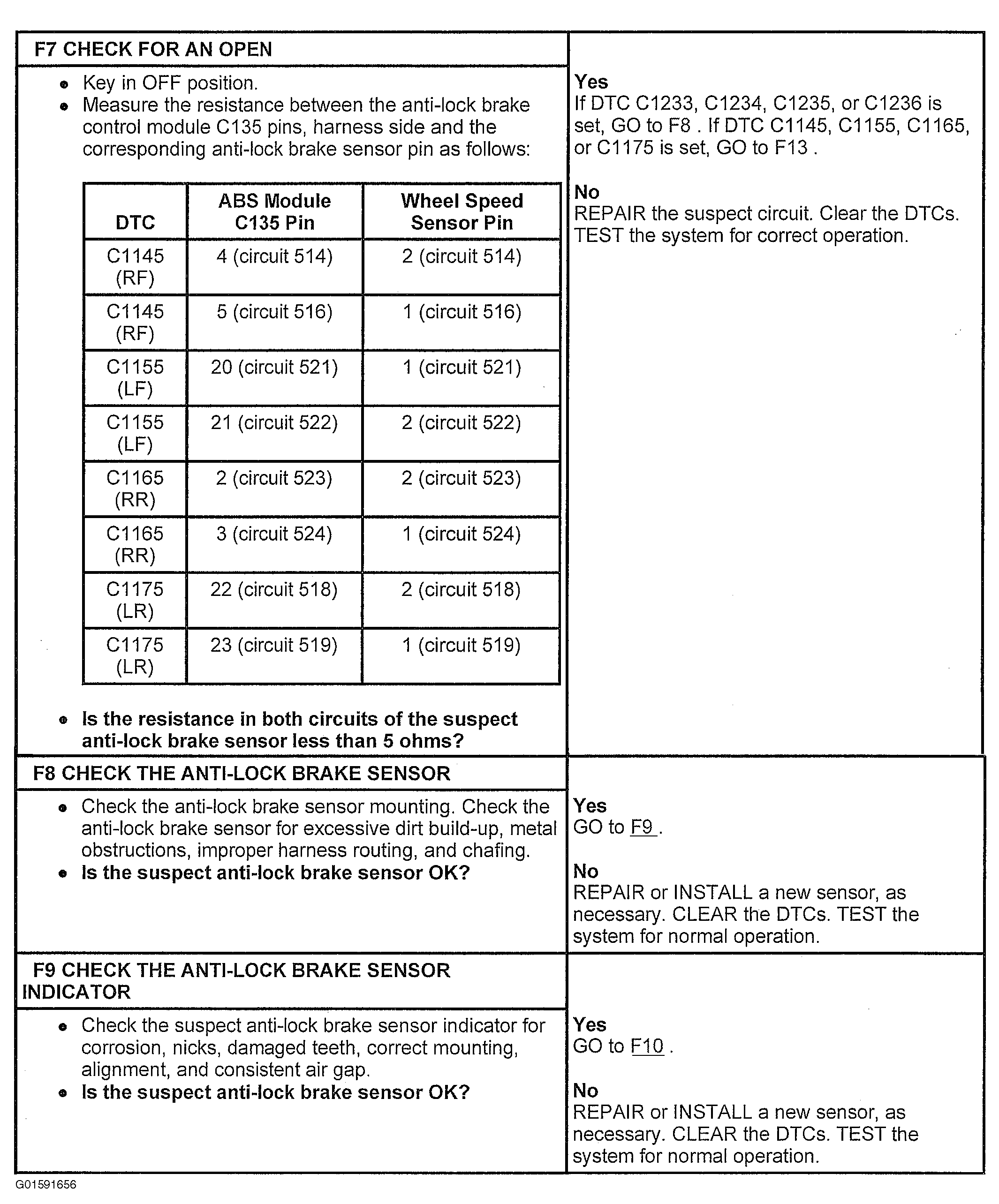

Fig 3: Pinpoint Test F: DTC C1145 (RF), C1155 (LF), C1165 (RR), C1175 (LR), C1233 (LF), C1234 (RF), C1235 (RR), C1236 (LR) - Wheel Speed Sensor Input Circuit Failure (Steps F7-F9)

Courtesy of FORD MOTOR CO.

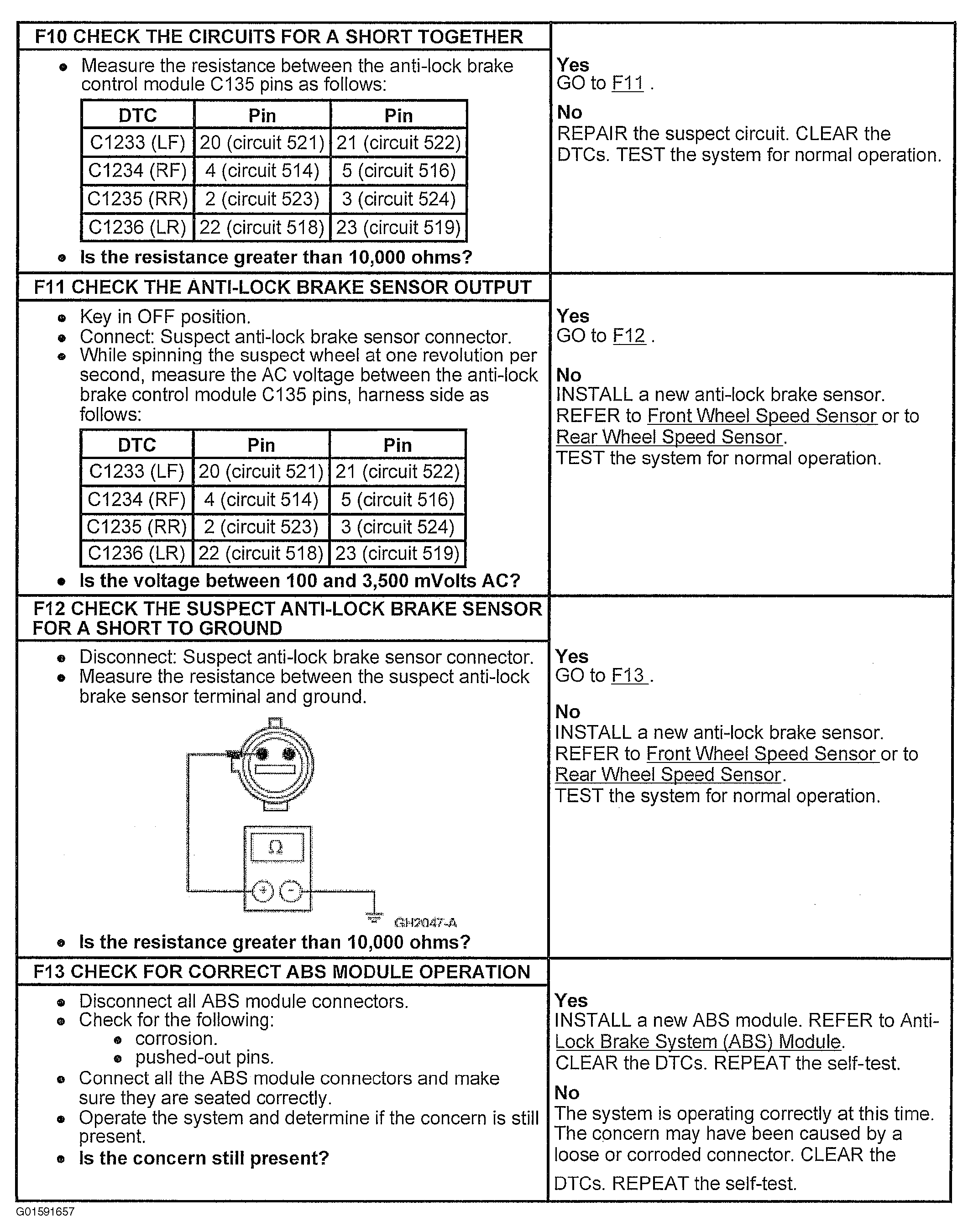

Fig 4: Pinpoint Test F: DTC C1145 (RF), C1155 (LF), C1165 (RR), C1175 (LR), C1233 (LF), C1234 (RF), C1235 (RR), C1236 (LR) - Wheel Speed Sensor Input Circuit Failure (Steps F10-F13)

Courtesy of FORD MOTOR CO.
