Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake pedal and bracket (2C434). For additional information, refer to BRAKE PEDAL AND BRACKET .
Remove the screws and detach the brake pedal cable from the motor.

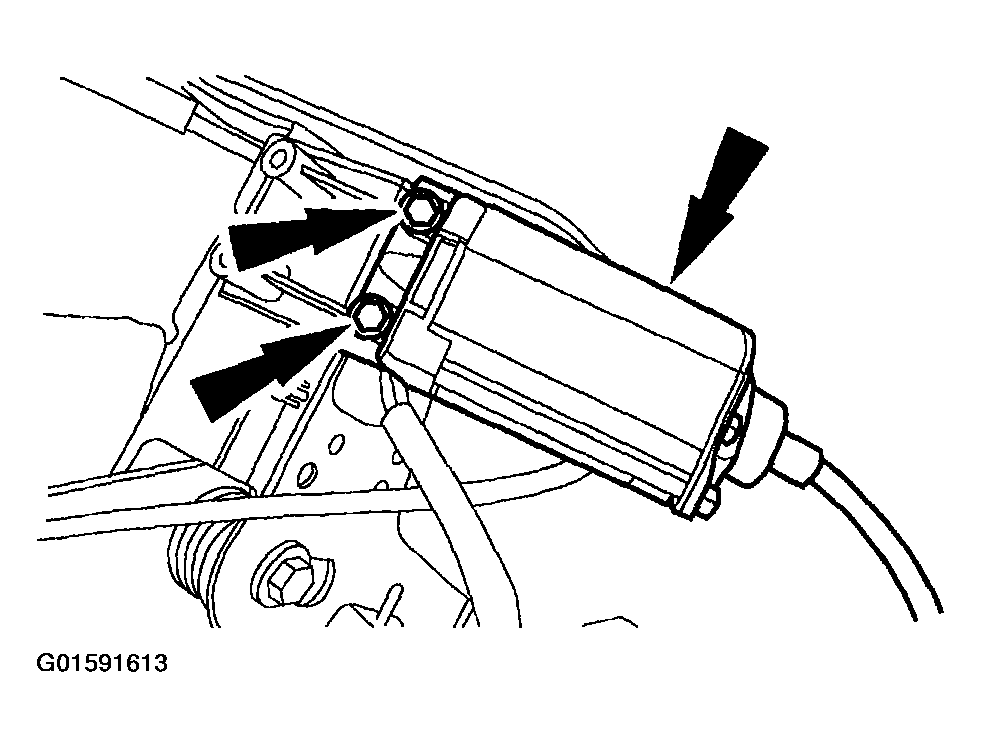

Fig 1: Removing Brake Pedal Cable From Motor
Courtesy of FORD MOTOR CO.
Disconnect the cable from the accelerator cable adjuster.

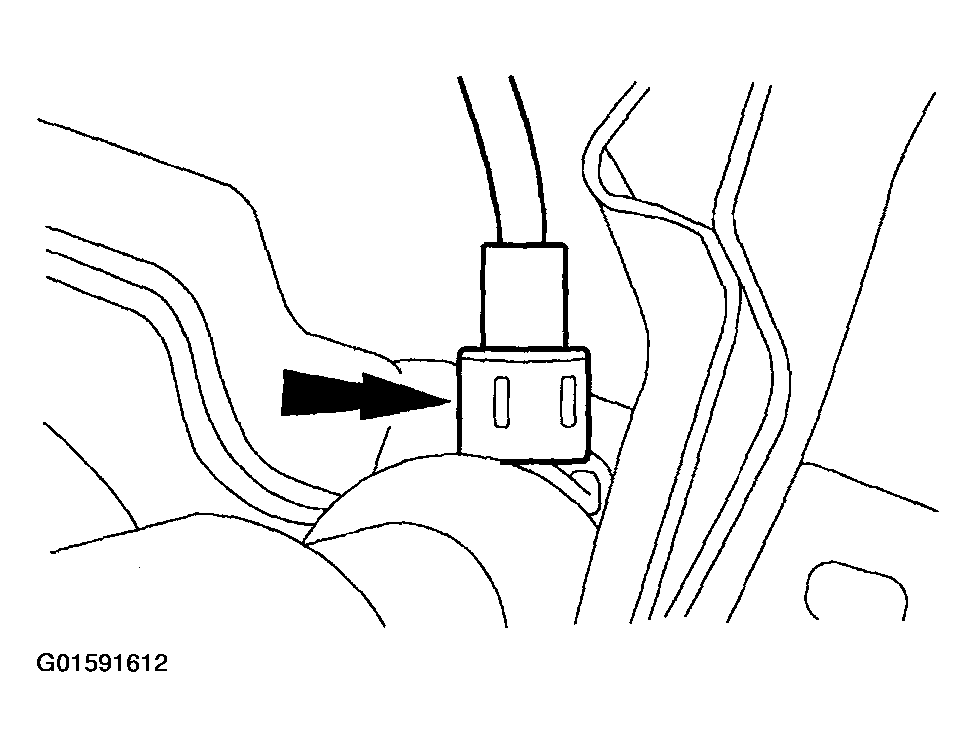

Fig 2: Disconnecting Cable From Accelerator Cable Adjuster
Courtesy of FORD MOTOR CO.
Remove the screws and the motor.

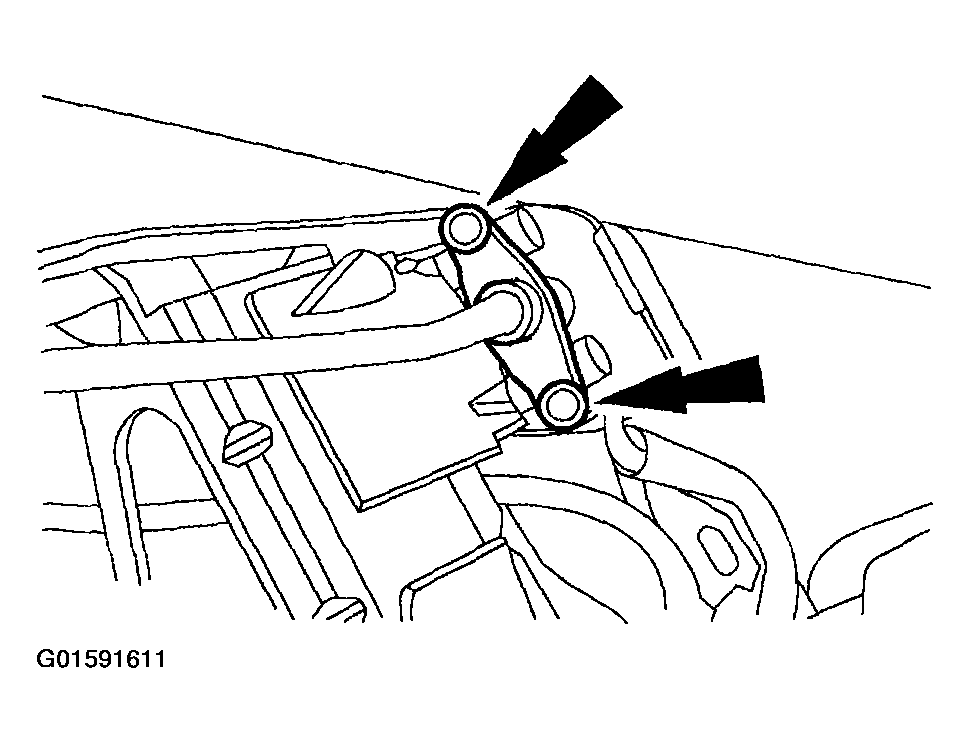

Fig 3: Removing Screws And Motor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
