Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake pedal and bracket (2C434). For additional information, refer to BRAKE PEDAL AND BRACKET .
Remove the screws and detach the brake pedal cable from the motor.

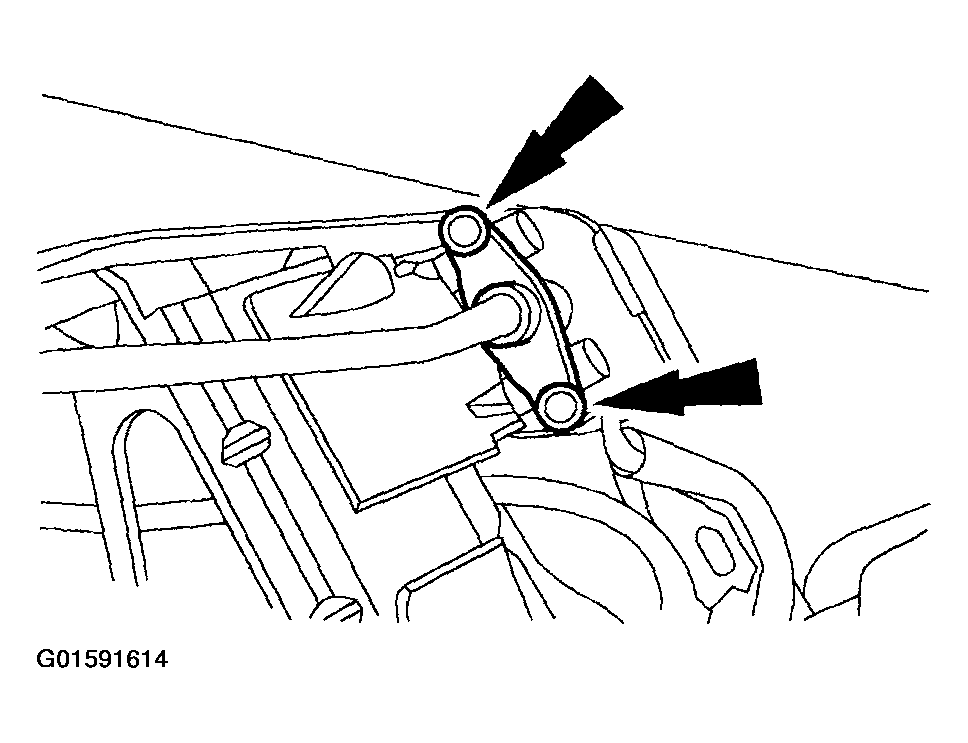

Fig 1: Removing Screws And Brake Pedal Cable From Motor
Courtesy of FORD MOTOR CO.
Disconnect the cable from the brake pedal adjuster.

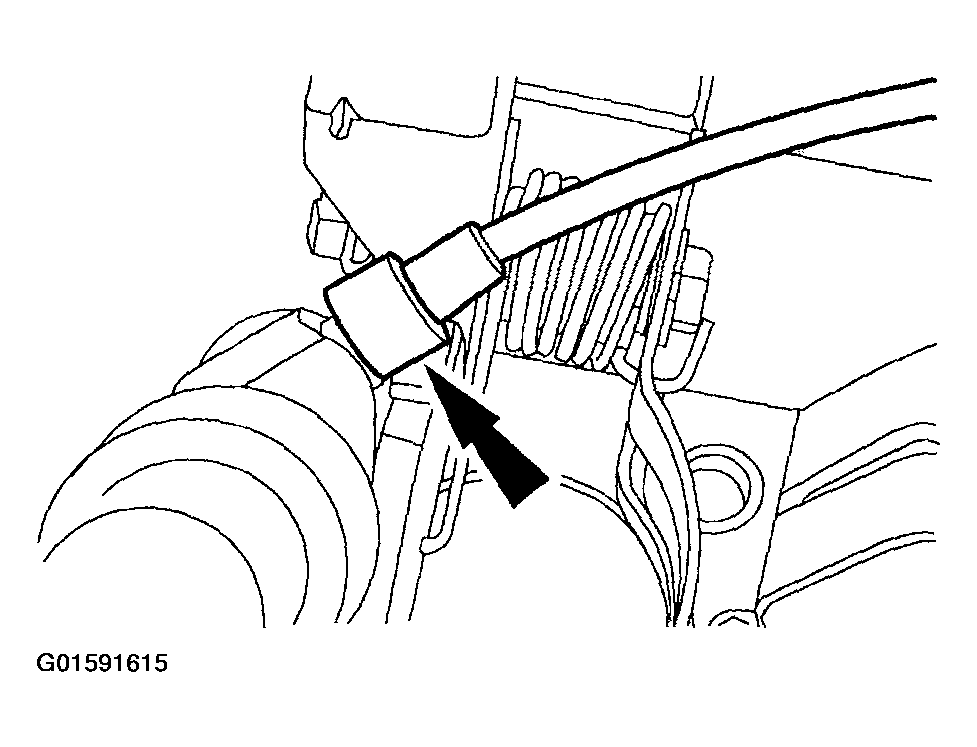

Fig 2: Disconnecting Cable From Brake Pedal Adjuster
Courtesy of FORD MOTOR CO.
Detach the cable from the clip and remove the cable.

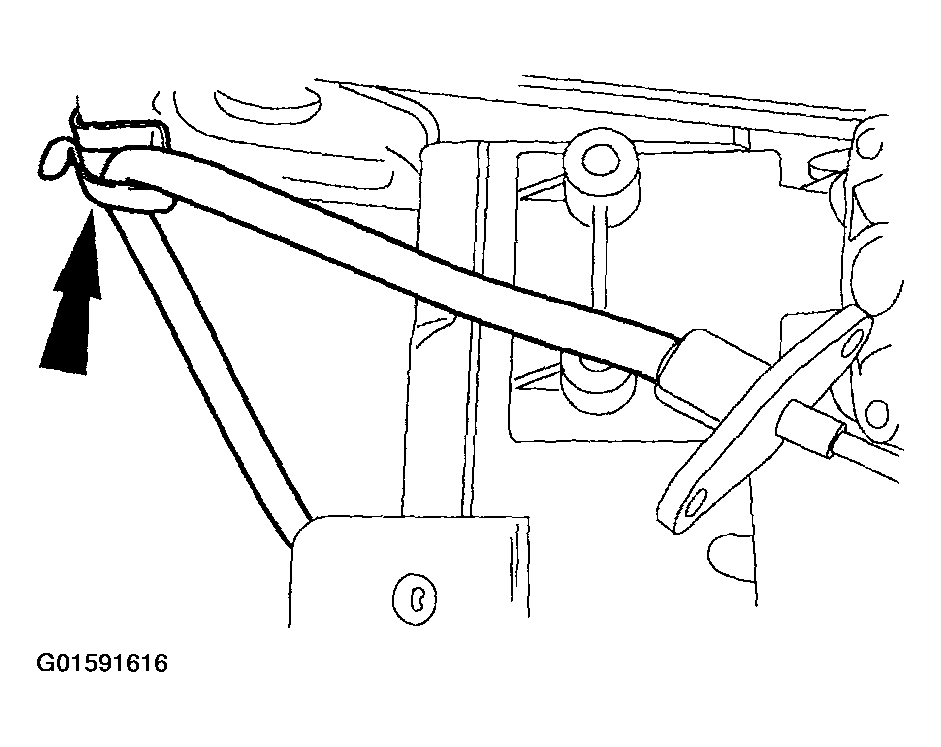

Fig 3: Removing Cable From Clip
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
