Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column. For additional information, refer to STEERING COLUMN .

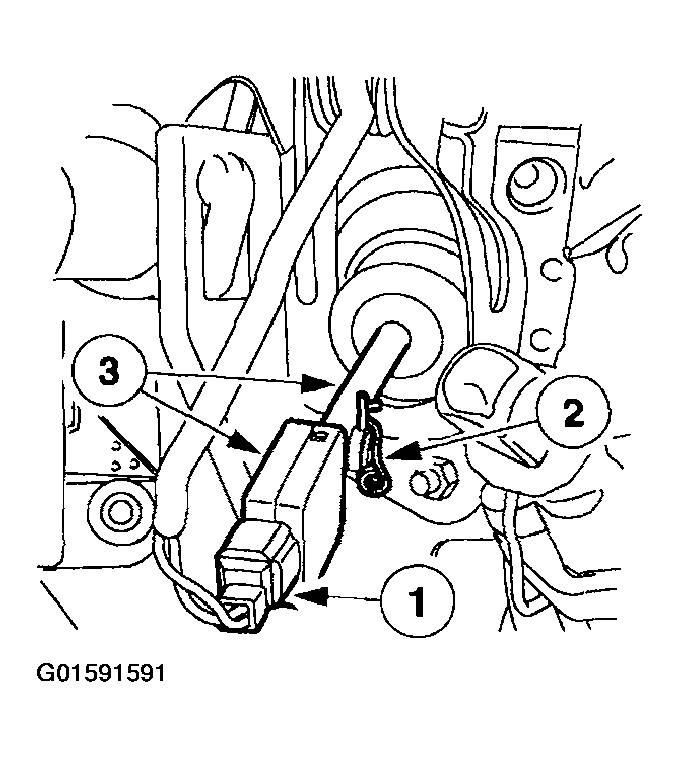

Remove the brake pedal position switch.
1. Disconnect the electrical connector.
2. Remove the clip.
3. Remove the switch and the bushing.
Fig 1: Removing Brake Pedal Position Switch
Courtesy of FORD MOTOR CO.

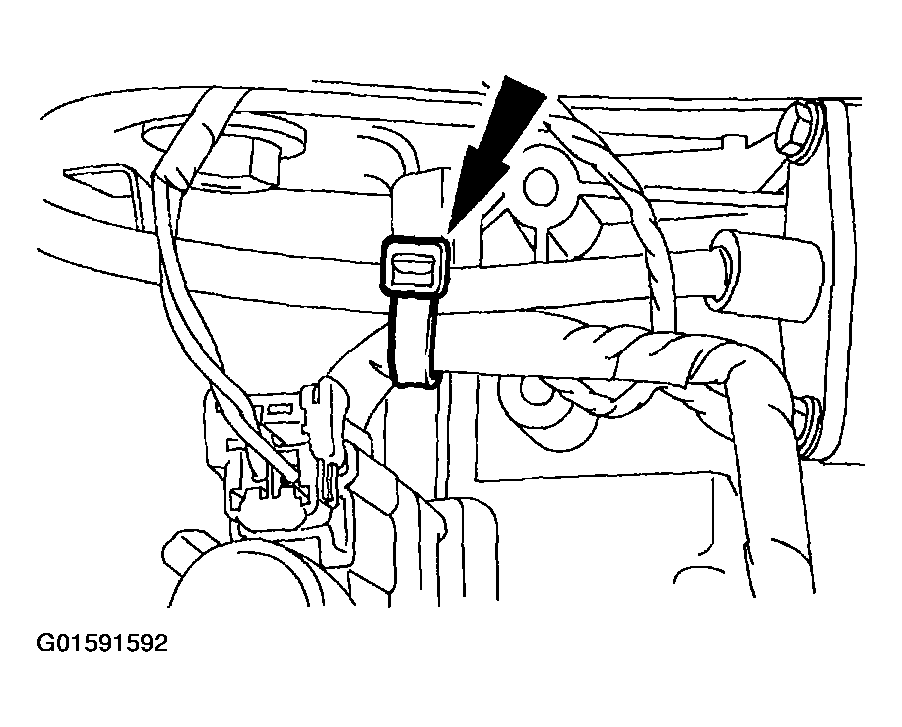

Cut the wire tie.

Fig 2: Cutting Wire Tie
Courtesy of FORD MOTOR CO.

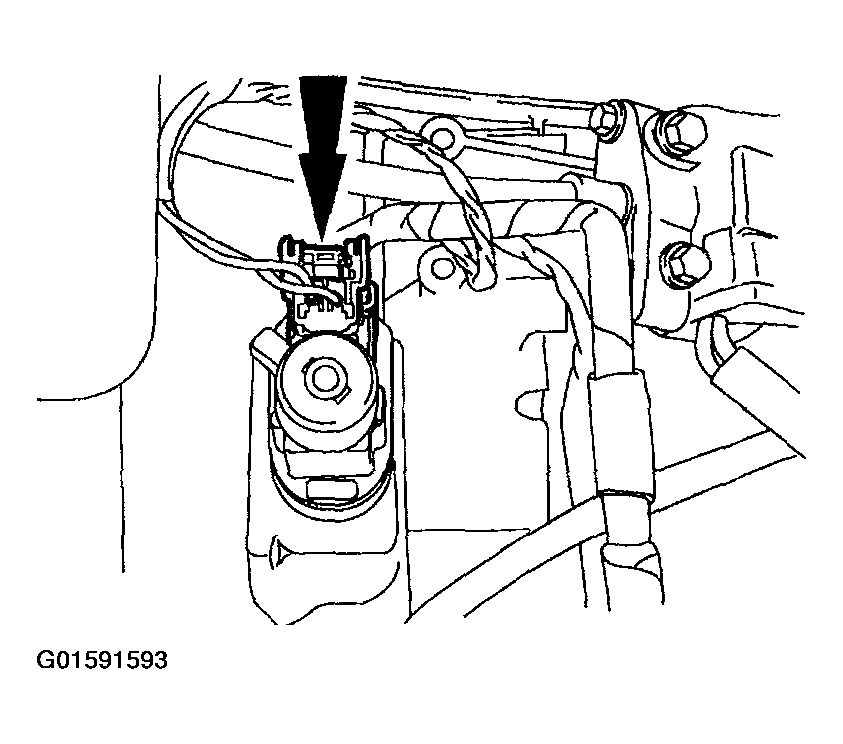

Disconnect the speed control deactivator switch electrical connector.

Fig 3: Disconnecting Speed Control Deactivator Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

Fig 4: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

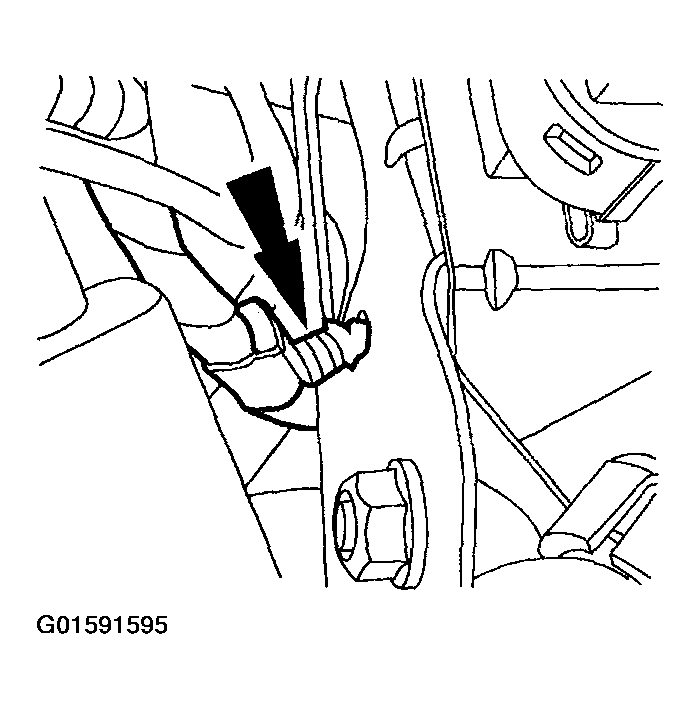

Detach the wiring harness retainer.

Fig 5: Removing Wiring Harness Retainer
Courtesy of FORD MOTOR CO.
Detach the accelerator cable.

Fig 6: Removing Accelerator Cable
Courtesy of FORD MOTOR CO.

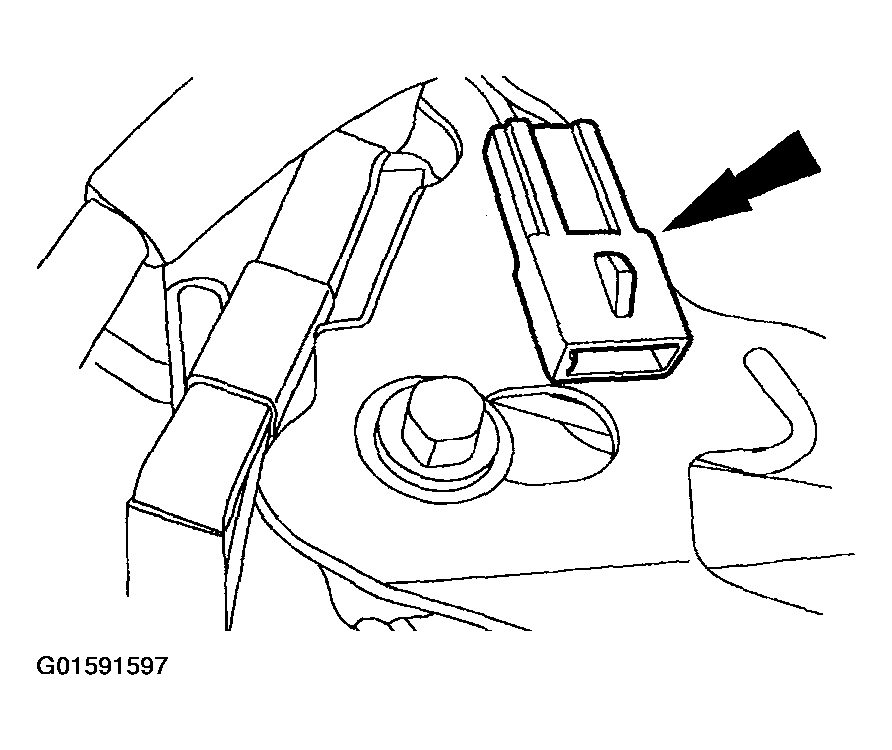

Detach the electrical connector from the brake pedal bracket.

Fig 7: Removing Electrical Connector From Brake Pedal Bracket
Courtesy of FORD MOTOR CO.

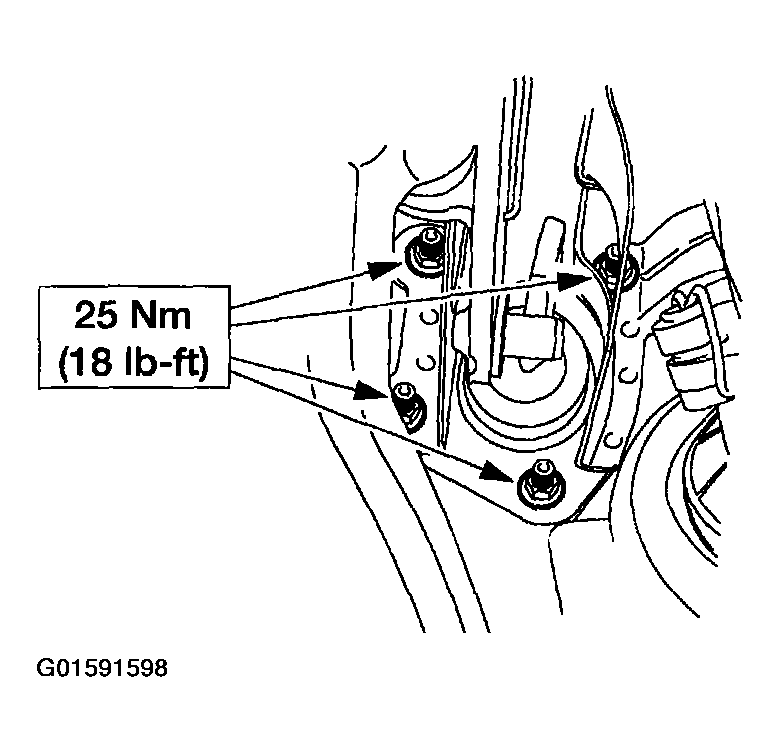

Remove the nuts.

Fig 8: Removing Nuts
Courtesy of FORD MOTOR CO.

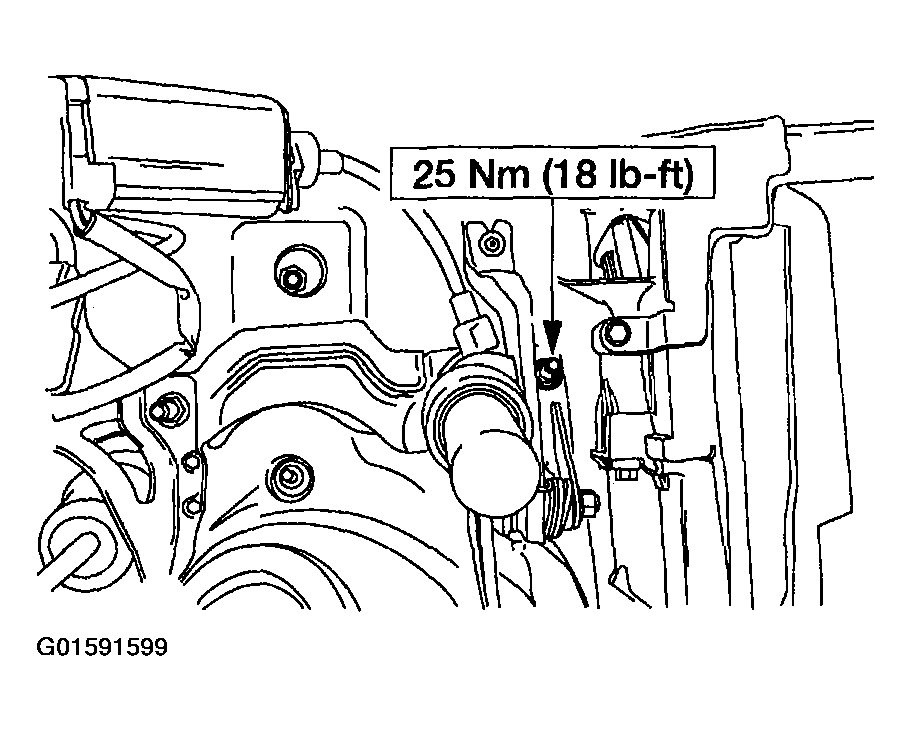

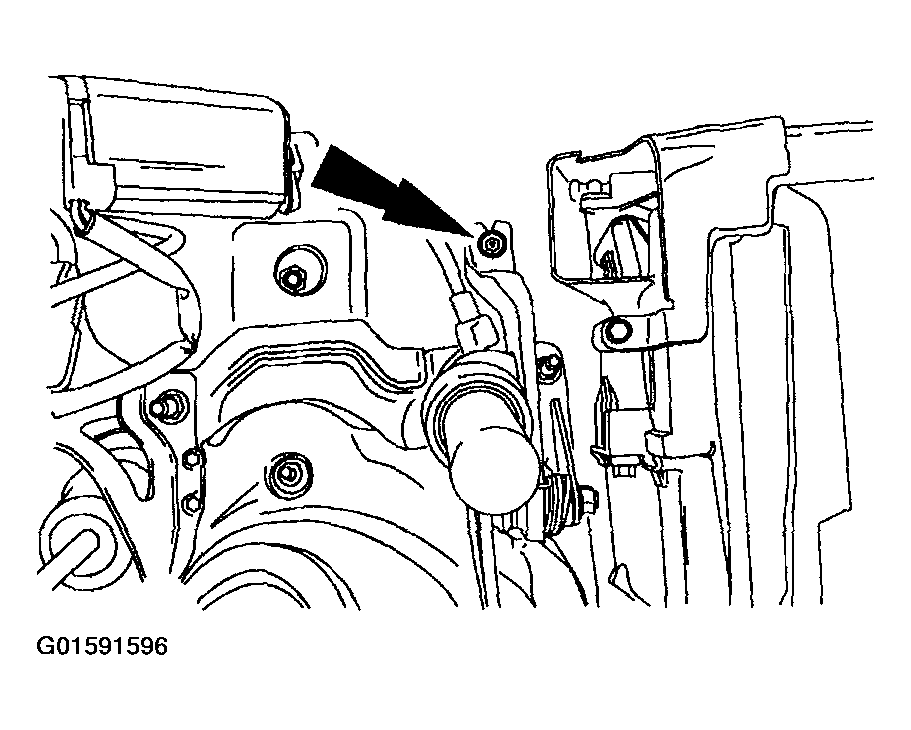

Remove the nut.

Fig 9: Identifying Nut
Courtesy of FORD MOTOR CO.
Remove two bolts and the brake pedal and bracket (2C434).

Fig 10: Removing Brake Pedal And Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
