Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake pedal position switch.
1. Disconnect the electrical connector.
2. Remove the clip.
3. Remove the switch and the bushing.

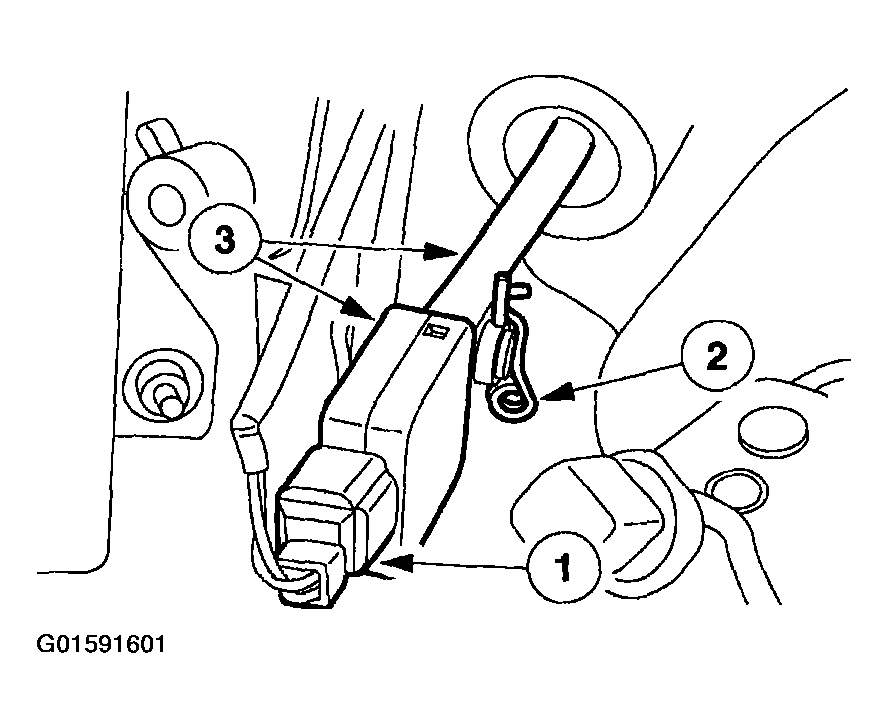

Fig 1: Removing Brake Pedal Position Switch (Fixed)
Courtesy of FORD MOTOR CO.
Disconnect the speed control deactivator switch electrical connector and detach the wiring harness retainers.

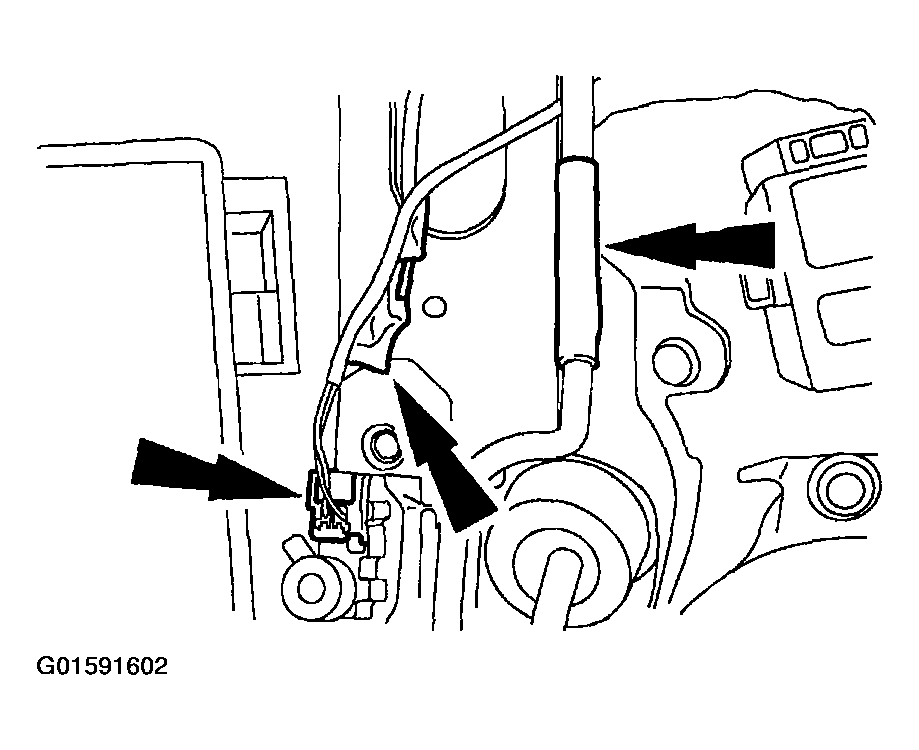

Fig 2: Disconnecting Speed Control Deactivator Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the speed control deactivator switch.

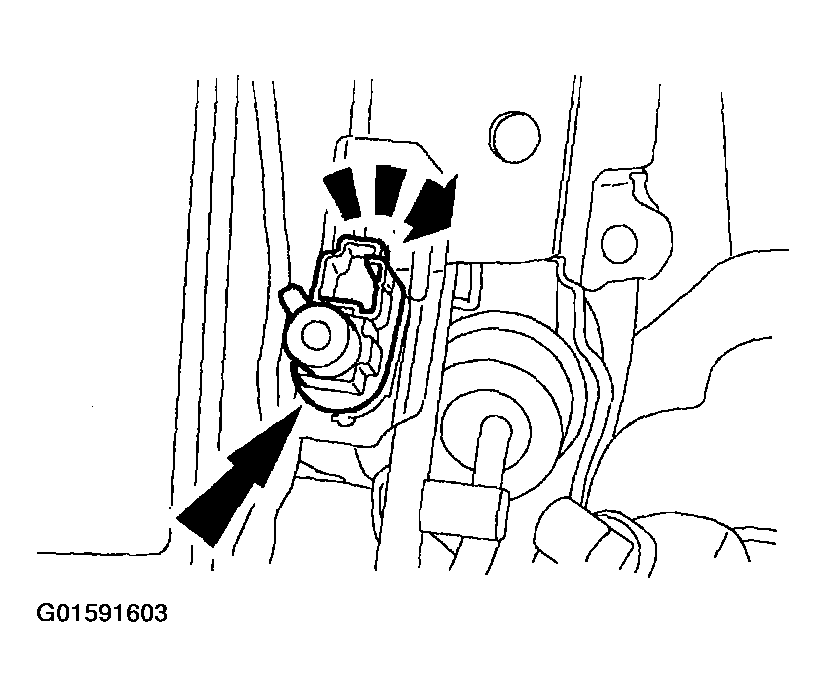

Fig 3: Removing Speed Control Deactivator Switch
Courtesy of FORD MOTOR CO.
Remove the bolts.

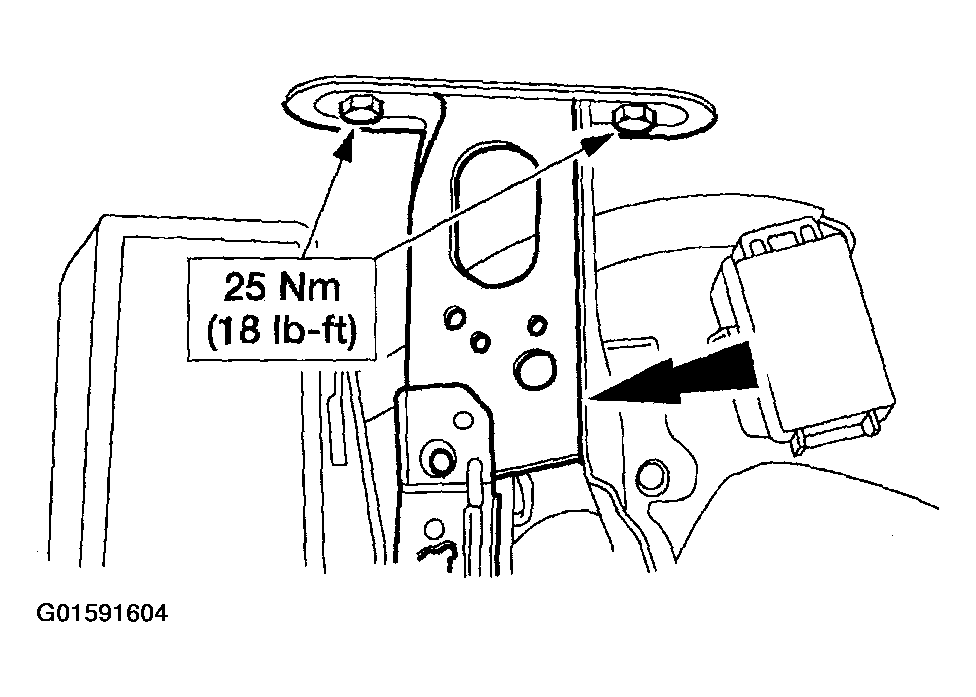

Fig 4: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the nuts and the brake pedal (2455).

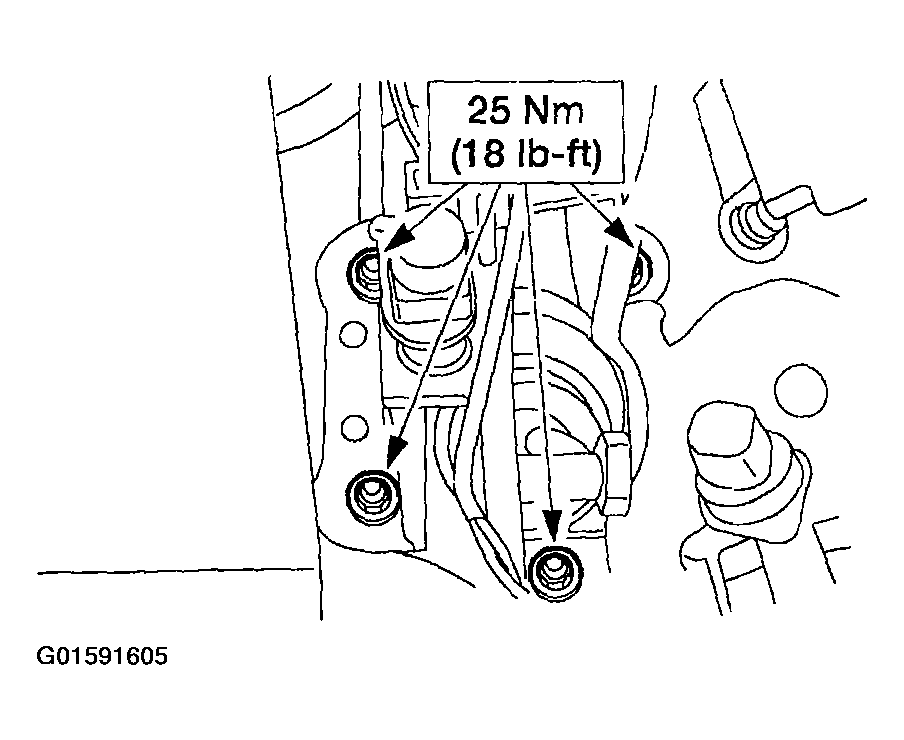

Fig 5: Removing Nuts And Brake Pedal
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
