Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake pedal and bracket (2C434). For additional information, refer to BRAKE PEDAL AND BRACKET .
Remove the speed control deactivation switch.

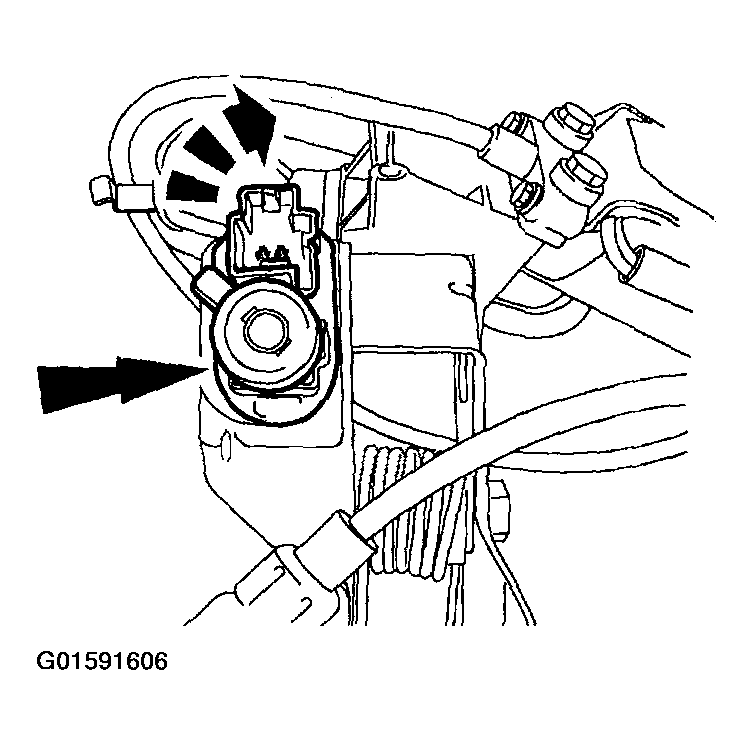

Fig 1: Removing Speed Control Deactivation Switch
Courtesy of FORD MOTOR CO.
Detach the spring.

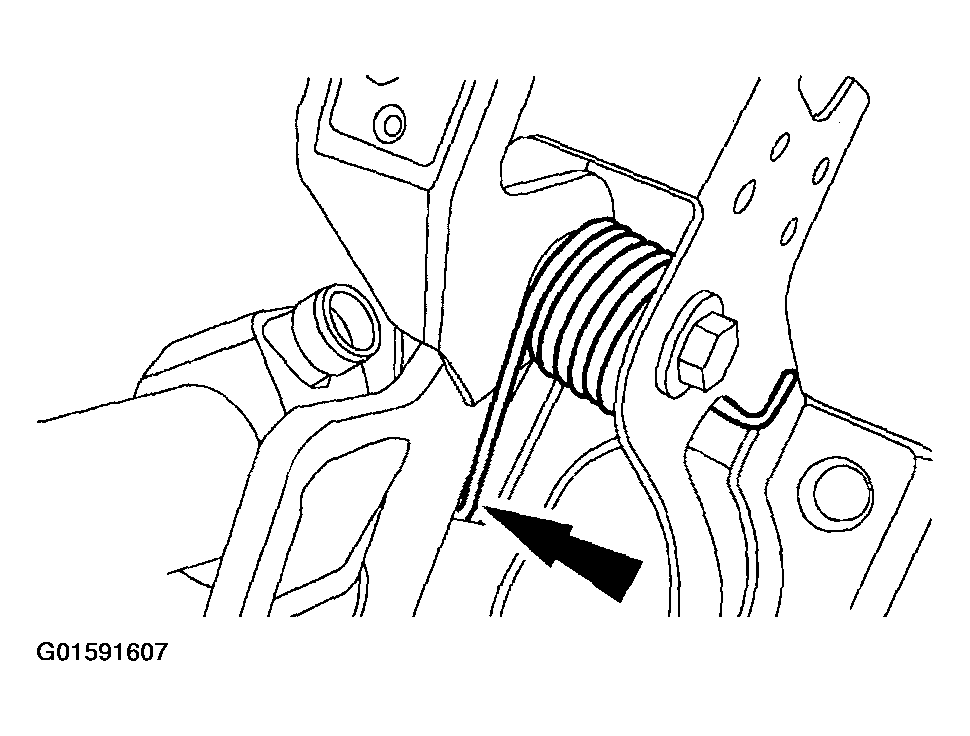

Fig 2: Removing spring
Courtesy of FORD MOTOR CO.
Remove the nut and bolt.

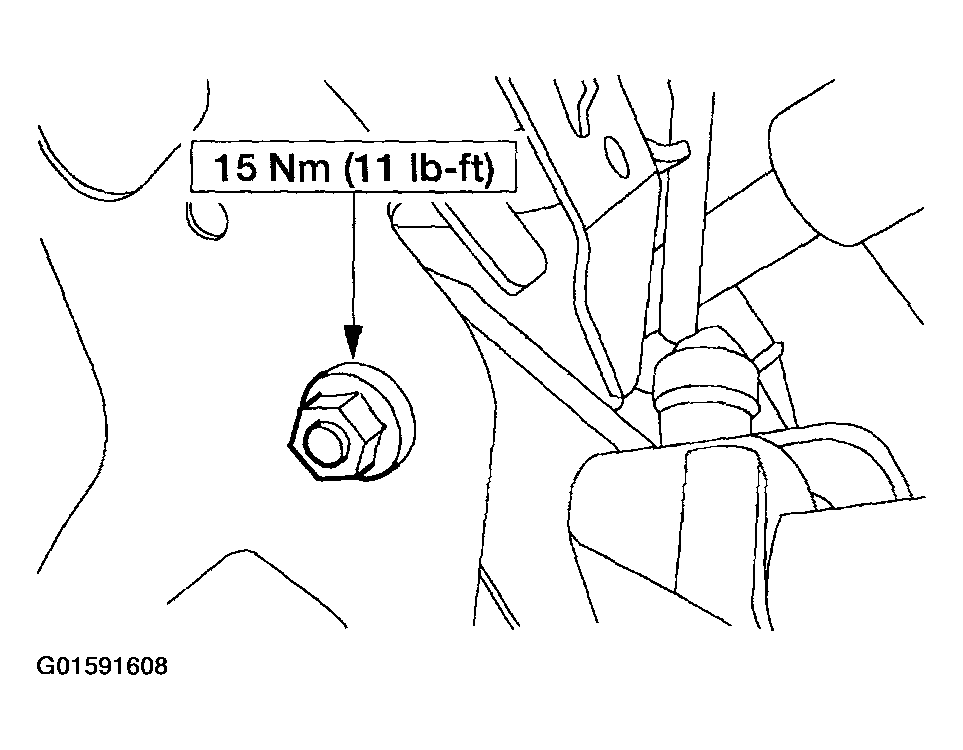

Fig 3: Removing Nut And Bolt
Courtesy of FORD MOTOR CO.
Remove the metal bushing and the brake pedal (2455).

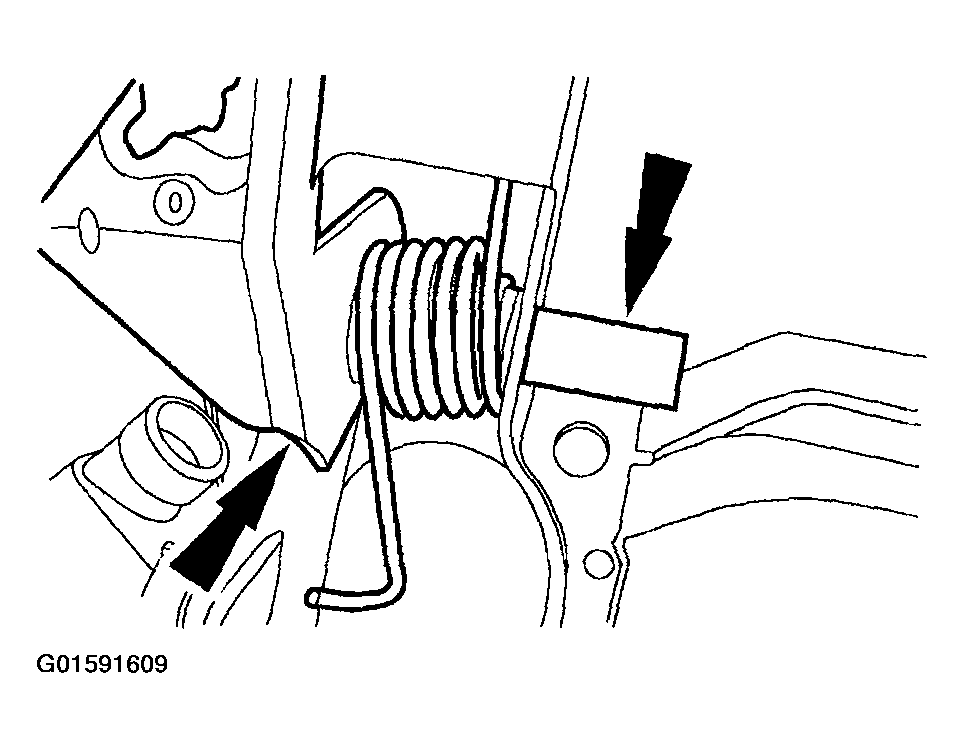

Fig 4: Removing Metal Bushing And Brake Pedal
Courtesy of FORD MOTOR CO.
Remove the spring, the spring bushing and the two inner end bushings.

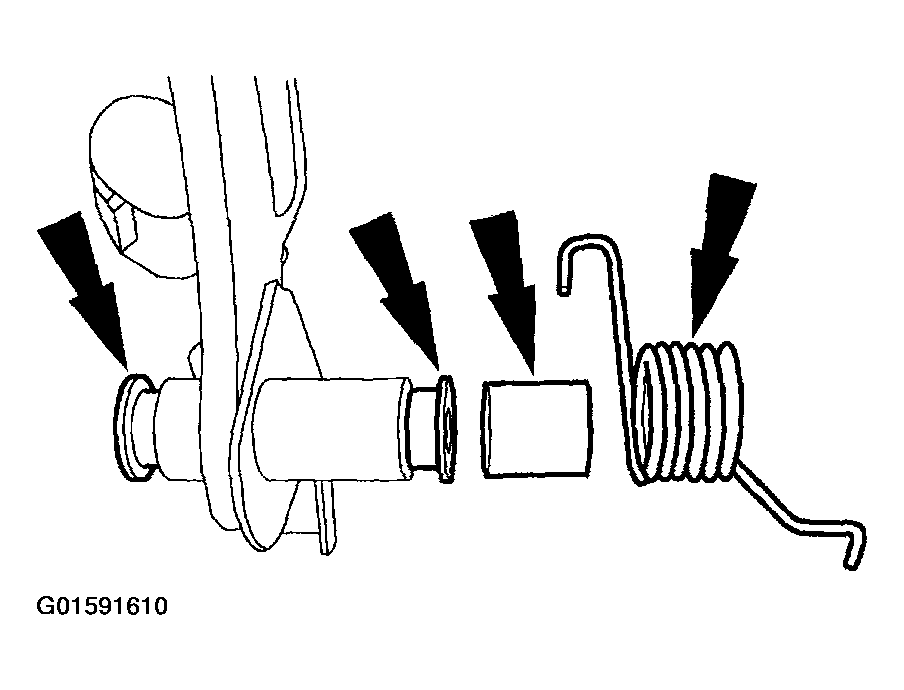

Fig 5: Removing Spring, Spring Bushing And Inner End Bushings
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
