Pinpoint Test D: Excessive/Erratic Brake Pedal Travel

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

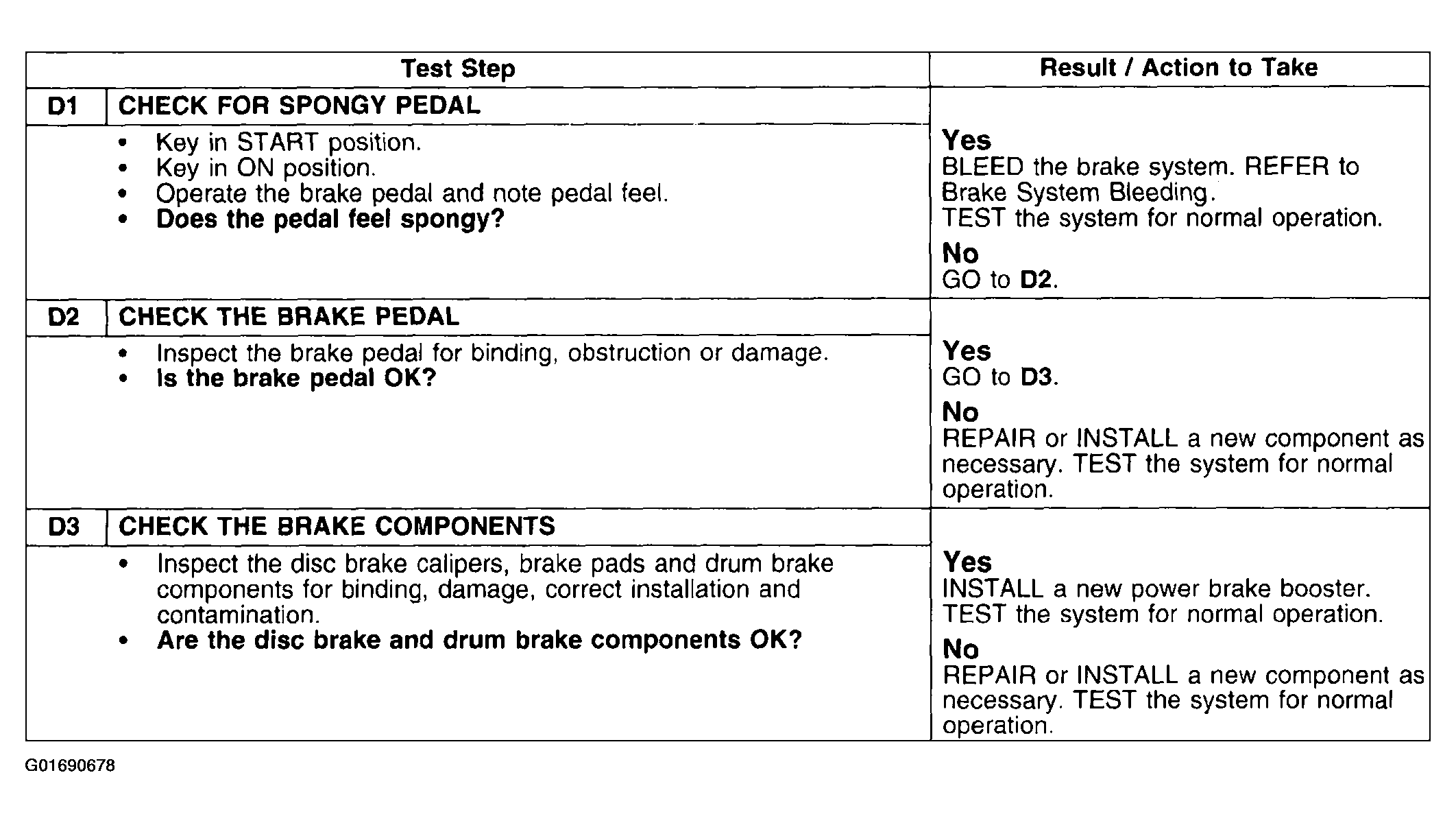

Fig 1: Pinpoint Test D: Excessive/Erratic Brake Pedal Travel (Steps D1-D3)
G01690678Courtesy of FORD MOTOR CO.
