Pinpoint Test A: Brakes Pull Or Drift

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

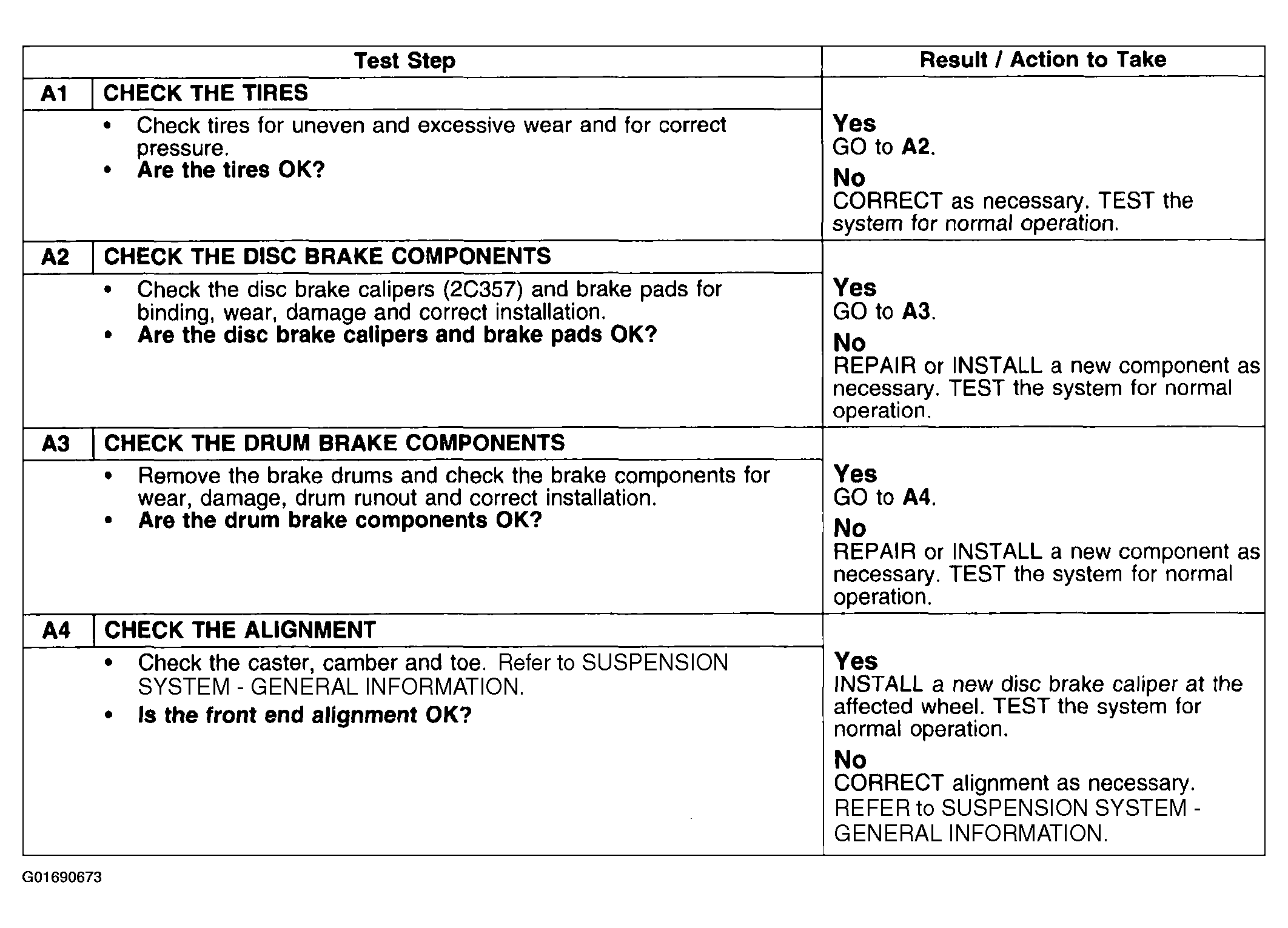

Fig 1: Pinpoint Test A: Brakes Pull Or Drift (Steps A1-A4)
G01690673Courtesy of FORD MOTOR CO.
