Safety Belt Shoulder Height Adjuster - Front Row, Crew Cab and Excursion: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the shoulder safety belt guide.
NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.
1. Position the shoulder safety belt guide cover up.
2. Remove the shoulder safety belt guide nut.
3. Remove the shoulder safety belt guide.

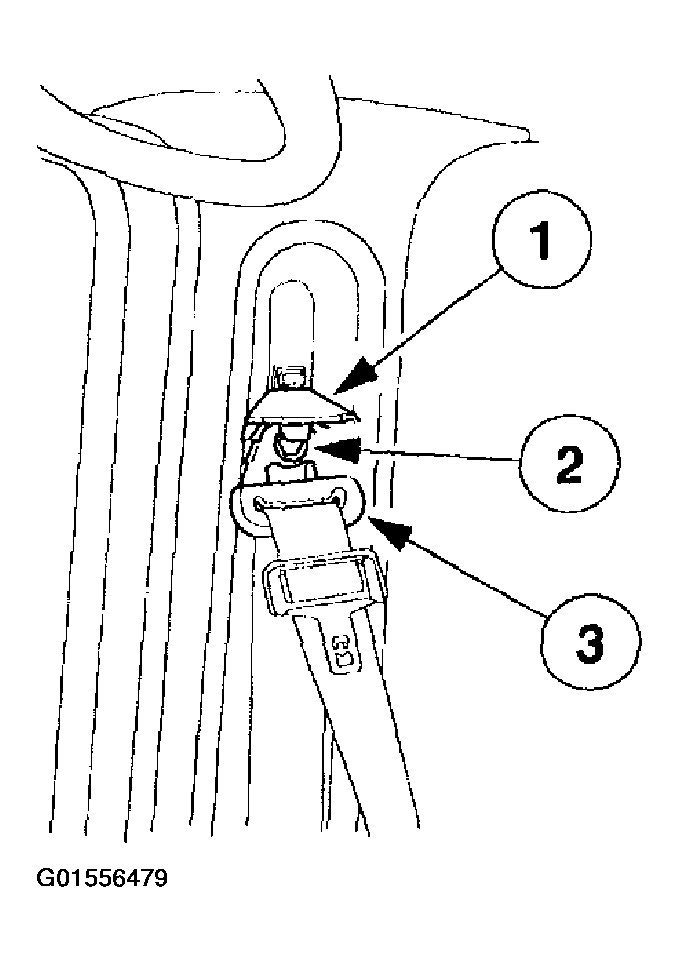

  Fig 1: Removing Shoulder Safety Belt Guide
  Courtesy of FORD MOTOR CO.
Remove the front door scuff plate, the rear door scuff plate, the rear assist handle and the center body pillar trim panel; Refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the height adjuster cover (602B90).

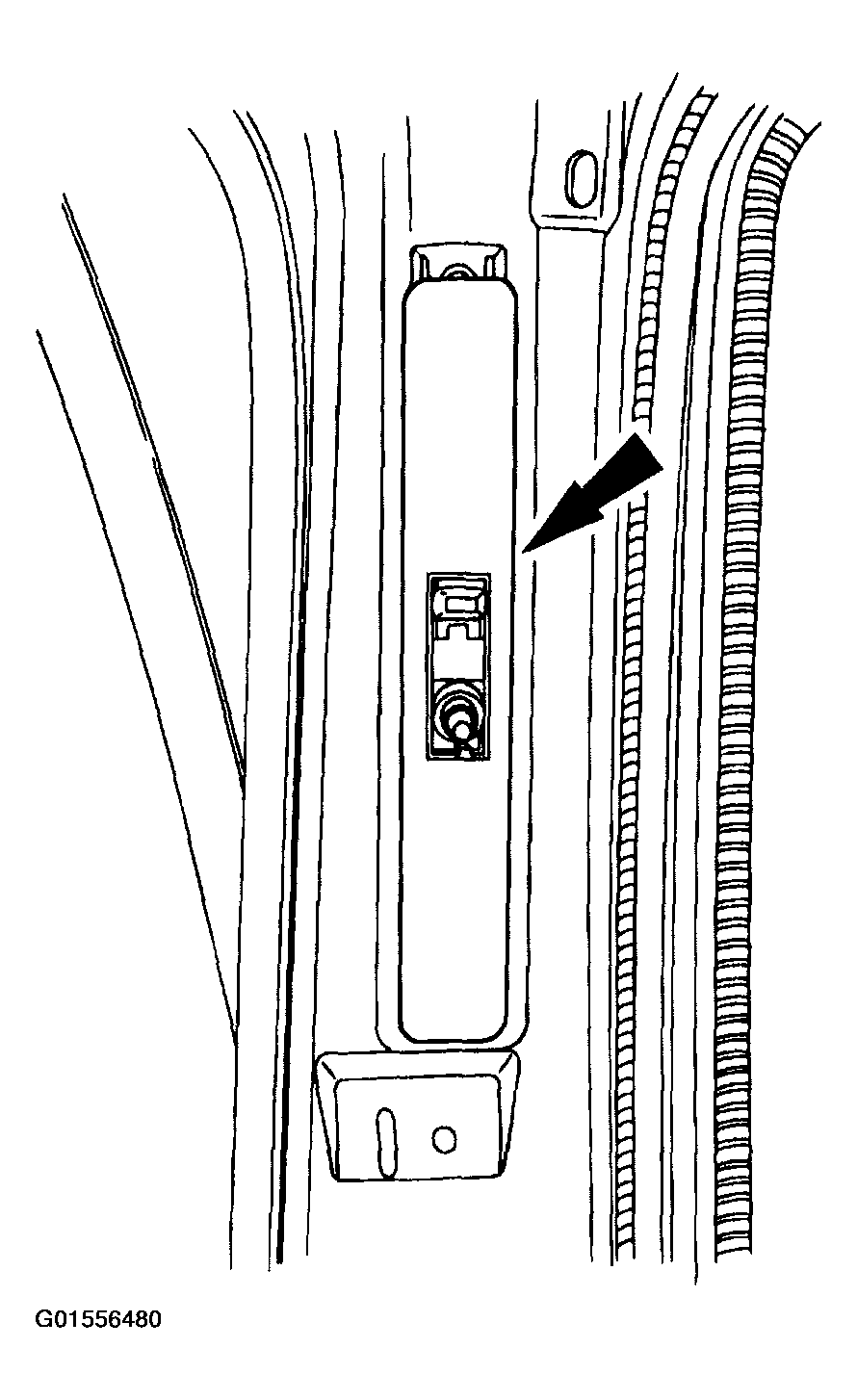

Fig 2: Removing Height Adjuster Cover
Courtesy of FORD MOTOR CO.
Remove the shoulder safety belt height adjuster (602B82).
1. Use the Seat Belt Bolt Bit to remove the bolts.
2. Remove the shoulder safety belt height adjuster.

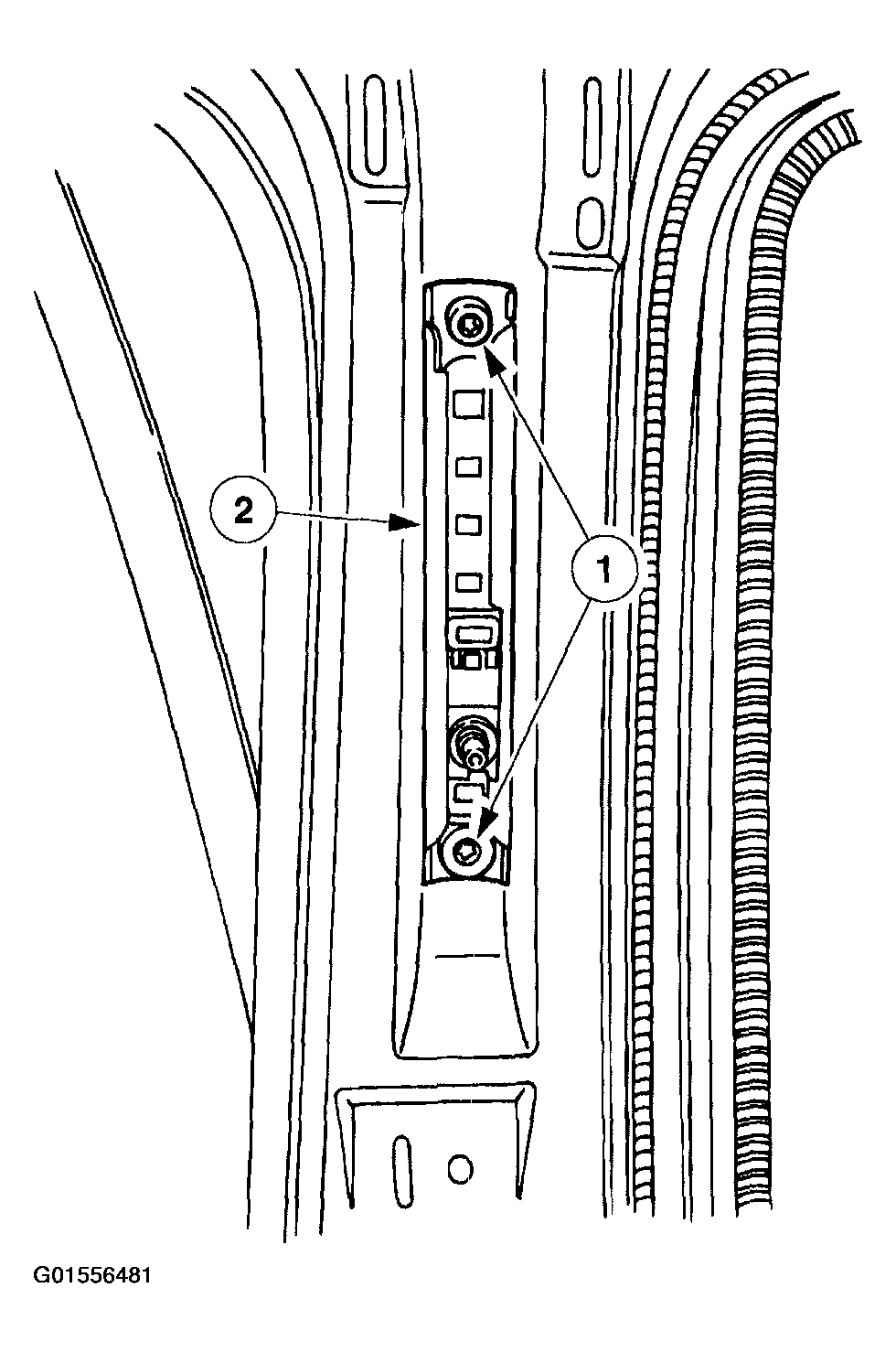

  Fig 3: Removing Shoulder Safety Belt Height Adjuster
  Courtesy of FORD MOTOR CO.
