Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side shield.
  2. Remove the bolt and the safety belt buckle.
    NOTE: The LH side is shown, the RH side is similar.

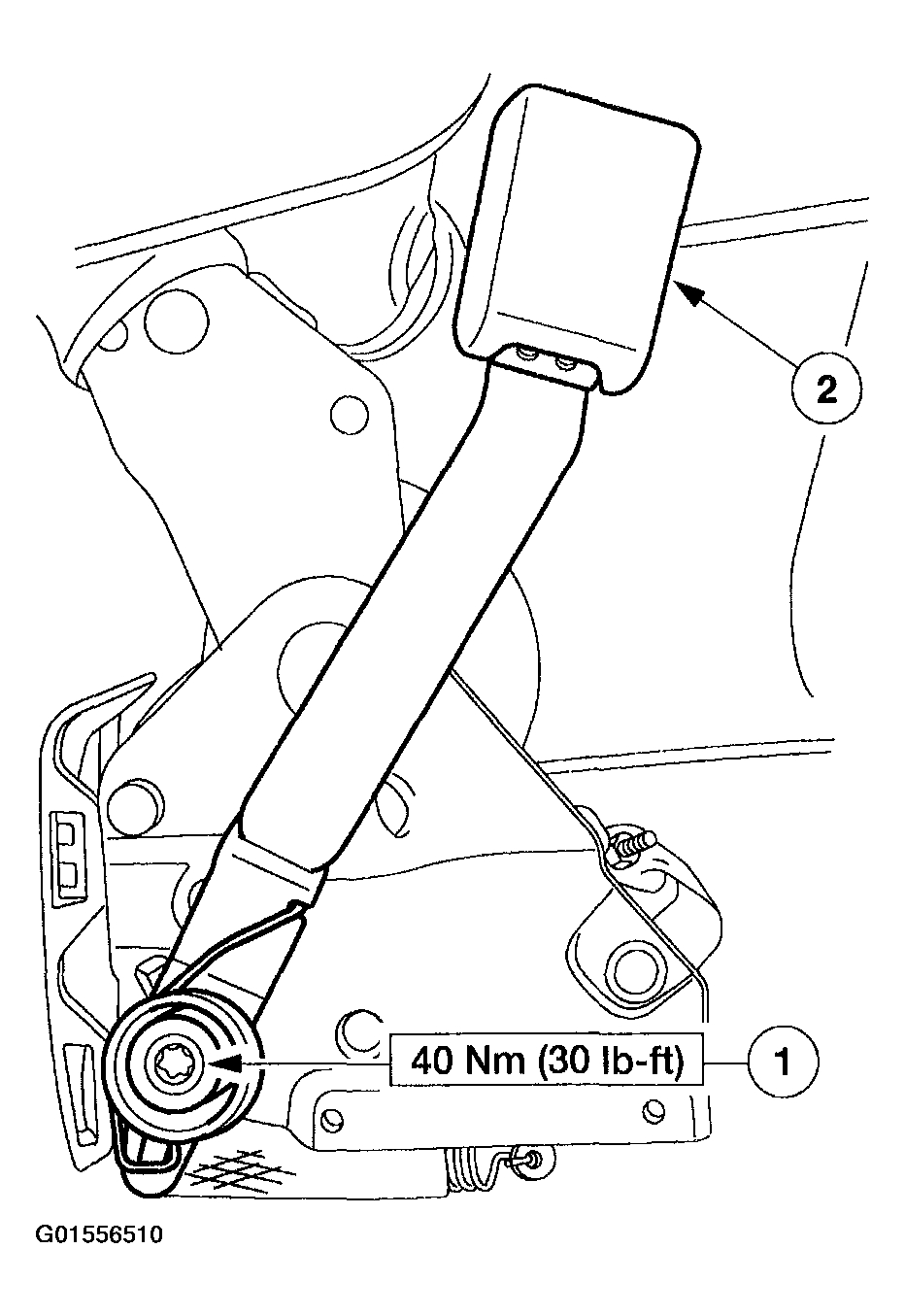

    Fig 1: Removing Bolt And Safety Belt Buckle
    G01556510Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    NOTE: Make sure to tighten the bolts to specification.
    • See the Removal Procedure or Specifications for torque specifications.
  4. Check the active restraints for correct operation.
