Safety Belt Buckle - Second Row, 60/40, LH, Excursion: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install the safety belt retractor.
1. Position the safety belt retractor under the seat frame.
2. Align the tab to the slot in the floor.
3. Install the bolt.

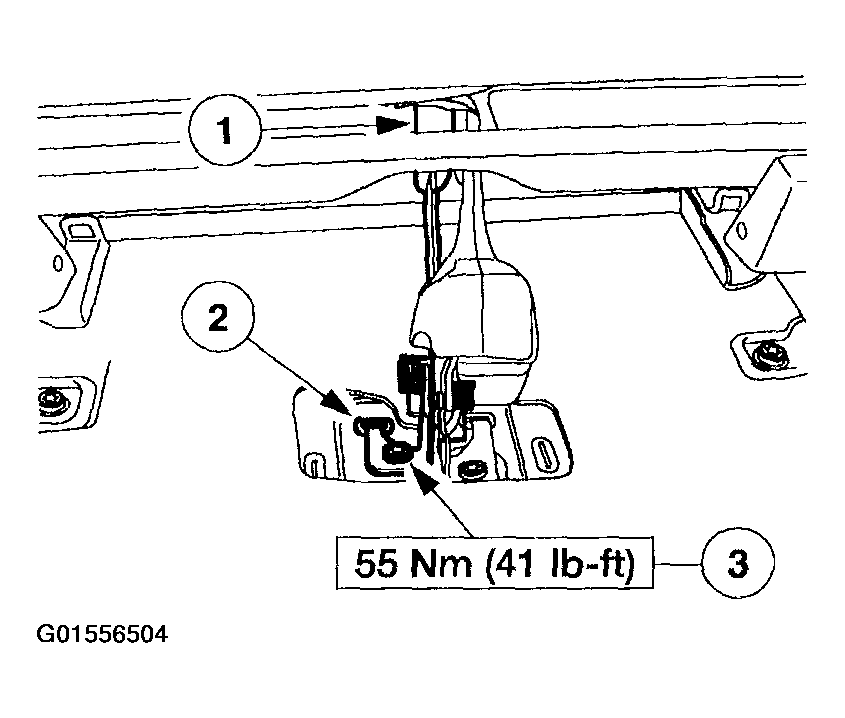

  Fig 1: Installing Safety Belt Retractor
  Courtesy of FORD MOTOR CO.
Install the safety belt buckle cover.

Fig 2: Installing Safety Belt Buckle Cover
Courtesy of FORD MOTOR CO.
Adjust the seat to the full forward and rearward positions a few times to ensure safety belt and buckle accessibility.
Check the active restraint system for correct operation. Refer to the DIAGNOSIS AND TESTING .
