Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the second row 40 percent seat forward.
  2. Remove the safety belt buckle.
    1. Using the special tool 501-010 (T77L-2100-A), remove the bolt.
    2. Remove the safety belt buckle.

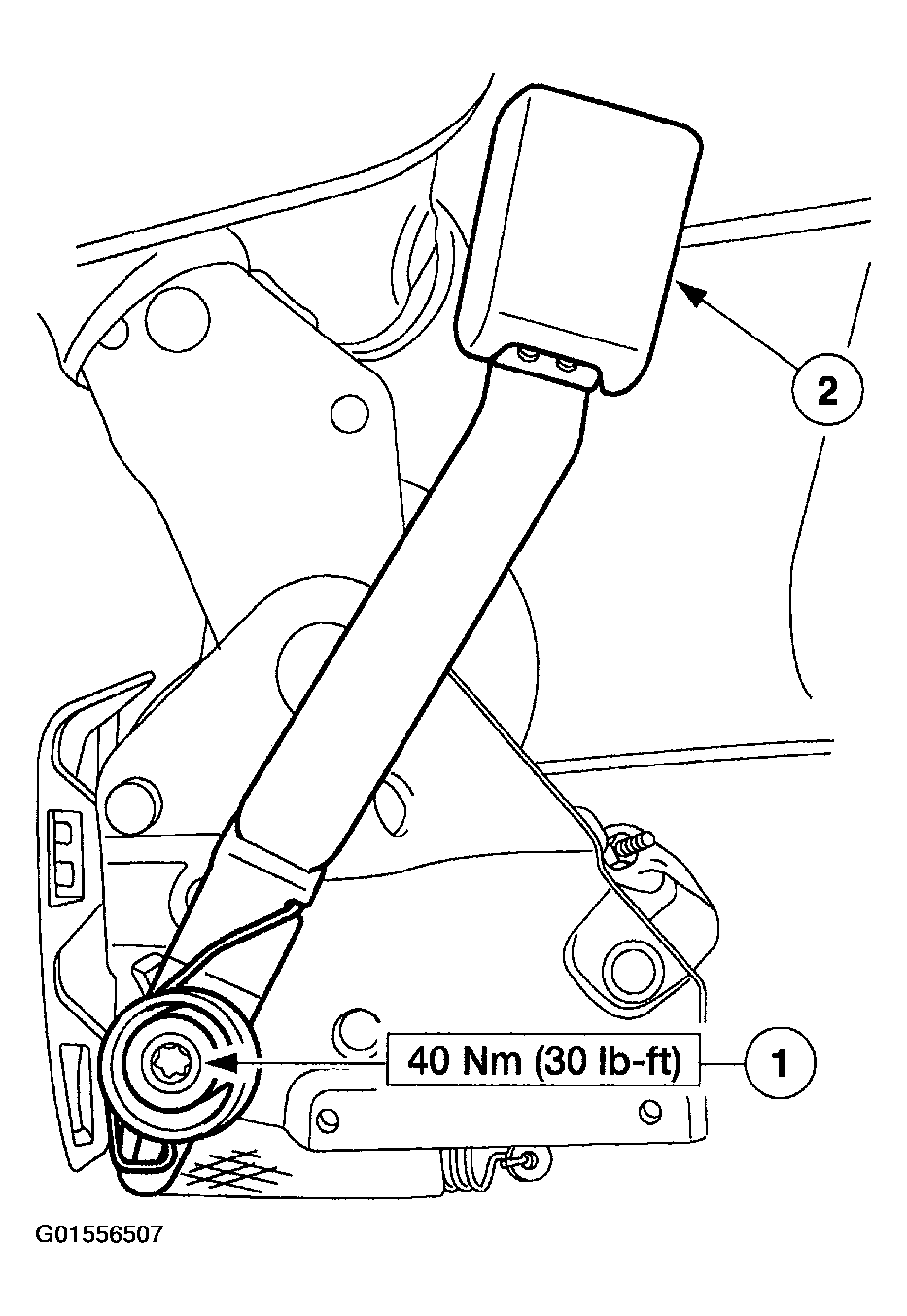

      Fig 1: Removing Safety Belt Buckle
      G01556507Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    NOTE: Make sure to tighten the bolts to specification.
    • See the removal procedure or Specifications for torque specifications.
  4. Check the restraint system for correct operation.
