Safety Belt - Front 40/20/40 Seat, Center: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the safety belt webbing is not twisted prior to installation.

NOTE: Make sure to tighten nuts to specification.

Install the safety belt.
1. Position the safety belt anchor.
2. Position the safety belt in the retaining straps. Install the nut.

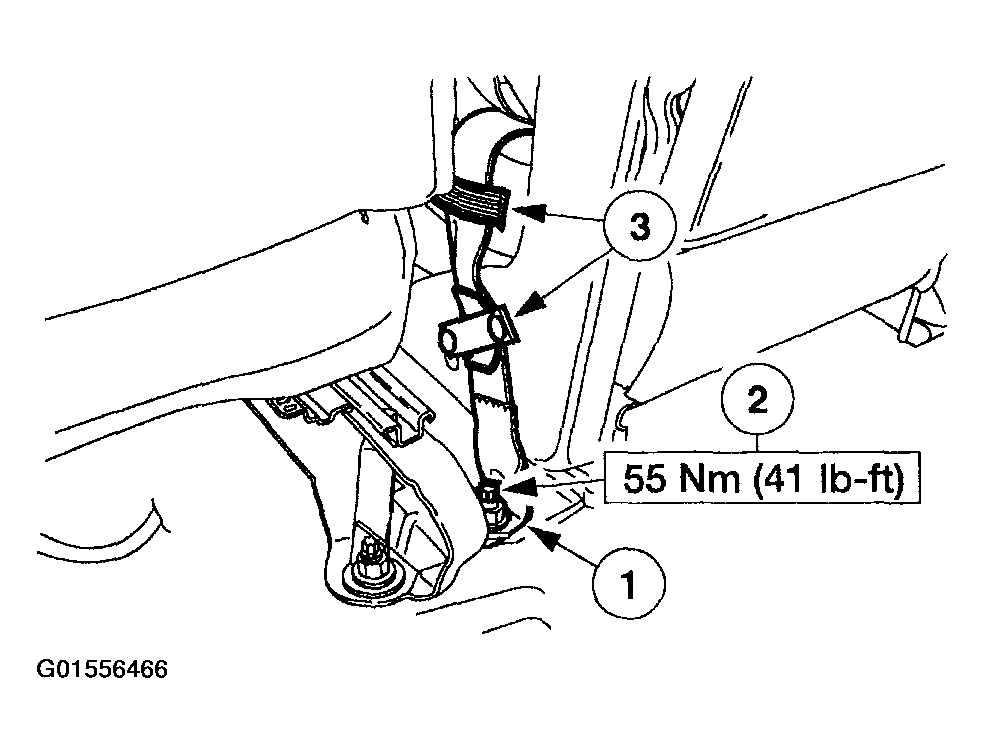

  Fig 1: Positioning Safety Belt In Retaining Straps
  Courtesy of FORD MOTOR CO.
Install the safety belt buckle.
1. Position the safety belt buckle.
2. Make sure the safety belt buckle is positioned in the retaining strap.
3. Install the safety belt buckle nut.

  Fig 2: Installing Safety Belt Buckle
  Courtesy of FORD MOTOR CO.
Check the active restraint system for correct operation.
