Retractor - Rear Safety Belt and Tongue, SuperCab: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the shoulder safety belt guide.
NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.
1. Position the shoulder safety belt guide cover up.
2. Use the Seat Belt Bolt Bit to remove the bolt.
3. Remove the shoulder safety belt guide.

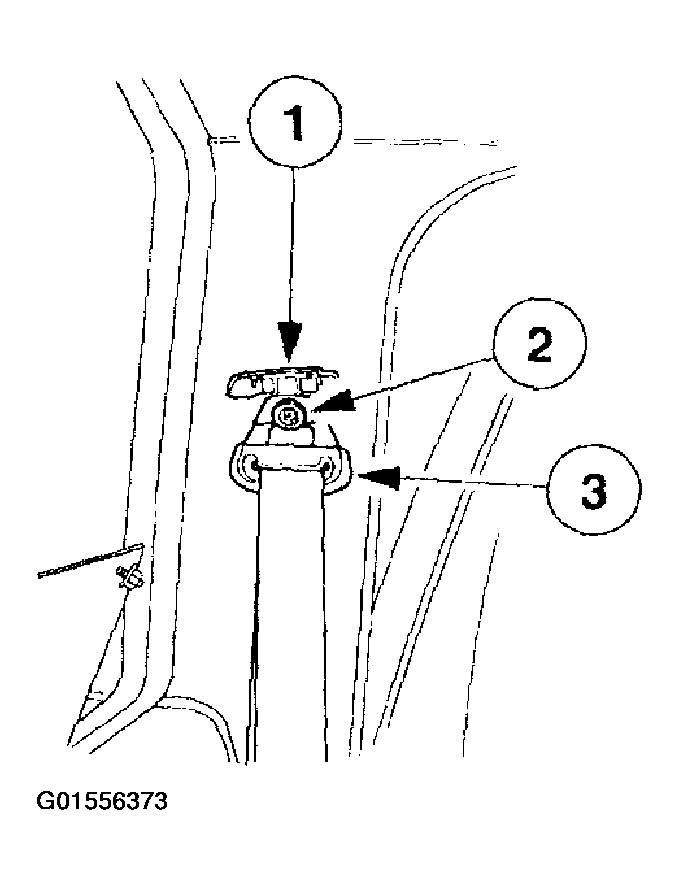

  Fig 1: Removing Shoulder Safety Belt Guide
  Courtesy of FORD MOTOR CO.
Remove the rear seat; Refer to SEATING .
Remove the rear seat back upper moulding.
Remove the safety belt anchor.
1. Use the Seat Belt Bolt Bit to remove the bolt.
2. Remove the safety belt anchor.

  Fig 2: Removing Safety Belt Anchor
  Courtesy of FORD MOTOR CO.
Remove the front door scuff plate and the rear center trim panel.
Remove the safety belt retractor.
1. Use the Seat Belt Bolt Bit to remove the bolt.
2. Remove the safety belt retractor.

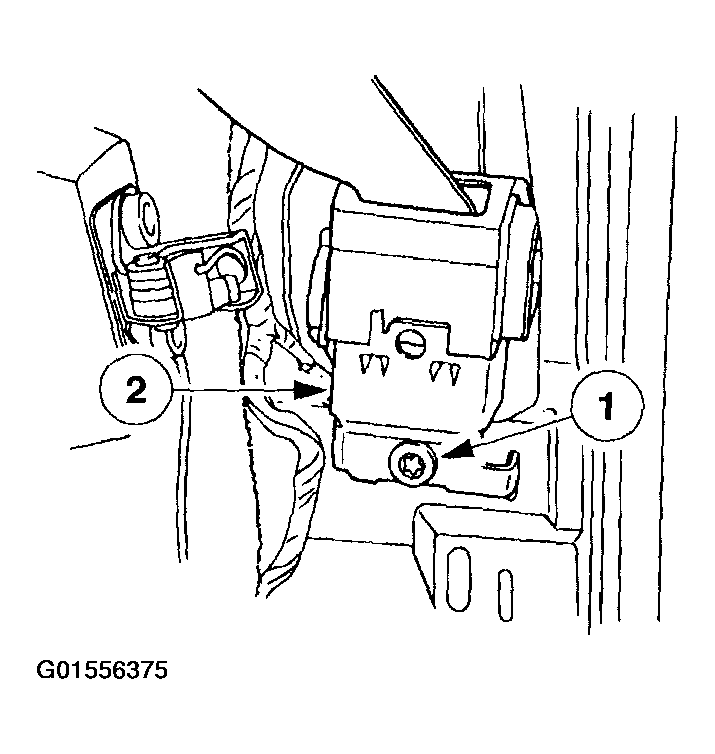

  Fig 3: Removing Safety Belt Retractor
  Courtesy of FORD MOTOR CO.
