Rear Safety Belt Retractor - Second and Third Row, Outboard, Excursion: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: New safety belt buckles, height adjusters, center adjust tongues and belts and retractors can be installed separately. However, if a safety belt assembly was in use during a collision, a new belt and retractor must be installed as well as the center adjust tongue and belt and buckle assembly or the center adjust tongue and the cable and buckle assembly. When installing new safety belts and buckles, height adjusters, safety cables and buckles, center adjust tongues and belt and retractors, use only the parts specified in the Ford Master Parts Catalogs for the make and model of the vehicle being repaired. Safety belt assemblies must not be interchanged between vehicle models.

Both sides

Adjust the second row seat to its most forward position.
Remove the third row seat.
Remove the second and third row seat belt guide panel inserts.

Fig 1: Removing Second And Third Row Seat Belt Guide Panel Inserts
Courtesy of FORD MOTOR CO.

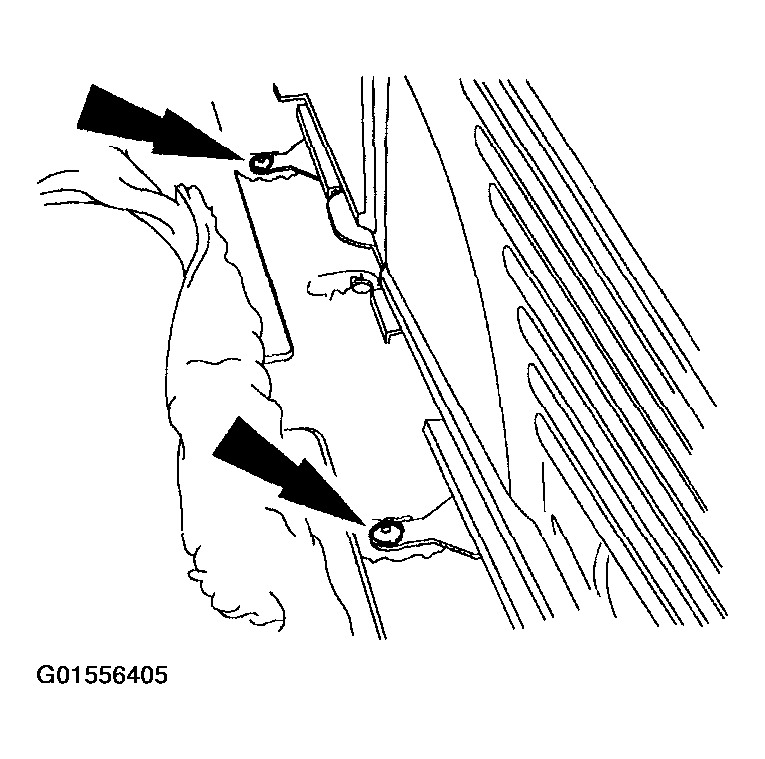

Pull to release the retaining clips and remove the floor finish panel.

Fig 2: Removing Floor Finish Panel
Courtesy of FORD MOTOR CO.

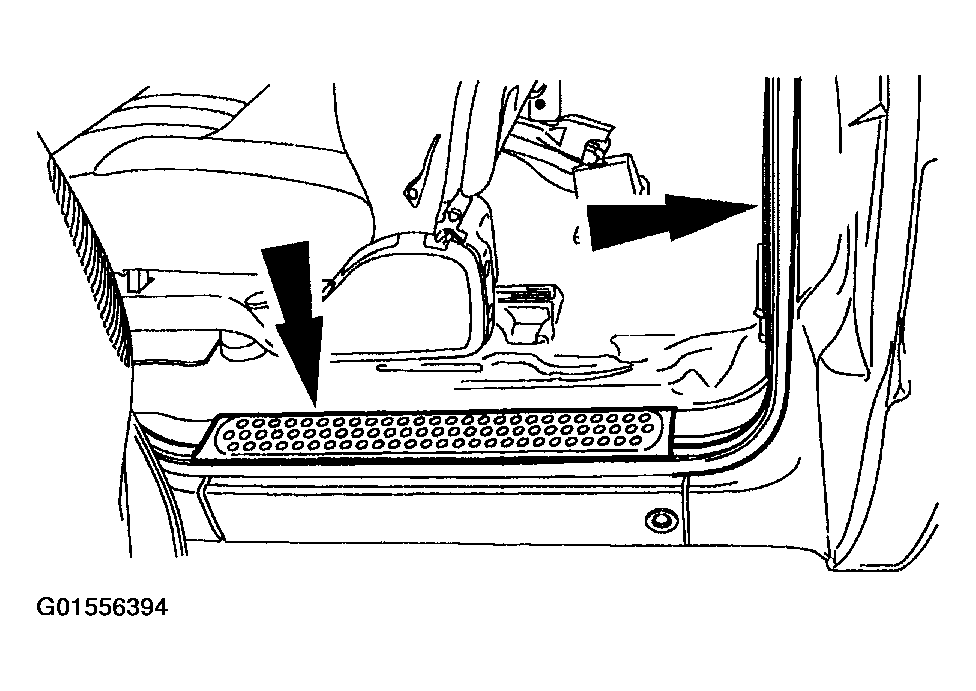

Pull up to release the retaining clips and remove the rear door scuff plate. Peel the weather-stripping to access the C-pillar and quarter trim panels.

Fig 3: Removing Rear Door Scuff Plate
Courtesy of FORD MOTOR CO.

Passenger side only

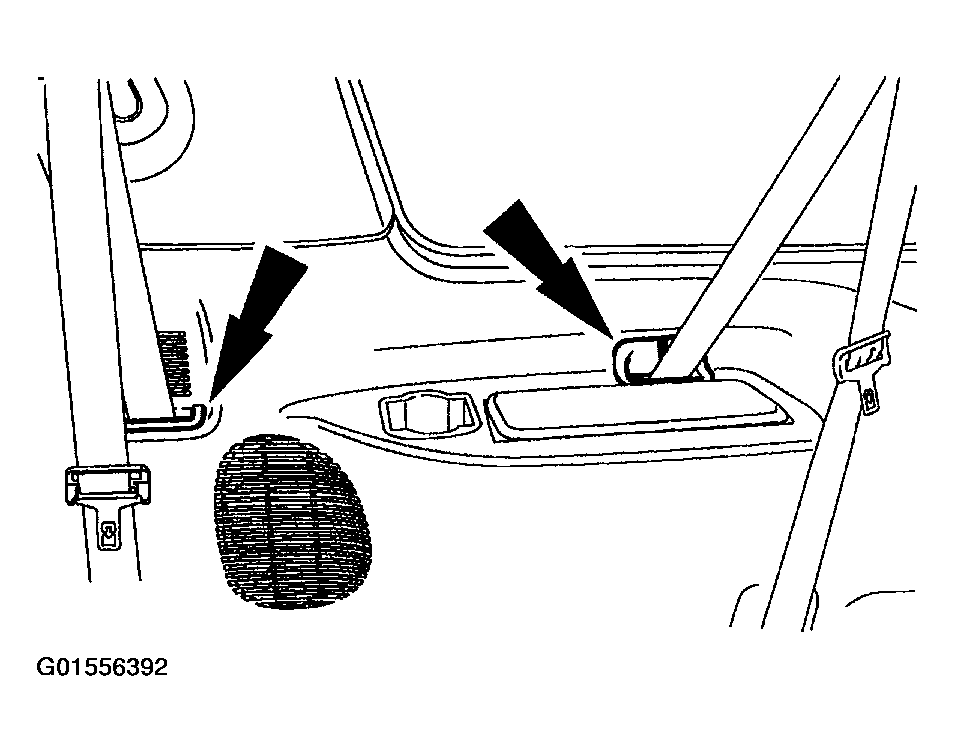

Pull down to release the retaining clips and remove the rear hatch upper trim panel.

Fig 4: Removing Rear Hatch Upper Trim Panel
Courtesy of FORD MOTOR CO.

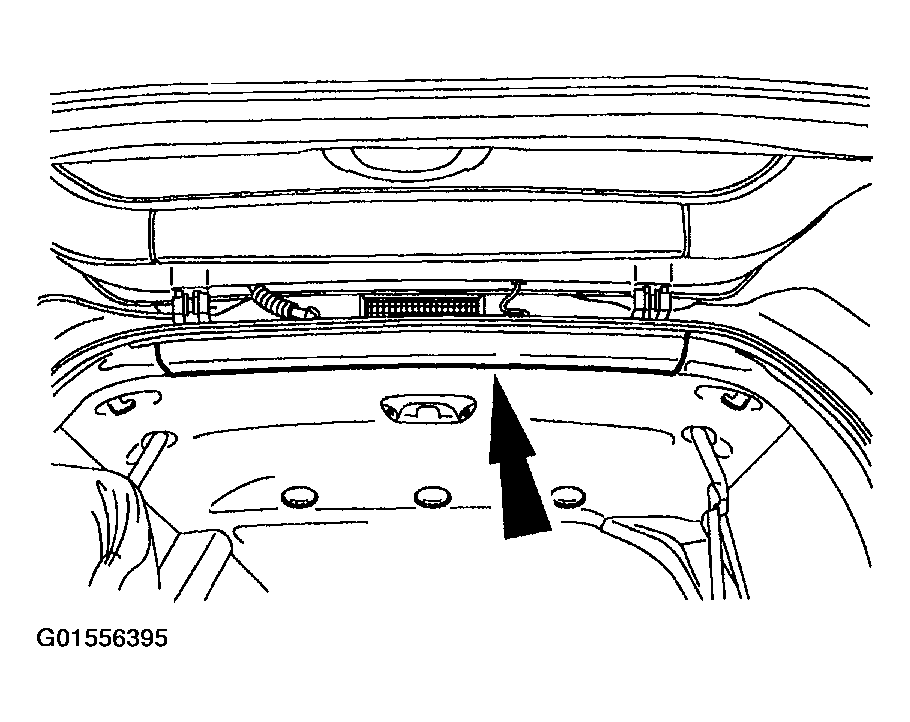

Pull up to release the retaining clips and remove the rear hatch scuff plate.

Fig 5: Removing Rear Hatch Scuff Plate
Courtesy of FORD MOTOR CO.

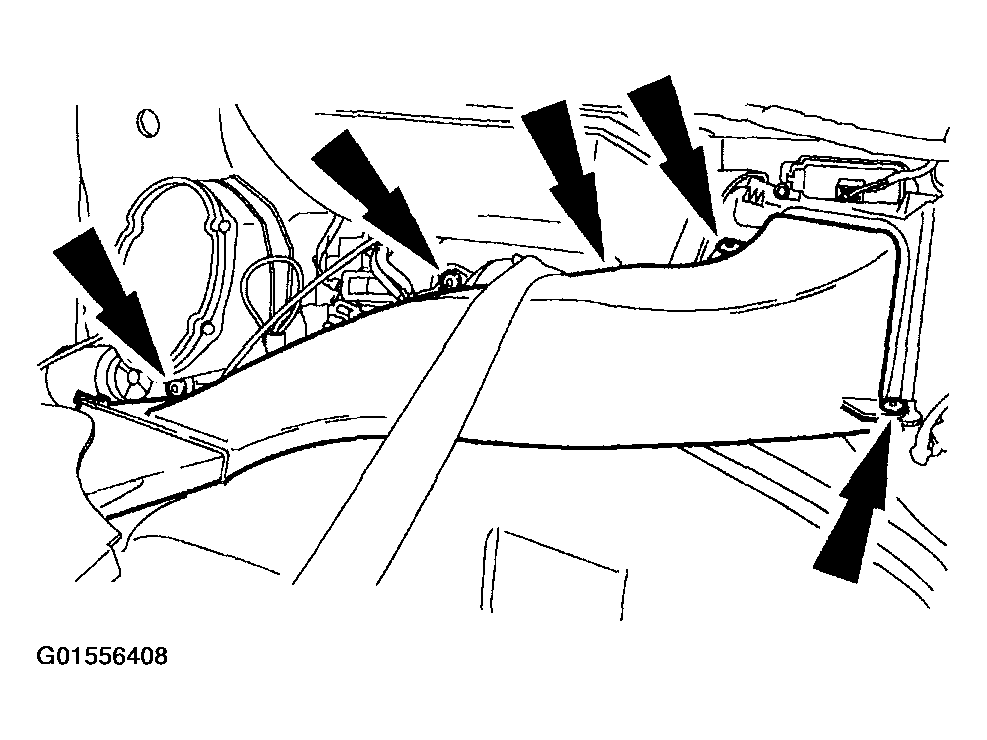

Pull out to release the retaining clips and remove the D-pillar trim panel.

Fig 6: Removing D-Pillar Trim Panel
Courtesy of FORD MOTOR CO.

Driver side only
Remove the spare tire.
Remove the bolts and the spare tire mounting plate.

Fig 7: Removing Bolts And Spare Tire Mounting Plate
Courtesy of FORD MOTOR CO.

Both sides
Peel the floor covering back along the rear quarter trim panel.

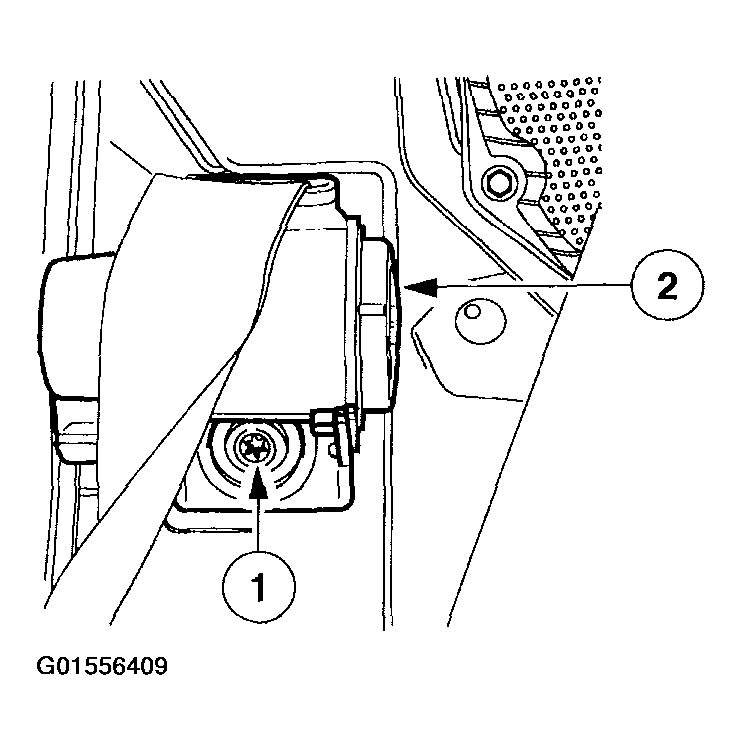

Remove the second row safety belt anchor.
1. Using the special tool 501-010 (T77L-2100-A), remove the bolt.
2. Remove the safety belt anchor.

  Fig 8: Removing Safety Belt Anchor Bolt-Second Row
  Courtesy of FORD MOTOR CO.
Remove the third row safety belt anchor.
1. Using the special tool 501-010 (T77L-2100-A), remove the bolt.
2. Remove the safety belt anchor.

  Fig 9: Removing Safety Belt Anchor Bolt-Third Row
  Courtesy of FORD MOTOR CO.
Pull out where indicated on the second row safety belt guide cover and open.

Fig 10: Pulling Out On Second Row Safety Belt Guide Cover And Open
Courtesy of FORD MOTOR CO.
Remove the second row shoulder safety belt guide.
CAUTION: If the safety belt retractor is to be reused, Do not allow the safety belt to be retracted all the way into the retractor. Doing so may cause the retractor to lock and not release the safety belt.

NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.
1. Remove the nut.
2. Remove the shoulder safety belt guide.

  Fig 11: Removing Shoulder Safety Belt Guide-Second Row
  Courtesy of FORD MOTOR CO.
Remove the third row shoulder safety belt guide.
CAUTION: If the safety belt retractor is to be reused, do not allow the safety belt to be retracted all the way into the retractor. Doing so may cause the retractor to lock and not release the safety belt.

NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.
1. Peel the shoulder safety belt guide cover down to access the bolt.
2. Using the special tool 501-010 (T77L-2100-A), remove the bolt.
3. Remove the shoulder safety belt guide.

  Fig 12: Removing Shoulder Safety Belt Guide-Third Row
  Courtesy of FORD MOTOR CO.
Pull to release the retaining clips and remove the C-pillar trim panel.

Fig 13: Removing C-Pillar Trim Panel
Courtesy of FORD MOTOR CO.
Remove the pin-type retainers out of the quarter trim panel.
NOTE: Passenger side is shown, driver side is similar.

Fig 14: Removing Pin-Type Retainers Out Of Quarter Trim Panel
Courtesy of FORD MOTOR CO.
Pull out to release the retaining clips and position the quarter trim panel out enough to disconnect the power point electrical connector.
NOTE: Driver side is shown, passenger side is similar.

NOTE: Drivers side front half quarter trim panel is only necessary to remove.

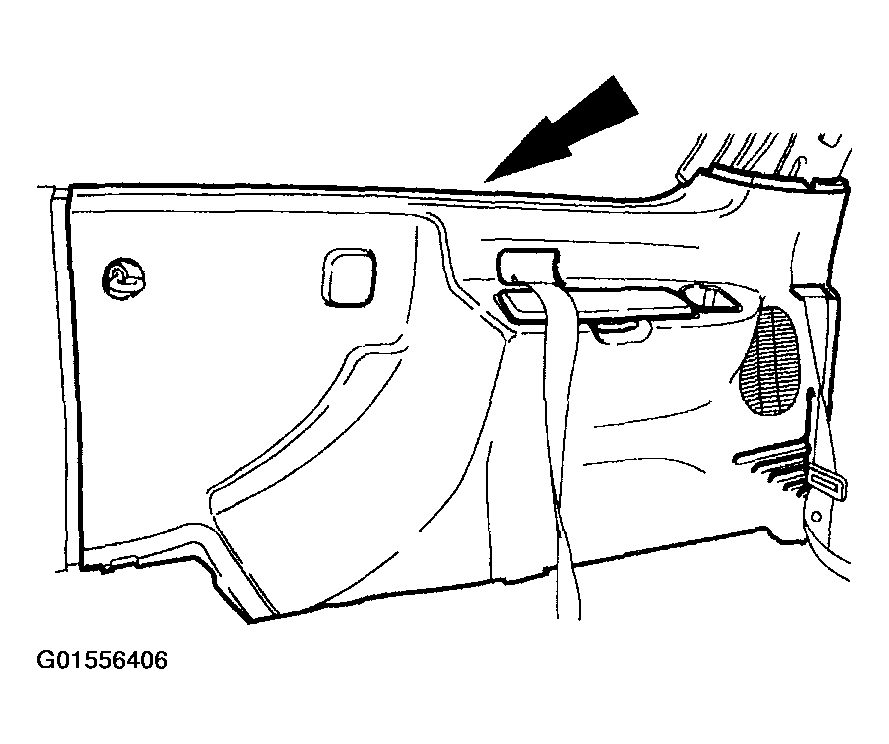

Fig 15: Positioning Quarter Trim Panel
Courtesy of FORD MOTOR CO.
Disconnect the power point electrical connector and remove the quarter trim panel.
NOTE: Driver side is shown, passenger side is similar.

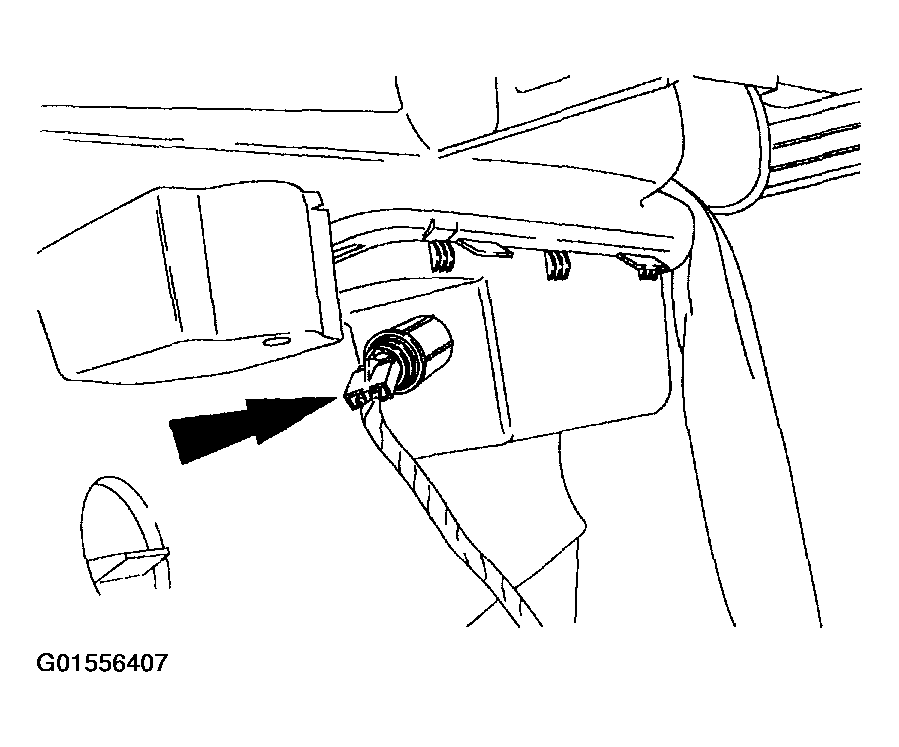

Fig 16: Disconnecting Power Point Electrical Connector
Courtesy of FORD MOTOR CO.

Passenger side with auxiliary climate control only
Remove the pin-type retainers and remove the duct.

Fig 17: Removing Pin-Type Retainers And Duct
Courtesy of FORD MOTOR CO.

Second row retractor only
Remove the second row safety belt retractor.
1. Using the special tool 501-010 (T77L-2100-A), remove the bolt.
2. Remove the second row safety belt retractor.

  Fig 18: Removing Second Row Safety Belt Retractor
  Courtesy of FORD MOTOR CO.
Third row retractor only
Remove the third row safety belt retractor.
1. Using the special tool 501-010 (T77L-2100-A), remove the bolt.
2. Remove the third row safety belt retractor.

  Fig 19: Removing Third Row Safety Belt Retractor
