Rear Safety Belt Retractor - Second and Third Row, Outboard, Excursion: Installation

Third row retractor only

1. Install the third row safety belt retractor.
   CAUTION: Do not  remove the shipping clip until the shoulder safety belt guide is secured in position. Allowing the safety belt to be retracted further into the safety belt retractor may cause the safety belt retractor to lock and not release the safety belt.
   1. Position the third row safety belt retractor to the body.
   2. Using the special tool 501-010 (T77L-2100-A), install the bolt.

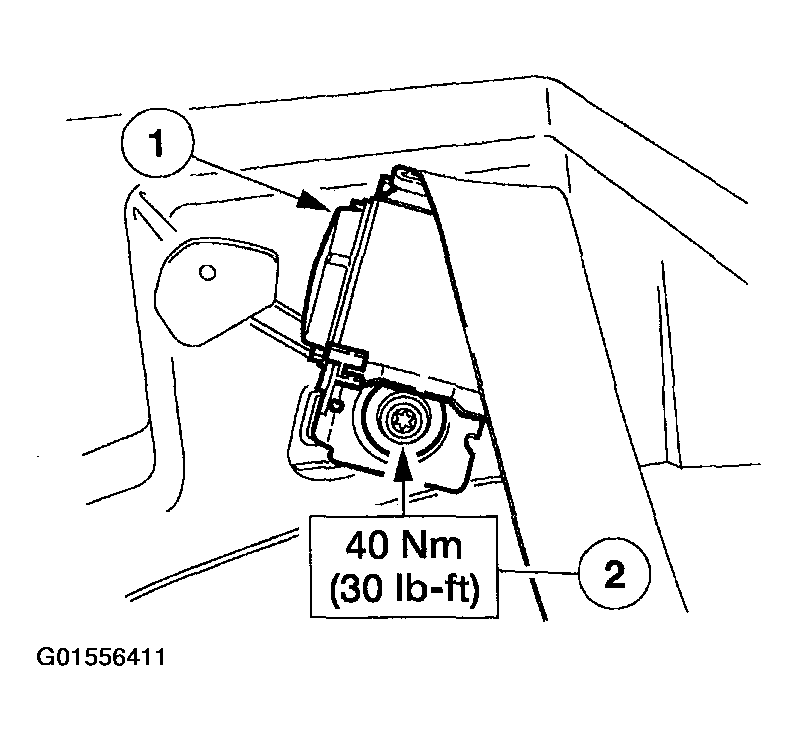

      Fig 1: Installing Third Row Safety Belt Retractor

      Courtesy of FORD MOTOR CO.

   Second row retractor only

2. Install the second row safety belt retractor.
   CAUTION: Do not  remove the shipping clip until the shoulder safety belt guide is secured in position. Allowing the safety belt to be retracted further into the safety belt retractor may cause the safety belt retractor to lock and not release the safety belt.
   1. Position the second row safety belt retractor to the body.
   2. Using the special tool 501-010 (T77L-2100-A), install the bolt.

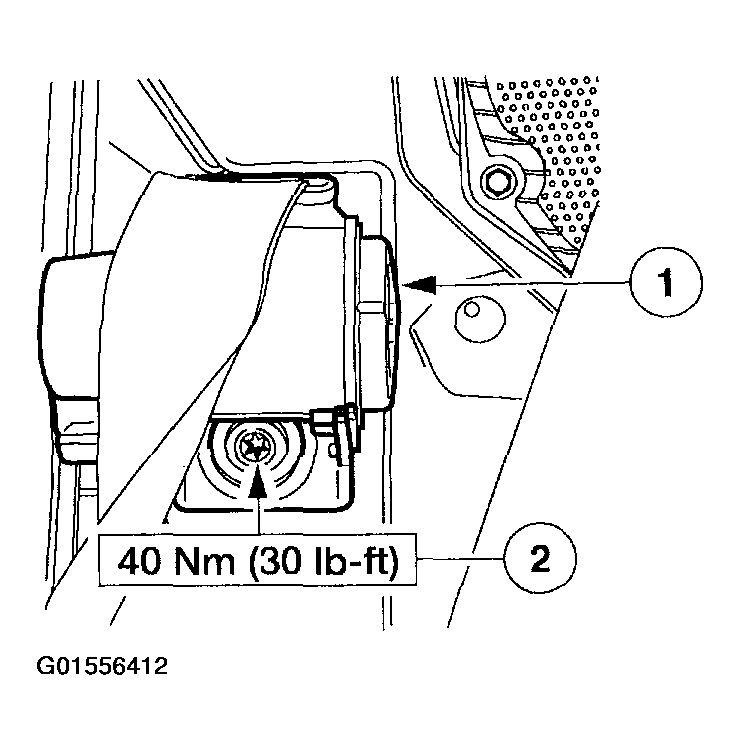

      Fig 2: Installing Second Row Safety Belt Retractor

      Courtesy of FORD MOTOR CO.

   Passenger side with auxiliary climate control only

3. Position the climate control duct and install the pin-type retainers.

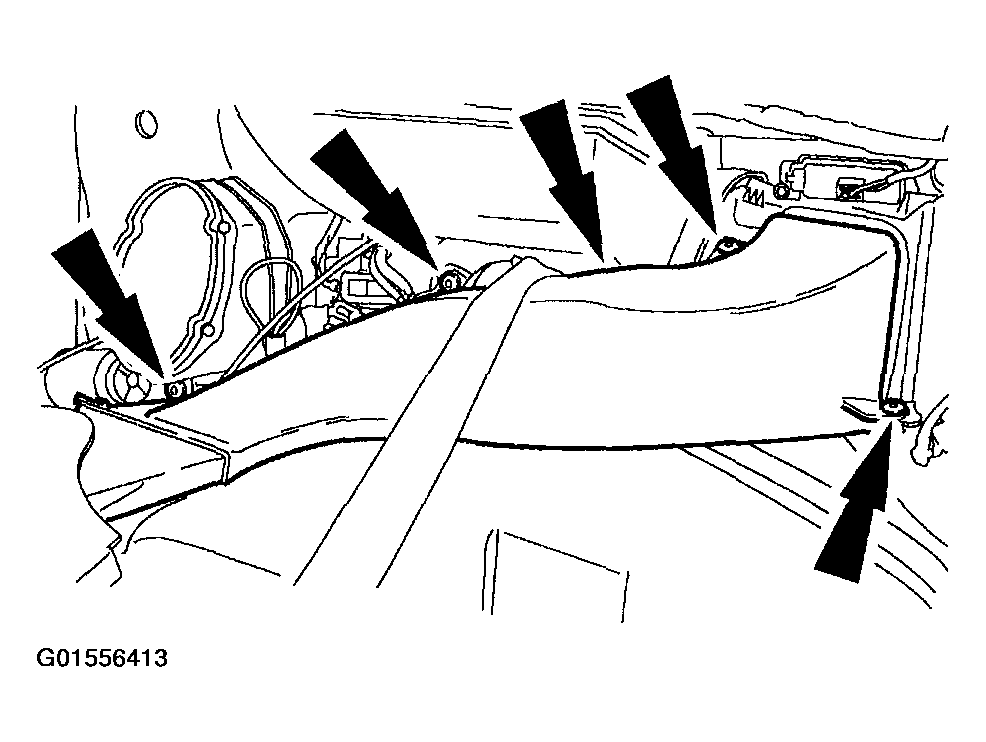

   Fig 3: Installing Pin-Type Retainers

   Courtesy of FORD MOTOR CO.

   Both sides

4. Route the second and third row safety belt anchors and guides through the B-pillar trim panel.
5. Position the quarter trim panel to the body and connect the power point electrical connector.
   NOTE: Do not  secure the quarter trim panel as the shipping clip(s) will need to be removed from the safety belt retractor(s) later.
   NOTE: Driver side is shown, passenger side is similar.

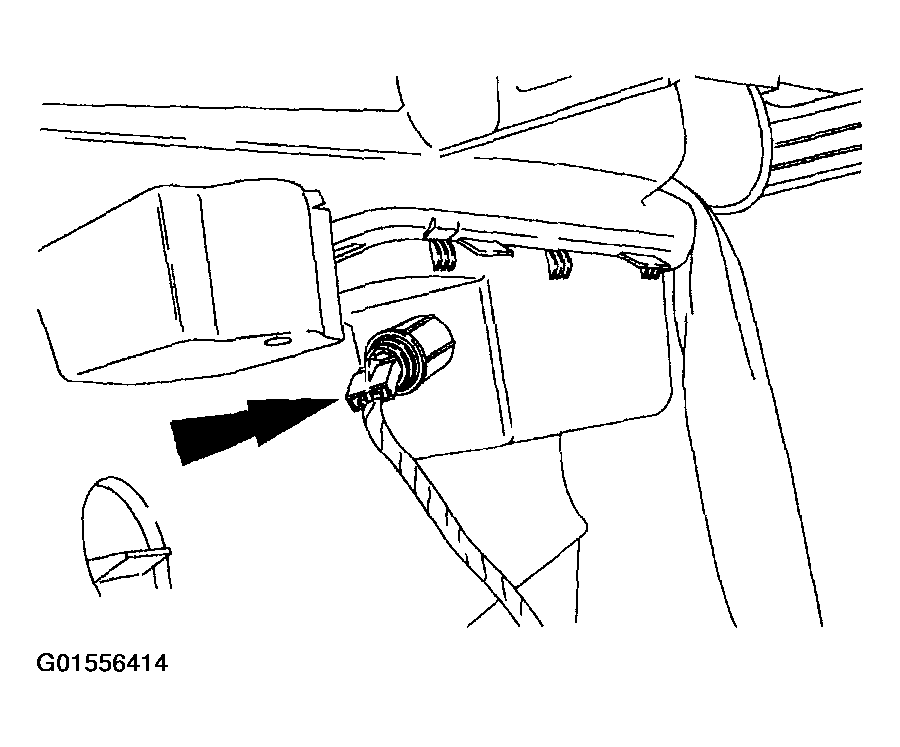

   Fig 4: Connecting Power Point Electrical Connector

   Courtesy of FORD MOTOR CO.
6. Install the third row shoulder safety belt guide.
   NOTE: Make sure the safety belt webbing is not twisted prior to installation.
   1. Position the shoulder safety belt guide.
   2. Using the special tool 501-010 (T77L-2100-A), install the bolt.
   3. Reposition the shoulder safety belt guide cover.
      Fig 5: Installing Third Row Shoulder Safety Belt Guide

      Courtesy of FORD MOTOR CO.
7. Install the second row shoulder safety belt guide.
   NOTE: Make sure the safety belt webbing is not twisted prior to installation.
   NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.
   1. Position the shoulder safety belt guide.
   2. Install the nut.
   3. Close the shoulder safety belt guide cover.
      Fig 6: Installing Second Row Shoulder Safety Belt Guide

      Courtesy of FORD MOTOR CO.
8. Remove the shipping clip(s) from the safety belt retractor(s).
   Fig 7: Removing Shipping Clip(s) From Safety Belt Retractor(s)

   Courtesy of FORD MOTOR CO.
9. Position the quarter trim panel and push in on it securing the fasteners.
   NOTE: Driver side is shown, passenger side is similar.

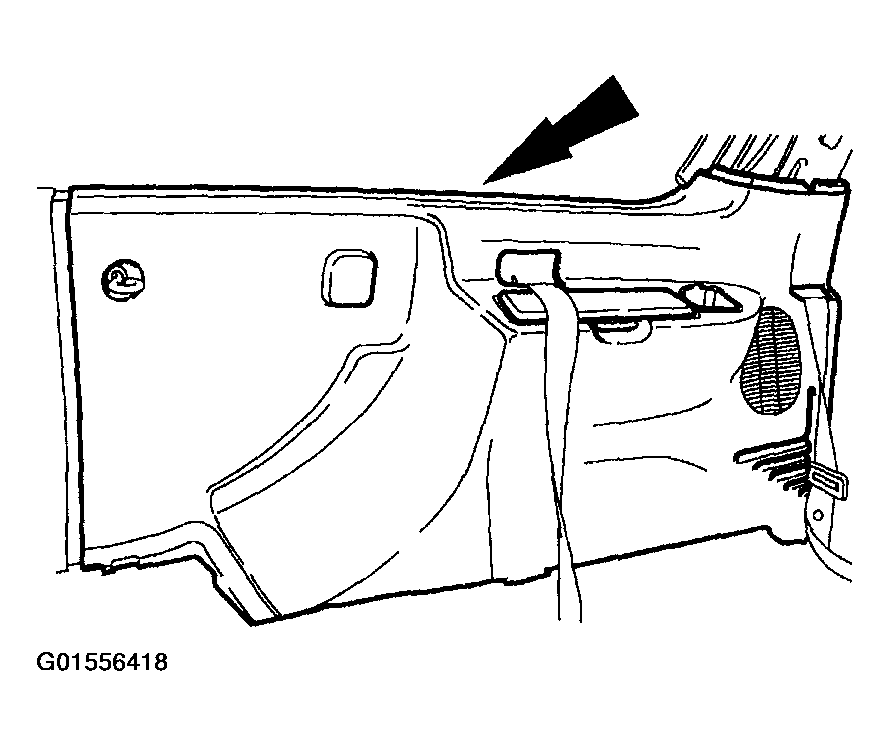

   Fig 8: Positioning Quarter Trim Panel

   Courtesy of FORD MOTOR CO.
10. Install the third row safety belt anchor.
    NOTE: Make sure the safety belt webbing is not twisted prior to installation.
    1. Position the safety belt anchor.
    2. Using the special tool 501-010 (T77L-2100-A), install the bolt.
       Fig 9: Installing Third Row Safety Belt Anchor

       Courtesy of FORD MOTOR CO.
11. Install the second row safety belt anchor.
    NOTE: Make sure the safety belt webbing is not twisted prior to installation.
    1. Position the safety belt anchor.
    2. Using the special tool 501-010 (T77L-2100-A), install the bolt.
       Fig 10: Installing Second Row Safety Belt Anchor

       Courtesy of FORD MOTOR CO.

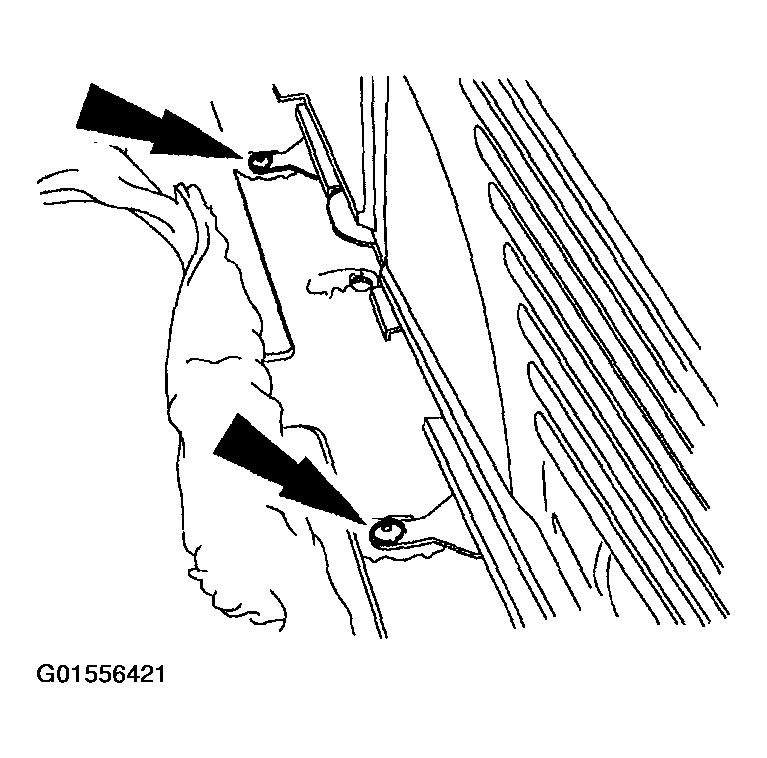

12. Install the pin-type retainers into the quarter trim panel.
    NOTE: Passenger side is shown, driver side is similar.
    Fig 11: Installing Pin-Type Retainers Into Quarter Trim Panel

    Courtesy of FORD MOTOR CO.
13. Reposition the floor covering back along the rear quarter trim panel.
14. Position the C-pillar trim panel and push in on it, securing the fasteners.
    Fig 12: Positioning C-Pillar Trim Panel

    Courtesy of FORD MOTOR CO.

    Driver side only

15. Position the spare tire mounting plate and install the bolts.
    Fig 13: Installing Spare Tire Mounting Plate Bolts

    Courtesy of FORD MOTOR CO.
16. Install the spare tire.

    Passenger side only

17. Position the D-pillar trim panel and push in on it to secure the fasteners.
    Fig 14: Positioning D-Pillar Trim Panel

    Courtesy of FORD MOTOR CO.
18. Position the rear hatch scuff plate and push down on it to secure the fasteners.

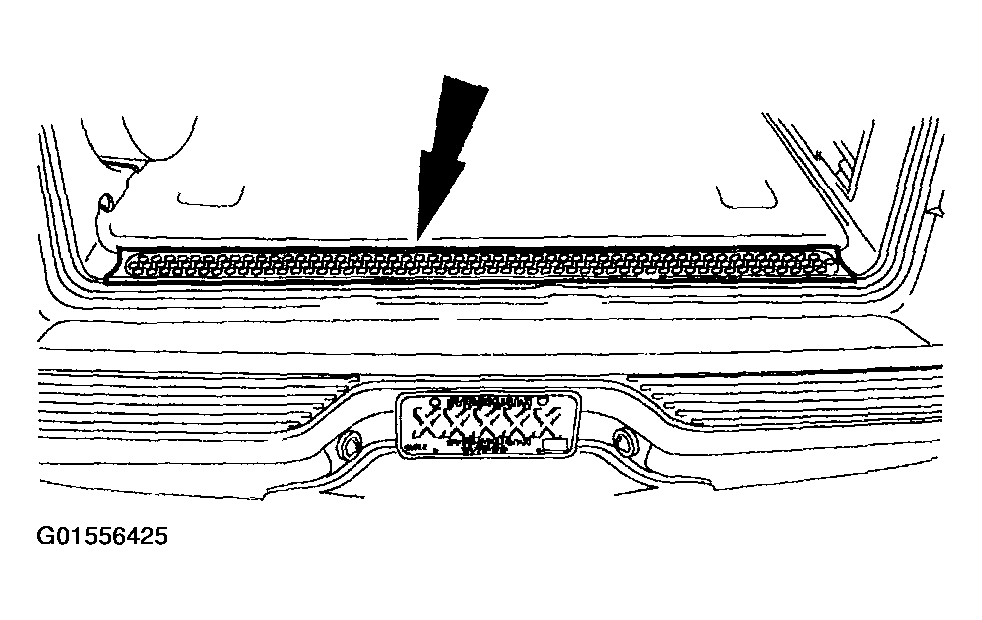

    Fig 15: Positioning Rear Hatch Scuff Plate

    Courtesy of FORD MOTOR CO.

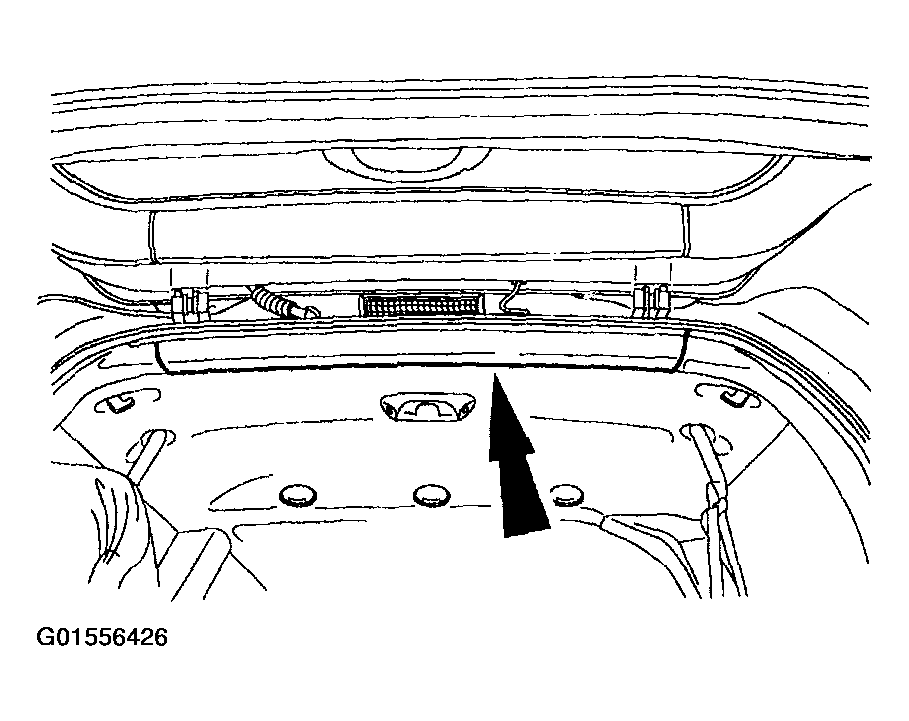

19. Position the rear hatch upper trim panel and push up on it to secure the fasteners.
    Fig 16: Position The Rear Hatch Upper Trim Panel

    Courtesy of FORD MOTOR CO.

    Both sides

20. Reposition the weather-stripping. Position the rear door scuff plate and push down on it to secure the fasteners.

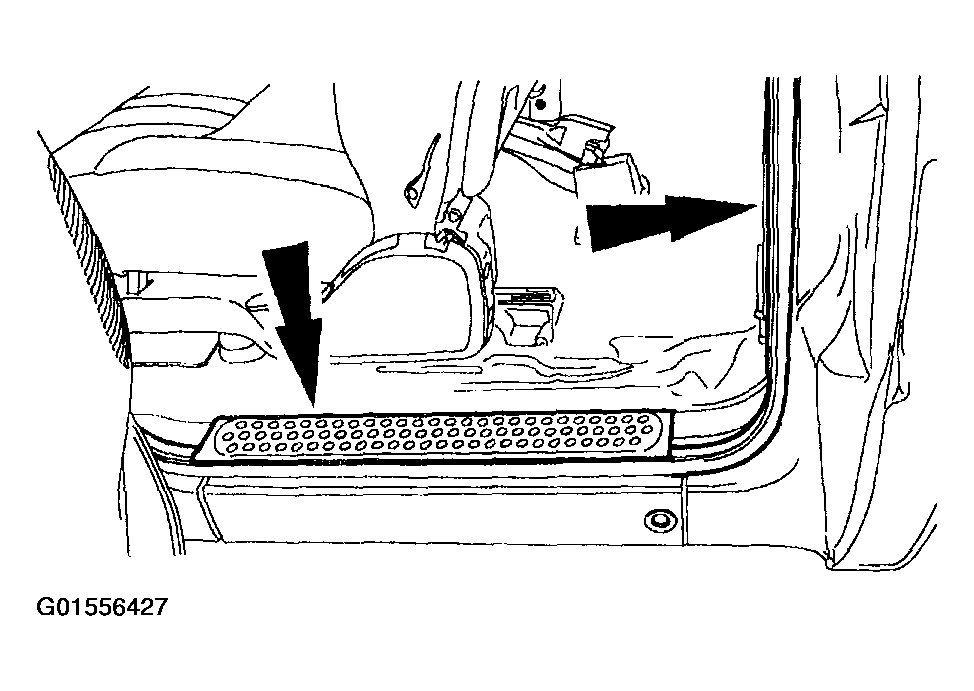

    Fig 17: Position The Rear Door Scuff Plate

    Courtesy of FORD MOTOR CO.
21. Position the floor finish panel and push down on it to secure the fasteners.

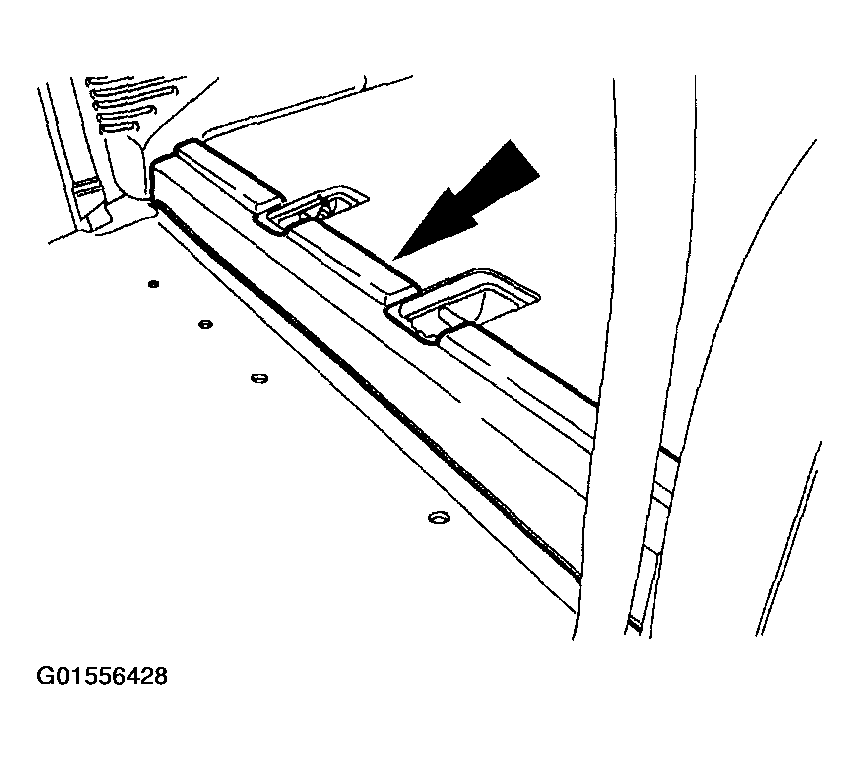

    Fig 18: Position The Floor Finish Panel

    Courtesy of FORD MOTOR CO.

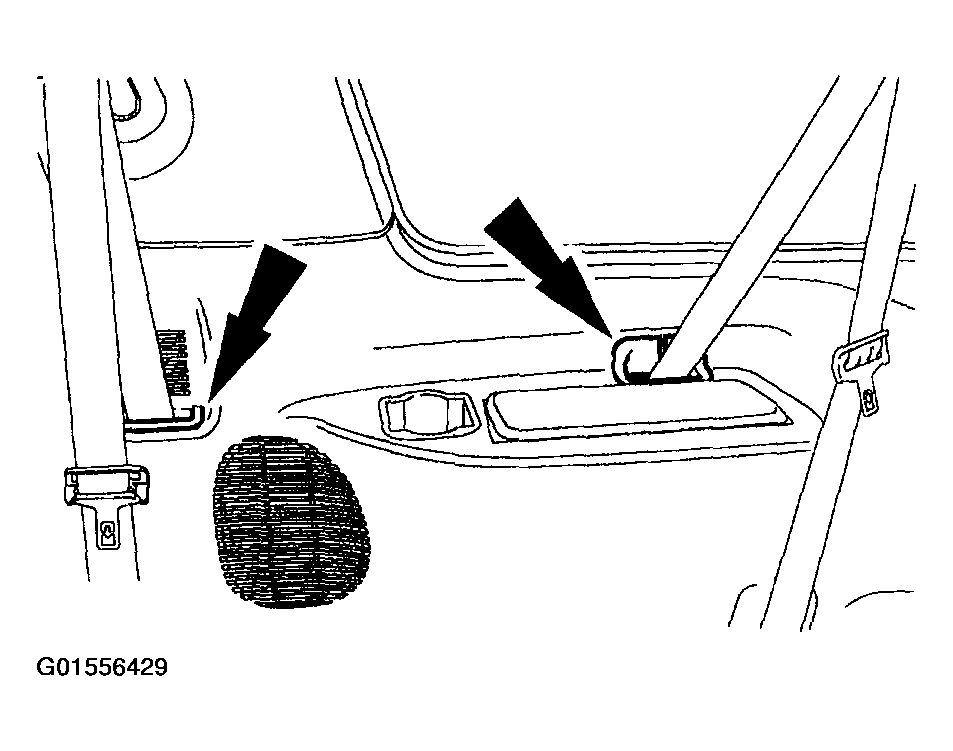

22. Install the second and third row seat belt guide inserts into the quarter trim panel.
    Fig 19: Installing Second And Third Row Seat Belt Guide

    Courtesy of FORD MOTOR CO.
23. Install the third row seat.
24. Readjust the second row seat.
25. Check the restraints system for correct operation.
