Height Adjuster - Shoulder Safety Belt, Regular Cab: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the shoulder safety belt guide.
NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.
1. Position the shoulder safety belt guide cover up.
2. Remove the shoulder safety belt guide nut.
3. Remove the shoulder safety belt guide.

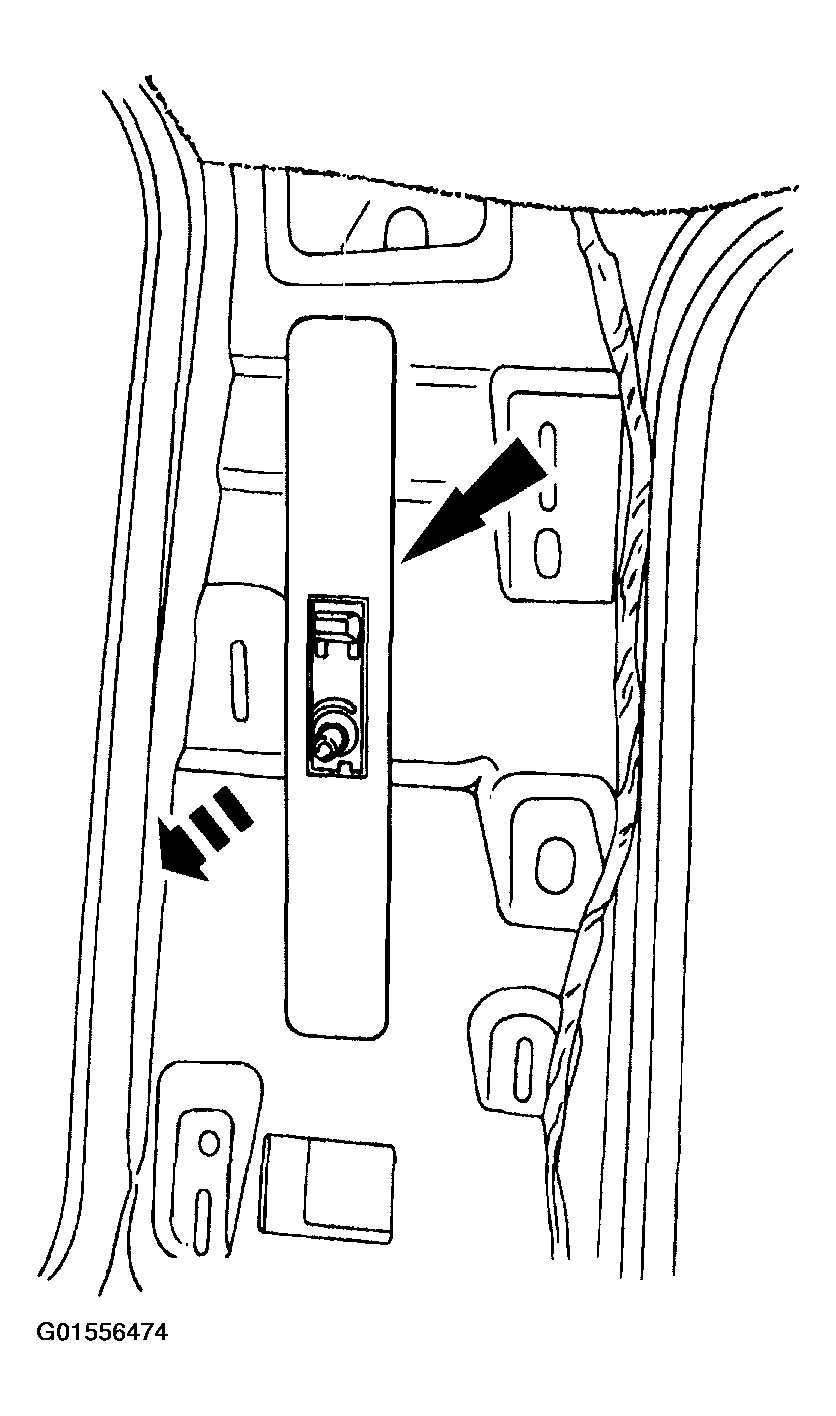

  Fig 1: Removing Shoulder Safety Belt Guide
  Courtesy of FORD MOTOR CO.
Remove the front door scuff plate and rear corner trim panel.
Remove the height adjuster cover (602B90).

Fig 2: Removing Front Door Scuff Plate And Rear Corner Trim Panel
Courtesy of FORD MOTOR CO.
Remove the shoulder safety belt height adjuster (602B82).
1. Use the special tool to remove the bolts.
2. Remove the shoulder safety belt height adjuster.

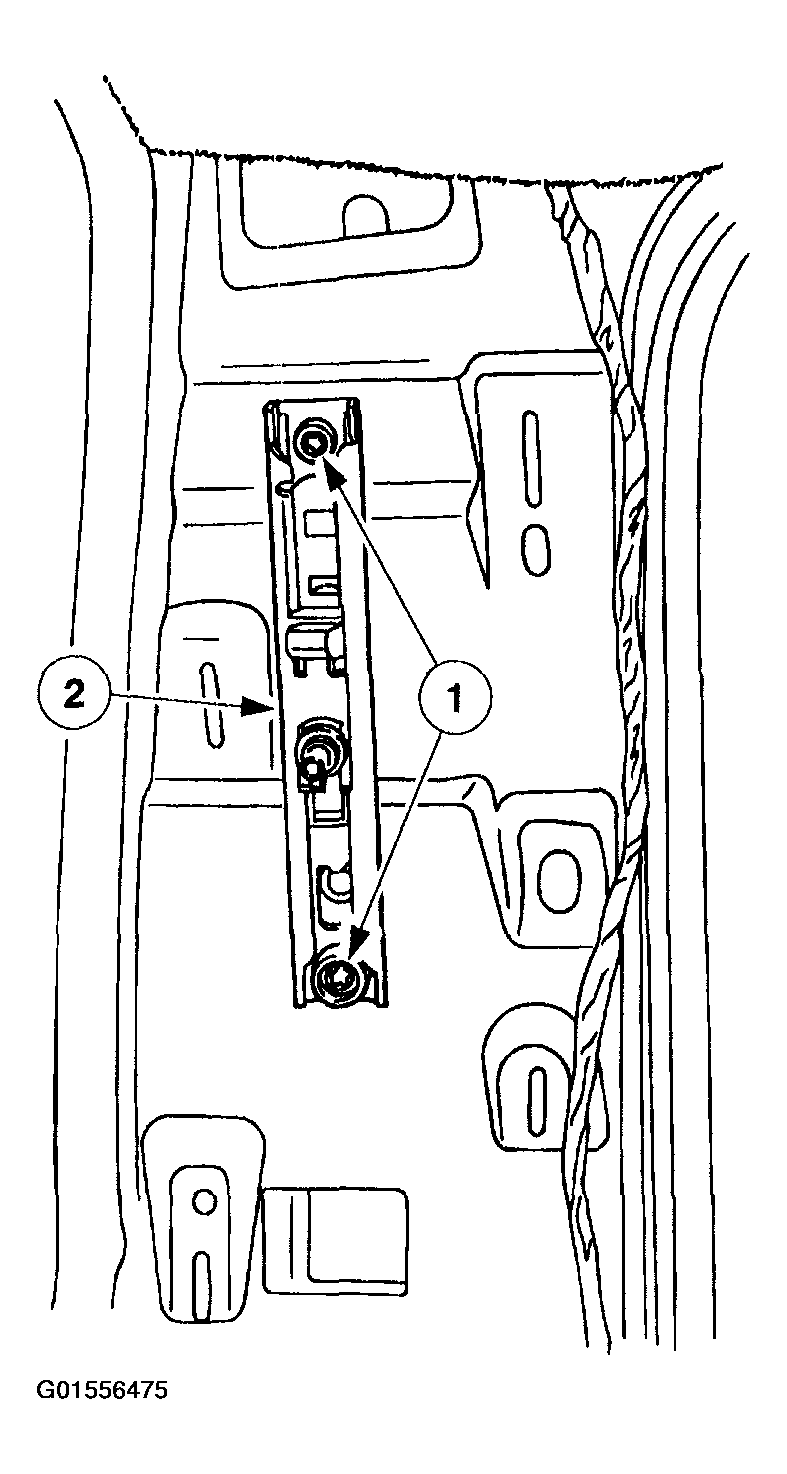

  Fig 3: Removing Shoulder Safety Belt Height Adjuster
  Courtesy of FORD MOTOR CO.
