Front Safety Belt Retractor - Seat Integrated Restraint (SIR), SuperCab: Installation

All Vehicles

1. Route the safety belt anchor, tongue, web guide and safety belt up through the opening at the safety belt guide.
   NOTE: Make sure the safety belt webbing is not twisted prior to installation.
   Fig 1: Routing Safety Belt Anchor, Tongue, Web Guide And Safety Belt Up Through Opening ATX Safety Belt Guide

   Courtesy of FORD MOTOR CO.

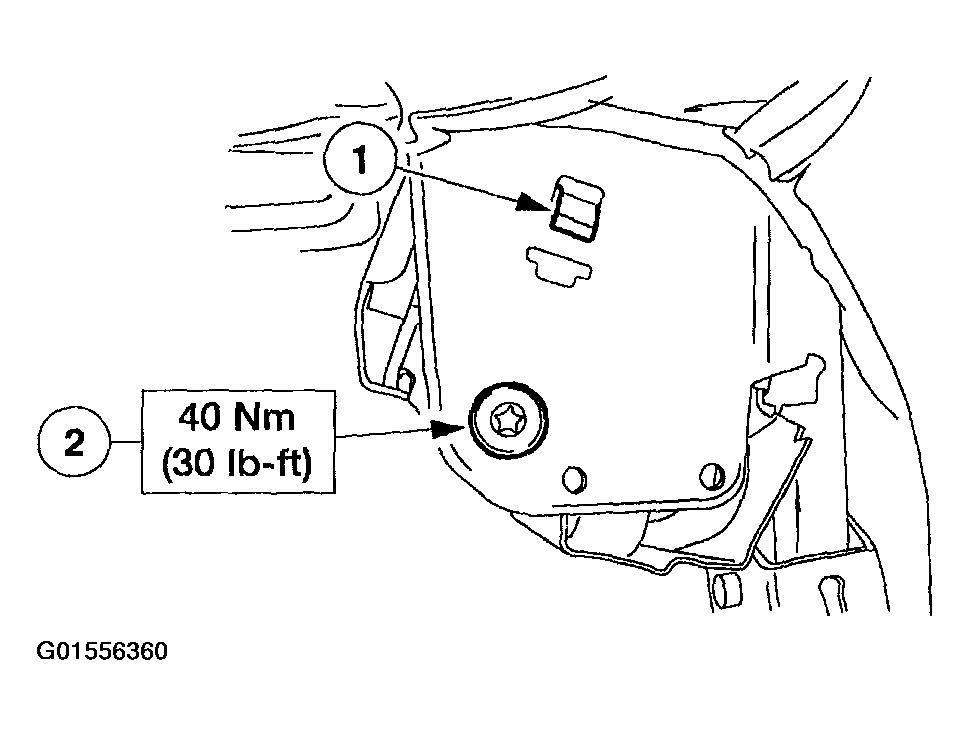

2. Install the safety belt retractor.
   1. Align the tab into the seat backrest bracket.
   2. Install the bolt.
      Fig 2: Installing Safety Belt Retractor

      Courtesy of FORD MOTOR CO.

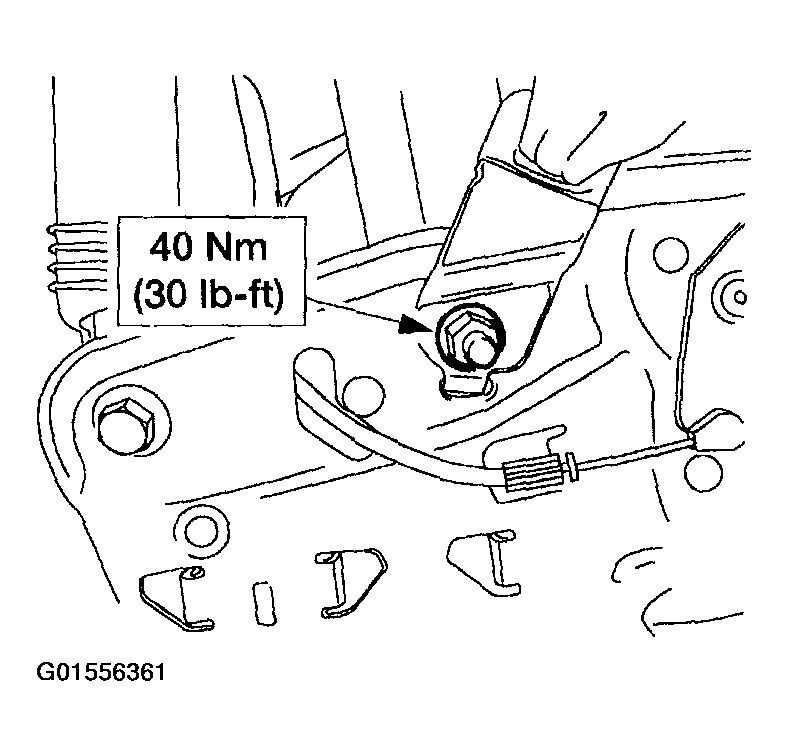

3. Install the safety belt anchor and nut.
   NOTE: Prior to installation, make sure the safety belt webbing is not twisted.
   • Make sure the anti-rotation tab is properly positioned into the seat frame.
     Fig 3: Installing Safety Belt Anchor And Nut

     Courtesy of FORD MOTOR CO.

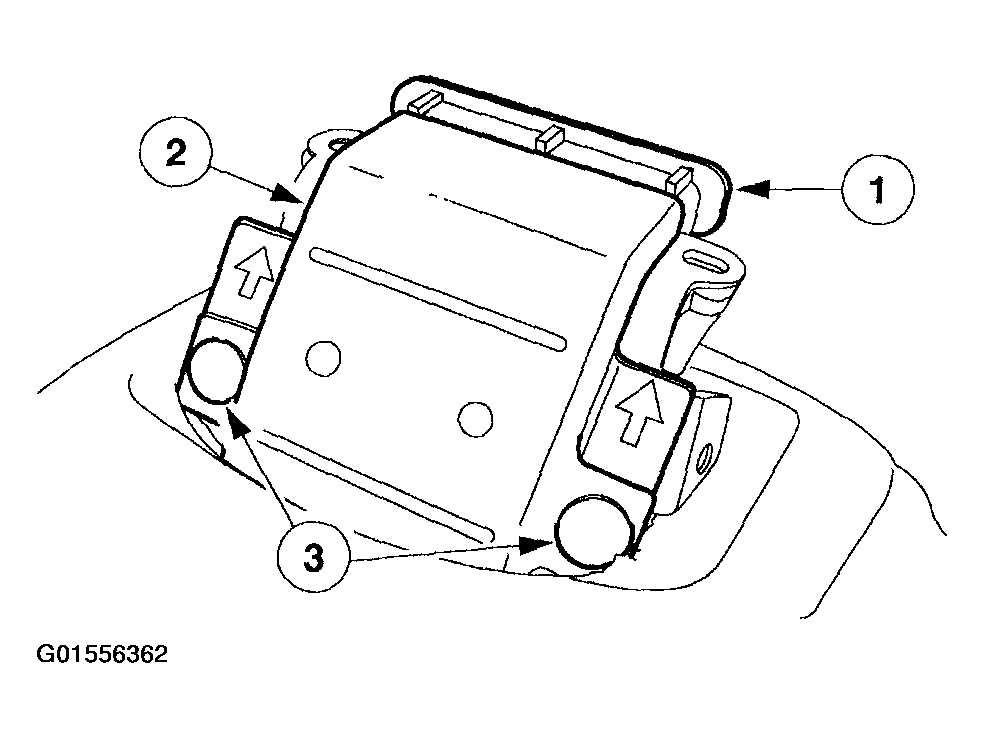

4. Install the safety belt web guides.
   1. Position the front safety belt web guide.
   2. Position the upper safety belt web guide.
   3. Install the pin-type retainers.
      Fig 4: Installing Safety Belt Web Guides

      Courtesy of FORD MOTOR CO.

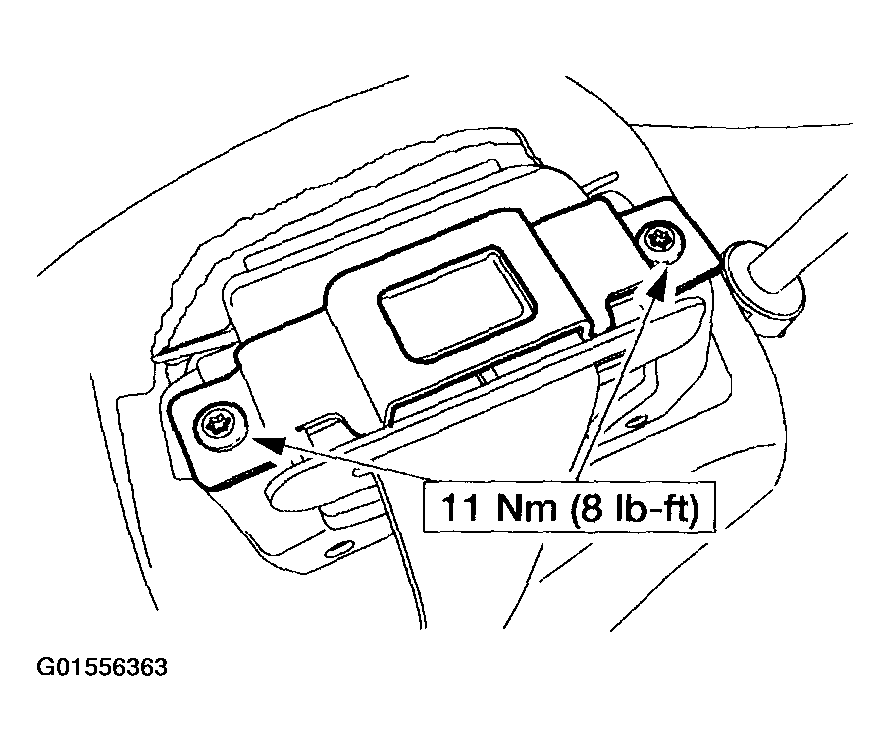

5. Position the bracket as noted in removal. Install the screws.
   NOTE: Do not  reverse the bracket during installation.
   Fig 5: Installing Bracket Screws

   Courtesy of FORD MOTOR CO.
6. Install the four tower cap attachment screws. Install the inboard, outboard and front screw covers.
   NOTE: The inboard and outboard tower cap covers are not interchangeable. The outboard cover sits flat on the tower cap. The inboard cover sticks out from the tower cap.
   Fig 6: Installing Tower Cap Attachment Screws

   Courtesy of FORD MOTOR CO.

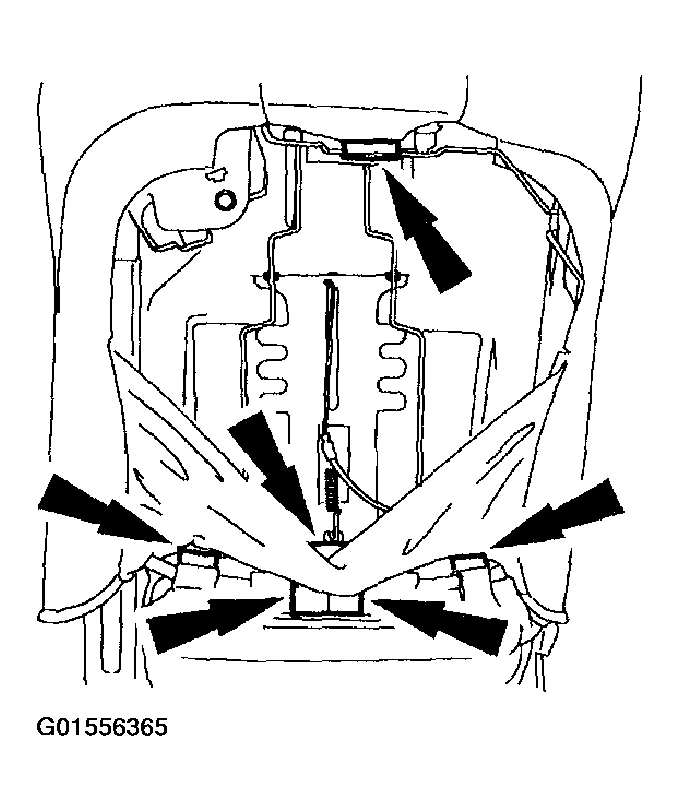

7. Install the seat backrest trim cover J-clips.
   Fig 7: Installing Seat Backrest Trim Cover J-Clips

   Courtesy of FORD MOTOR CO.

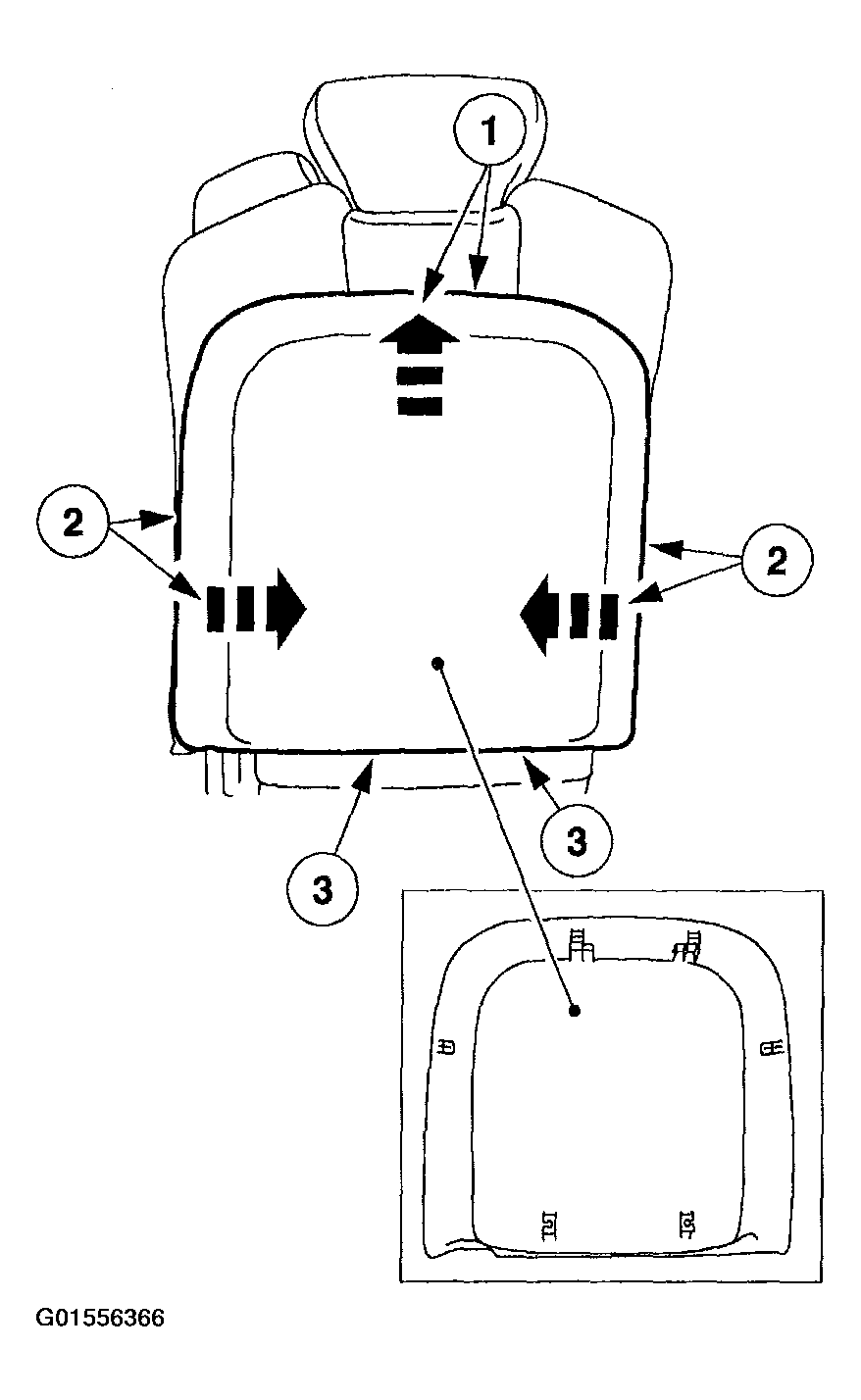

8. Install the seat backrest trim panel.
   1. Position the seat backrest trim panel to the seat backrest and lift up, engaging the upper retaining clips.
   2. Push the sides of the seat backrest trim panel together, align the retaining clips to the seat backrest frame wires and release the cover, engaging the retaining clips into the seat backrest frame wire retainer.
   3. Install the seat backrest trim panel pin-type retainers.
      Fig 8: Installing Seat Backrest Trim Panel Pin-Type Retainers

      Courtesy of FORD MOTOR CO.
9. Position the side trim cover onto the seat.
   • Vehicles with power seat, feed the seat control switch wire harness through the seat opening as noted in removal.
   • Align the side shield to the pivot bolt.
     Fig 9: Aligning Side Shield To Pivot Bolt

     Courtesy of FORD MOTOR CO.

   Vehicles with heated seat

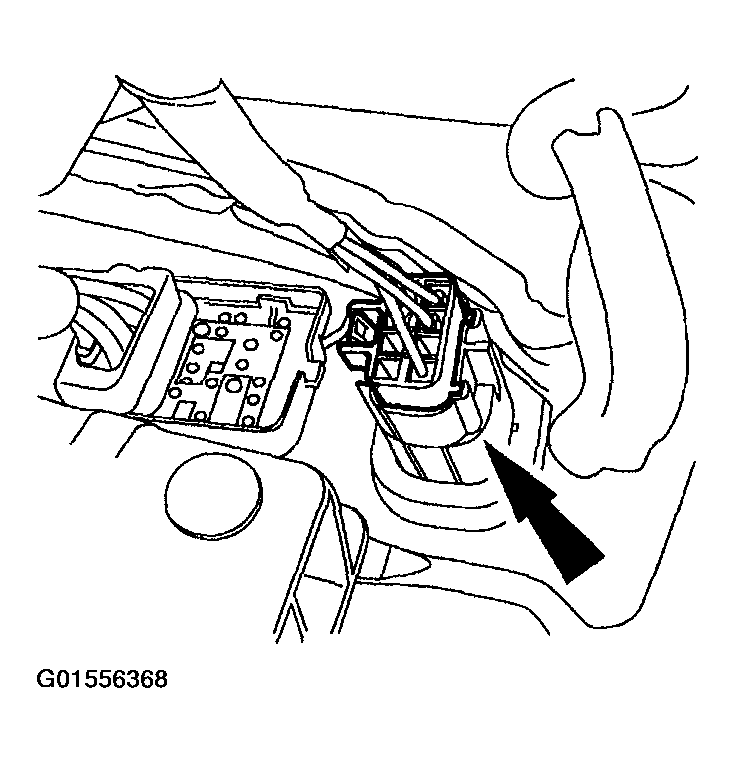

10. Connect the heated seat switch electrical connector.
    Fig 10: Connecting Heated Seat Switch Electrical Connector

    Courtesy of FORD MOTOR CO.

    All seats

11. Position the lumbar adjuster control. Install the two screws securing the lumbar adjuster control to the seat track riser.
    Fig 11: Installing Screws Securing Lumbar Adjuster Control To Seat Track Riser

    Courtesy of FORD MOTOR CO.
12. Install the seat side trim panel screws, the seat adjuster control knob and cover.
    1. Install the three seat side trim panel attachment screws (two shown).
    2. Install the seat recliner lever cover and screw.
    3. Install the lumbar control knob.
       Fig 12: Installing Three Seat Side Trim Panel Attachment Screws

       Courtesy of FORD MOTOR CO.

    Vehicles with power seats

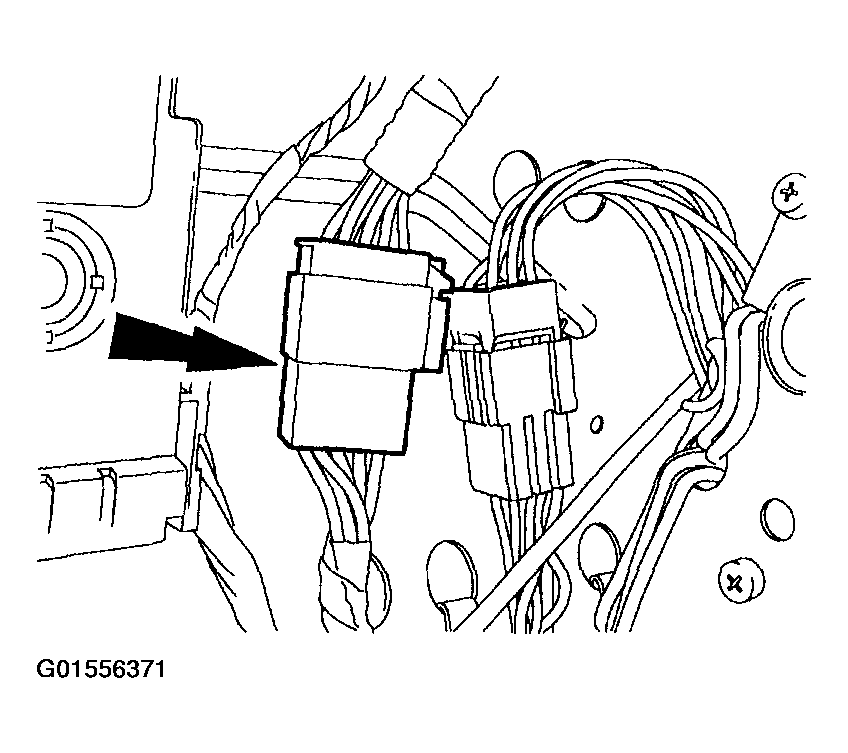

13. Connect the seat control switch electrical connector.
    Fig 13: Connecting Seat Control Switch Electrical Connector

    Courtesy of FORD MOTOR CO.

    All seats

14. Restore the vehicle to operating condition.
    1. Install the seat on the side with the affected safety belt retractor. Refer to SEATING .
       WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system deactivation/reactivation procedure.
    2. Reactivate the supplemental restraint system (SRS). Refer to Supplemental Restraint System (SRS) Deactivation and Reactivation .
       WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the seat removal and installation procedure.
    3. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). Refer to AIR BAG RESTRAINT SYSTEMS .
       WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
    4. Check the active restraint system for correct operation. Refer to Safety Belt System .
15. Check the active restraints for correct operation. Refer to Safety Belt System .
