Supplemental Restraint System (SRS) Deactivation and Reactivation: Reactivation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the deactivation procedure.

All vehicles

  1. Disconnect the battery ground cable and wait at least one minute. Refer to BATTERY, MOUNTING AND CABLES .

    CrewCabs with safety belt retractor pretensioners

  2. Remove the restraint system diagnostic tool from the driver side safety belt retractor pretensioner floor electrical connector.

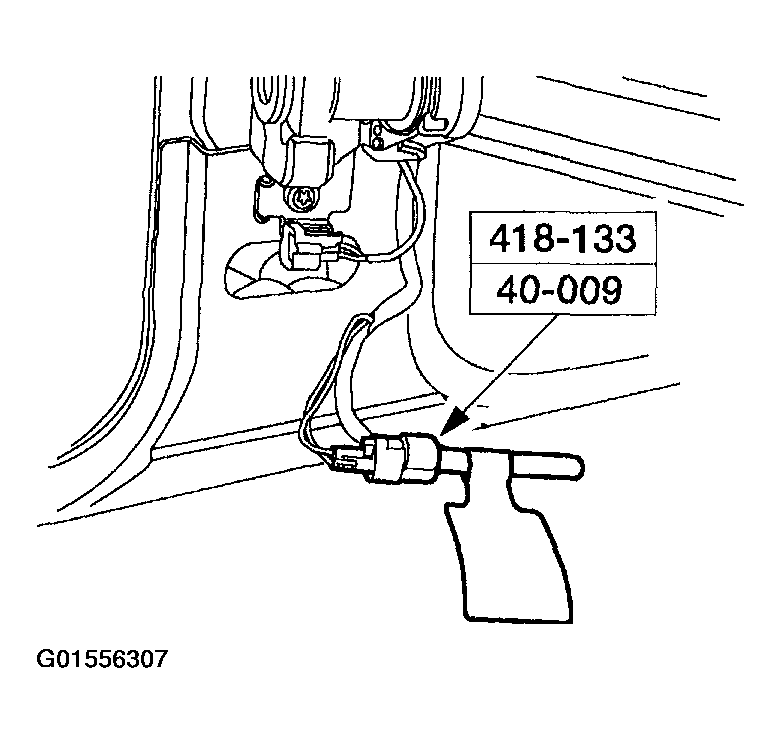

    Fig 1: Removing Restraint System Diagnostic Tool From Driver Side Safety Belt Retractor Pretensioner Floor Electrical Connector
    G01556307Courtesy of FORD MOTOR CO.
  3. Connect the driver side safety belt retractor pretensioner electrical connector.

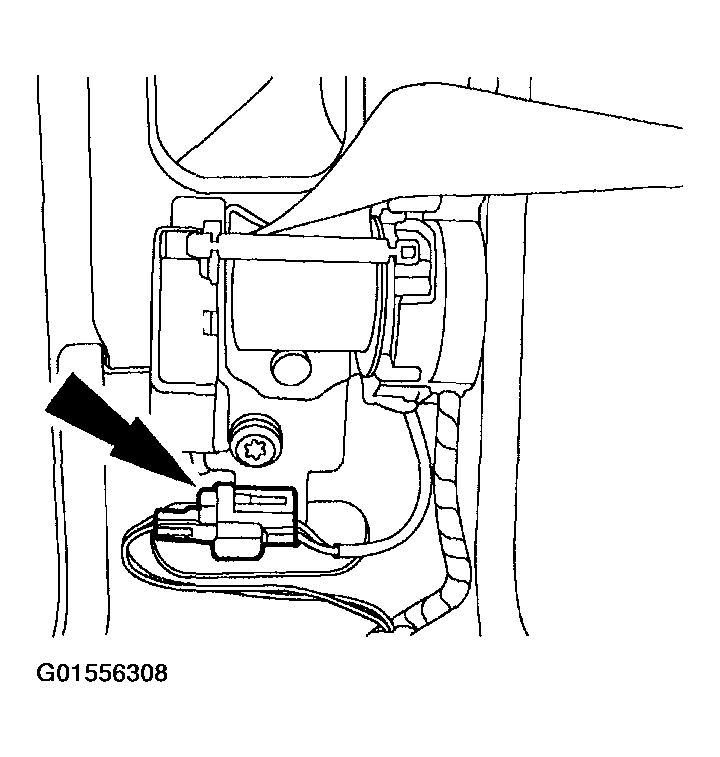

    Fig 2: Connecting Driver Side Safety Belt Retractor Pretensioner Electrical Connector
    G01556308Courtesy of FORD MOTOR CO.
  4. Install the driver side B-pillar trim panel, and front and rear door scuff plates.
  5. Install the driver side shoulder safety belt guide.
    NOTE: Prior to installation, make sure the safety belt webbing is not twisted.
    NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide cover.
    1. Position the shoulder safety belt guide.
    2. Install the nut.
    3. Close the cover.
      Fig 3: Installing Driver Side Shoulder Safety Belt Guide
      G01556309Courtesy of FORD MOTOR CO.
  6. Remove the restraint system diagnostic tool from the passenger side safety belt retractor pretensioner floor electrical connector.

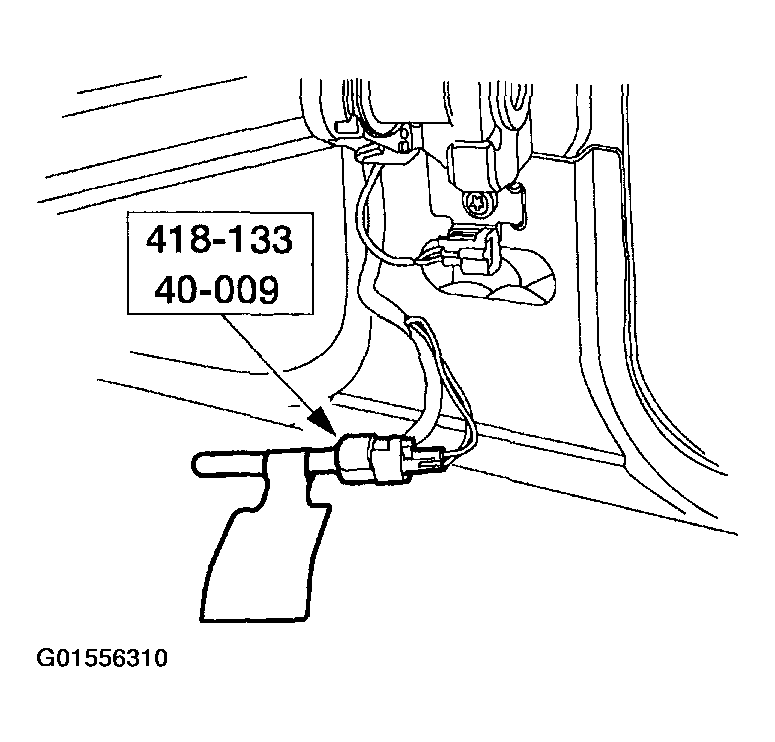

    Fig 4: Removing Restraint System Diagnostic Tool From Passenger Side Safety Belt Retractor Pretensioner Floor Electrical Connector
    G01556310Courtesy of FORD MOTOR CO.
  7. Connect the passenger side safety belt retractor pretensioner electrical connector.

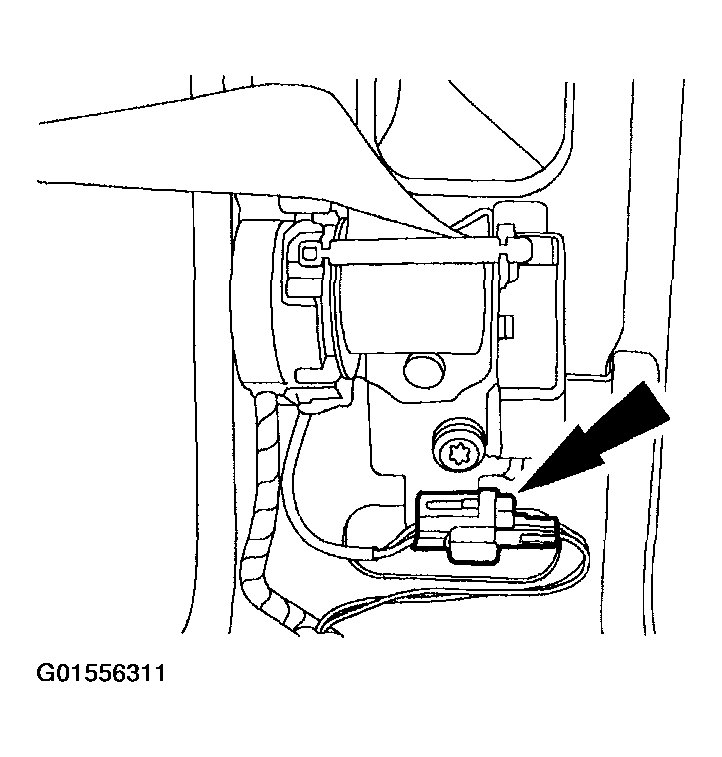

    Fig 5: Connecting Passenger Side Safety Belt Retractor Pretensioner Electrical Connector
    G01556311Courtesy of FORD MOTOR CO.
  8. Install the passenger side B-pillar trim panel, rear assist handle and front and rear door scuff plates.
  9. Install the passenger side shoulder safety belt guide.
    NOTE: Prior to installation, make sure the safety belt webbing is not twisted.
    NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide cover.
    1. Position the shoulder safety belt guide.
    2. Install the nut.
    3. Close the cover.
      Fig 6: Installing Passenger Side Shoulder Safety Belt Guide
      G01556312Courtesy of FORD MOTOR CO.

    SuperCabs with safety belt buckle pretensioners - seat integrated restraints (SIR)

  10. From under the driver seat, remove the restraint system diagnostic tool from the driver seat safety belt buckle pretensioner floor electrical connector.
    Fig 7: Removing Restraint System Diagnostic Tool From Driver Seat Safety Belt Buckle Pretensioner Floor Electrical Connector
    G01556313Courtesy of FORD MOTOR CO.
  11. From under the driver seat, connect the driver seat safety belt buckle pretensioner electrical connector.

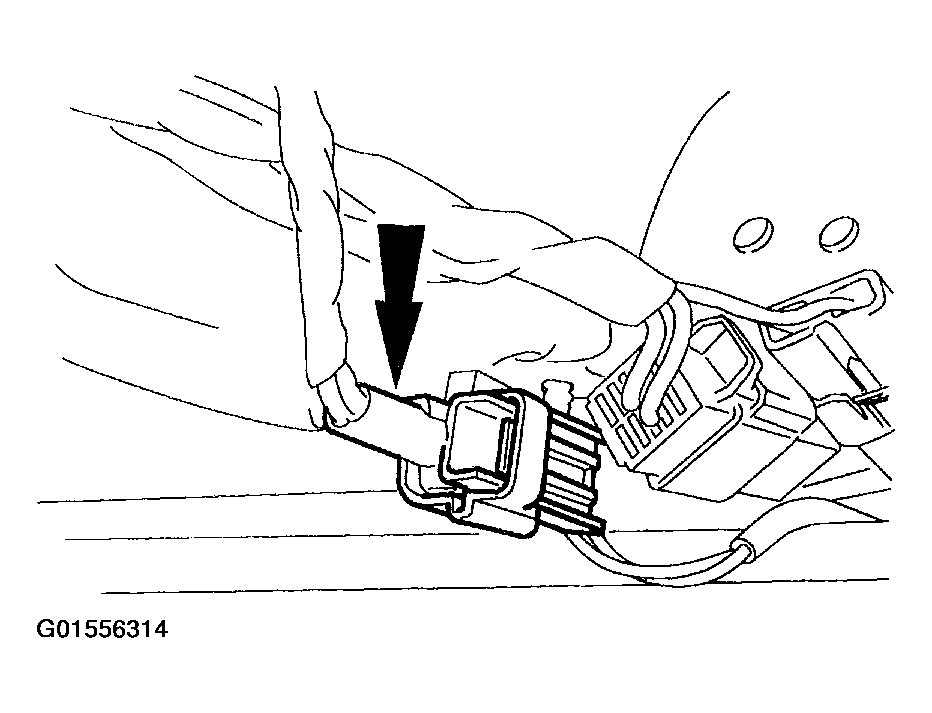

    Fig 8: Connecting Driver Seat Safety Belt Buckle Pretensioner Electrical Connector
    G01556314Courtesy of FORD MOTOR CO.
  12. From under the passenger seat, remove the restraint system diagnostic tool from the passenger seat safety belt buckle pretensioner floor electrical connector.
    Fig 9: Removing Restraint System Diagnostic Tool From Passenger Seat Safety Belt Buckle Pretensioner Floor Electrical Connector
    G01556315Courtesy of FORD MOTOR CO.
  13. From under the passenger seat, connect the passenger seat safety belt buckle pretensioner electrical connector.

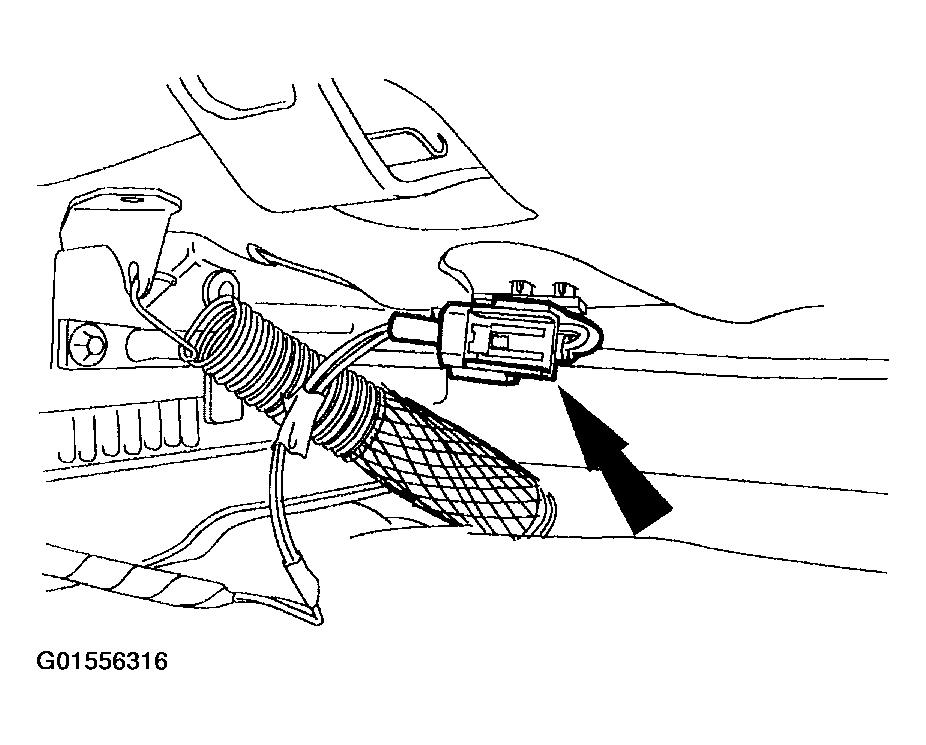

    Fig 10: Connecting Passenger Seat Safety Belt Buckle Pretensioner Electrical Connector
    G01556316Courtesy of FORD MOTOR CO.

    SuperCabs with safety belt retractor pretensioners

  14. Remove the bolt from the driver side safety belt retractor pretensioner.
    Fig 11: Removing bolt from driver side safety belt retractor pretensioner
    G01556317Courtesy of FORD MOTOR CO.
  15. Remove the restraint system diagnostic tool from the driver side safety belt retractor pretensioner floor electrical connector.

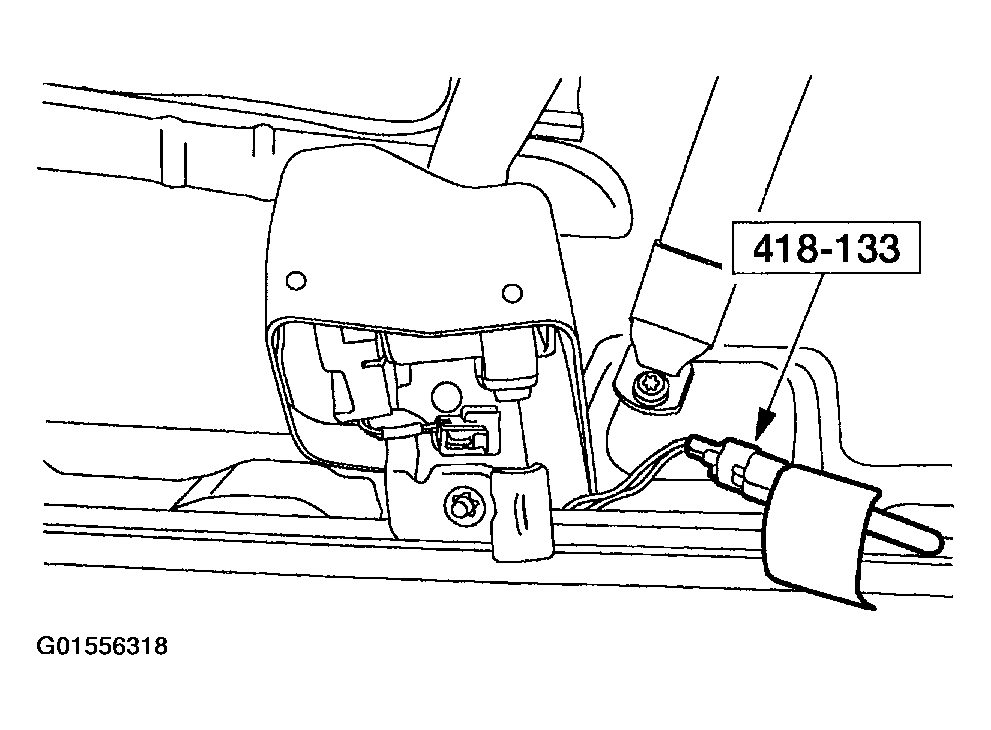

    Fig 12: Removing Restraint System Diagnostic Tool From Driver Side Safety Belt Retractor Pretensioner Floor Electrical Connector
    G01556318Courtesy of FORD MOTOR CO.
  16. Connect the driver side safety belt retractor pretensioner electrical connector.
    NOTE: Prior to installation, make sure the safety belt webbing is not twisted.

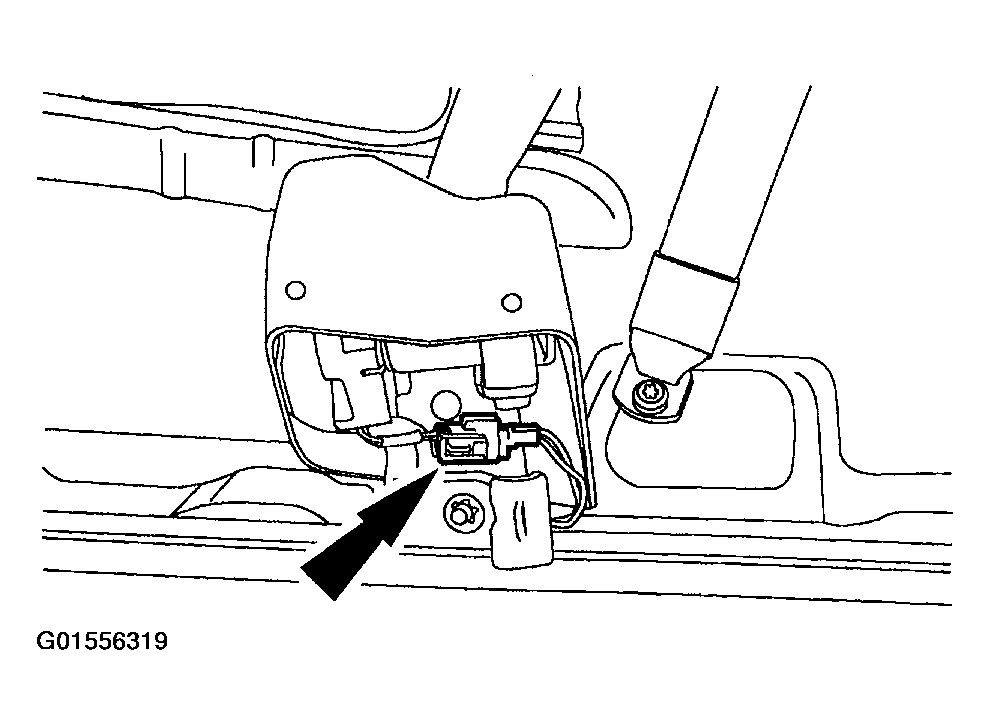

    Fig 13: Connecting Driver Side Safety Belt Retractor Pretensioner Electrical Connector
    G01556319Courtesy of FORD MOTOR CO.
  17. Position the driver side safety belt retractor pretensioner and install the bolt.
    NOTE: Prior to installation, make sure the safety belt webbing is not twisted.
    Fig 14: Installing Driver Side Safety Belt Retractor Pretensioner Bolt
    G01556320Courtesy of FORD MOTOR CO.
  18. Install the driver side door scuff plate.
    Fig 15: Installing Driver Side Door Scuff Plate
    G01556321Courtesy of FORD MOTOR CO.
  19. Remove the bolt from the passenger side safety belt retractor pretensioner.
    Fig 16: Removing Bolt From Passenger Side Safety Belt Retractor Pretensioner
    G01556322Courtesy of FORD MOTOR CO.
  20. Remove the restraint system diagnostic tool from the passenger side safety belt retractor pretensioner floor electrical connector.

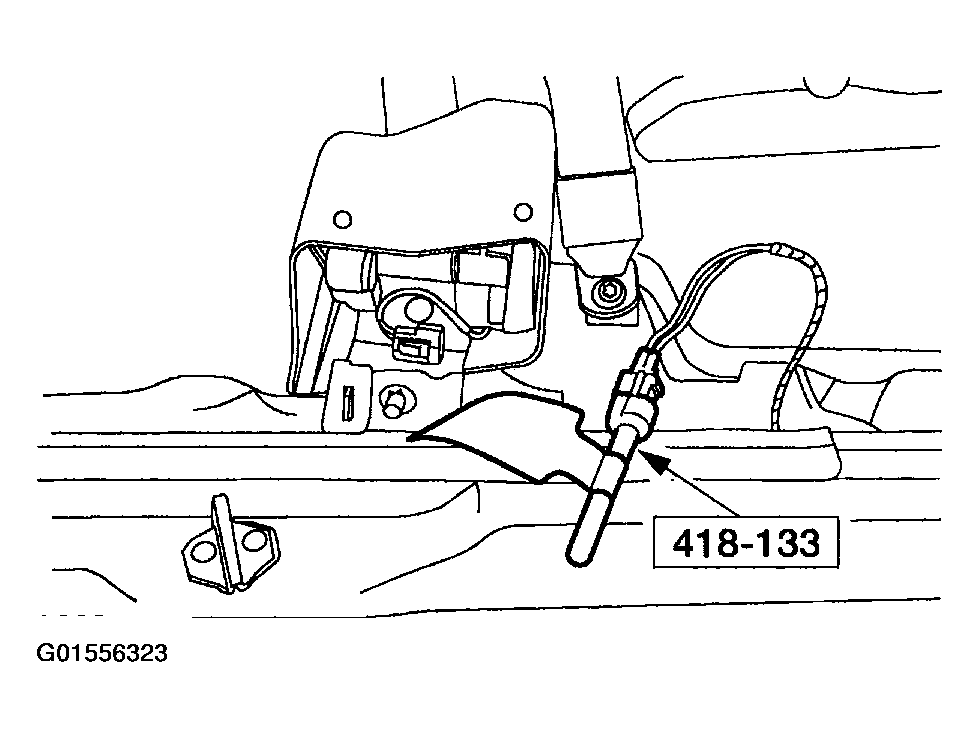

    Fig 17: Removing Restraint System Diagnostic Tool From Passenger Side Safety Belt Retractor Pretensioner Floor Electrical Connector
    G01556323Courtesy of FORD MOTOR CO.
  21. Connect the passenger side safety belt retractor pretensioner electrical connector.
    Fig 18: Connecting Passenger Side Safety Belt Retractor Pretensioner Electrical Connector
    G01556324Courtesy of FORD MOTOR CO.
  22. Position the passenger side safety belt retractor pretensioner and install the bolt.
    NOTE: Prior to installation, make sure the safety belt webbing is not twisted.
    Fig 19: Installing Passenger Side Safety Belt Retractor Pretensioner Bolt
    G01556325Courtesy of FORD MOTOR CO.
  23. Install the passenger side door scuff plate.
    Fig 20: Install Passenger Side Door Scuff Plate
    G01556326Courtesy of FORD MOTOR CO.

    Regular cabs with safety belt retractor pretensioners

  24. Remove the restraint system diagnostic tool from the driver side safety belt retractor pretensioner floor electrical connector.

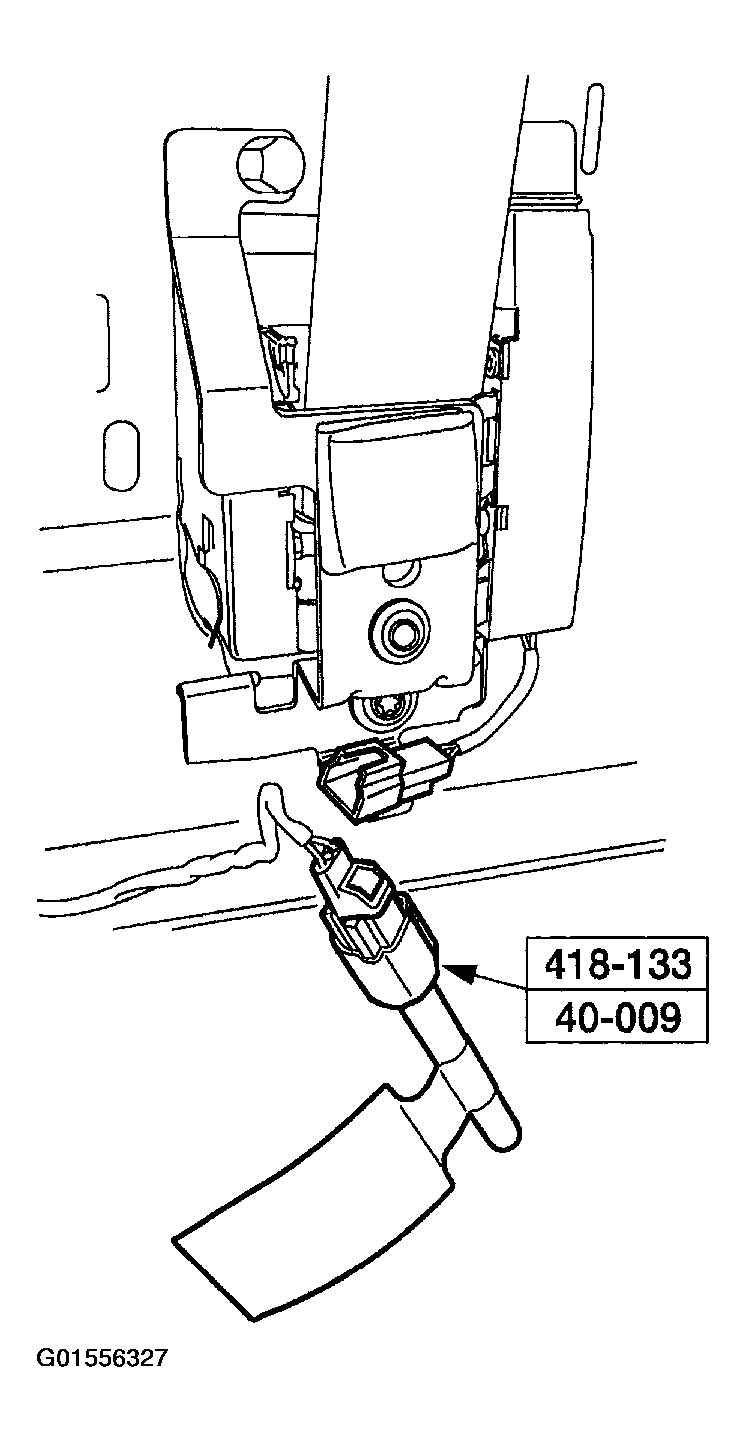

    Fig 21: Removing Restraint System Diagnostic Tool From Driver Side Safety Belt Retractor Pretensioner Floor Electrical Connector
    G01556327Courtesy of FORD MOTOR CO.
  25. Connect the driver side safety belt retractor pretensioner electrical connector.

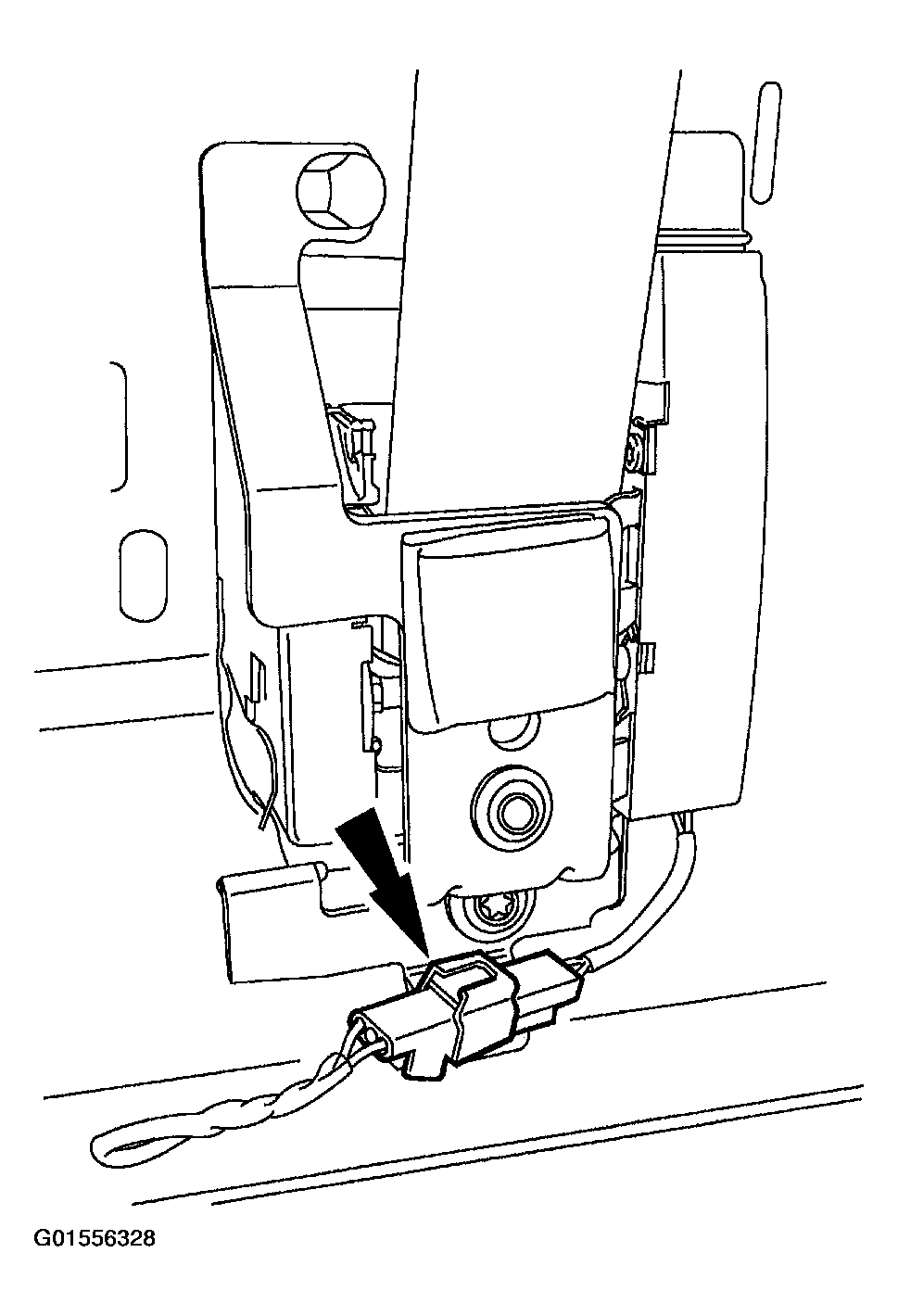

    Fig 22: Connecting Driver Side Safety Belt Retractor Pretensioner Electrical Connector
    G01556328Courtesy of FORD MOTOR CO.
  26. Install the driver side door scuff plate and rear corner trim panel.
  27. Install the driver side shoulder safety belt guide. Close the shoulder safety belt guide cover.
    NOTE: Prior to installation, make sure the safety belt webbing is not twisted.
    NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide cover.
    Fig 23: Installing Driver Side Shoulder Safety Belt Guide
    G01556329Courtesy of FORD MOTOR CO.
  28. Remove the restraint system diagnostic tool from the passenger side safety belt retractor pretensioner floor electrical connector.

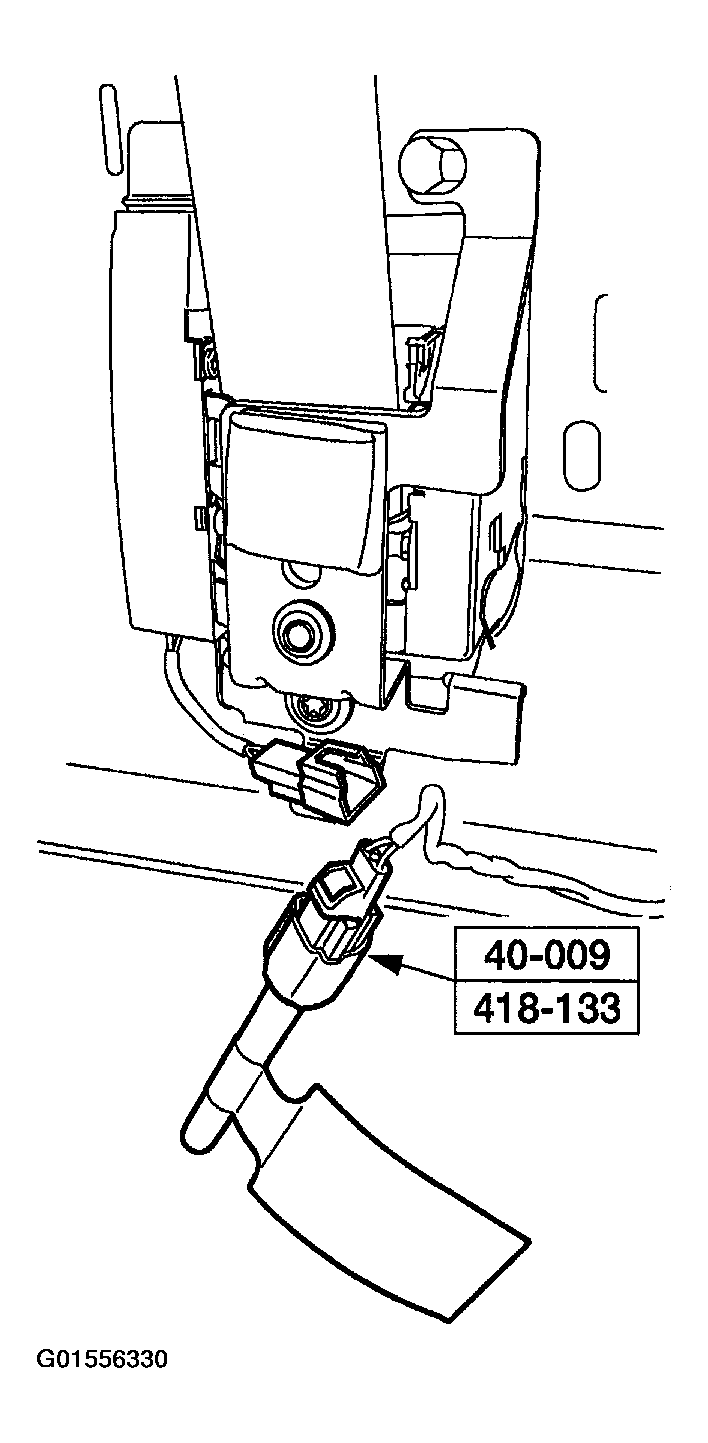

    Fig 24: Removing Restraint System Diagnostic Tool From Passenger Side Safety Belt Retractor Pretensioner Floor Electrical Connector
    G01556330Courtesy of FORD MOTOR CO.
  29. Connect the passenger side safety belt retractor pretensioner electrical connector.

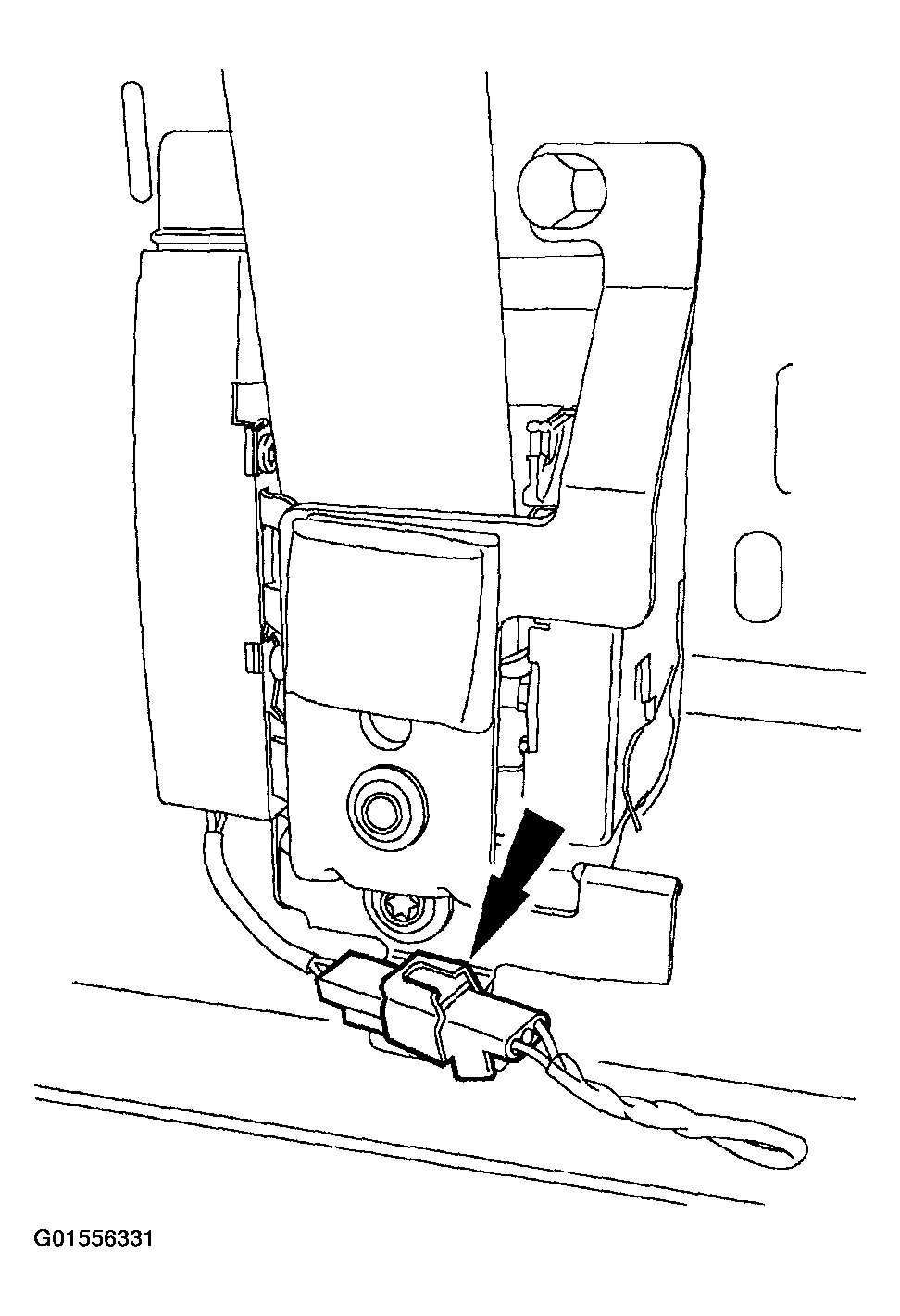

    Fig 25: Connecting Passenger Side Safety Belt Retractor Pretensioner Electrical Connector
    G01556331Courtesy of FORD MOTOR CO.
  30. Install the passenger side door scuff plate and rear corner trim panel.
  31. Install the passenger side shoulder safety belt guide. Close the shoulder safety belt guide cover.
    NOTE: Prior to installation, make sure the safety belt webbing is not twisted.
    NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide cover.
    Fig 26: Installing the passenger side shoulder safety belt guide
    G01556332Courtesy of FORD MOTOR CO.

    All vehicles

  32. Remove the restraint system diagnostic tool from the passenger air bag module electrical connector.

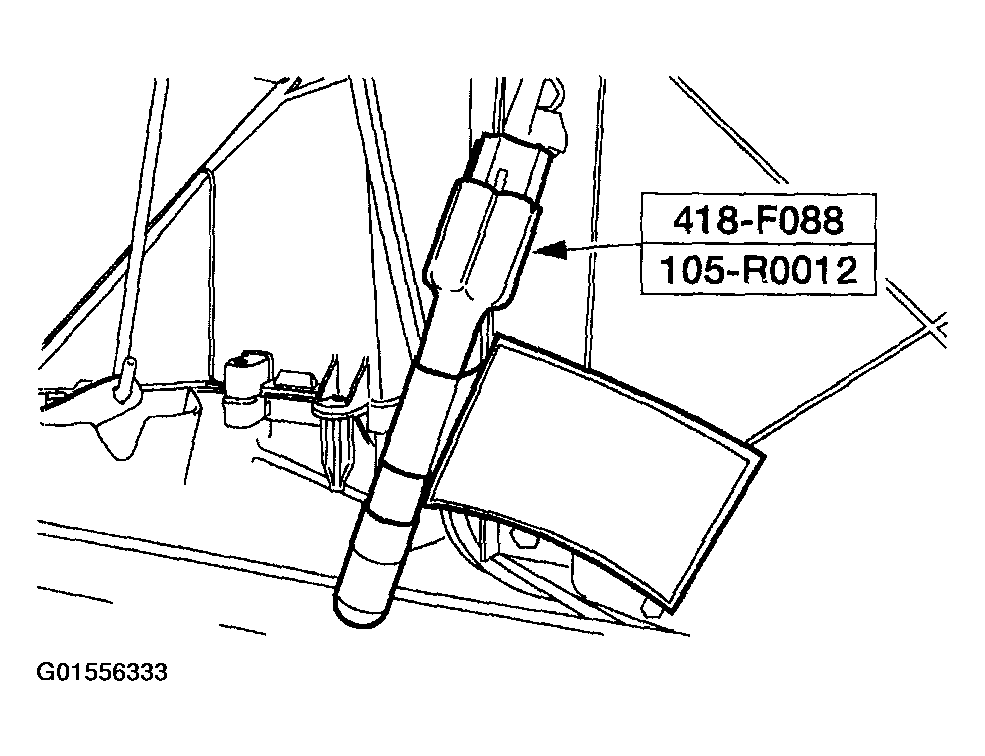

    Fig 27: Removing Restraint System Diagnostic Tool From Passenger Air Bag Module Electrical Connector
    G01556333Courtesy of FORD MOTOR CO.
  33. Connect the passenger air bag module electrical connector.

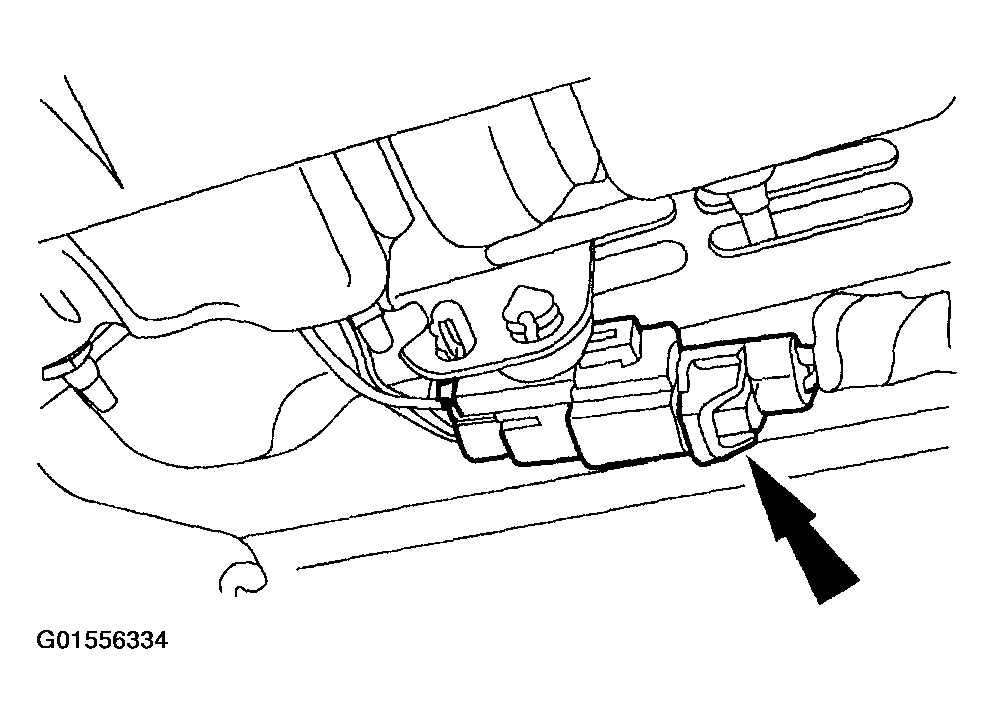

    Fig 28: Connecting Passenger Air Bag Module Electrical Connector
    G01556334Courtesy of FORD MOTOR CO.
  34. Close the glove compartment.
  35. Remove the restraint system diagnostic tool from the clockspring electrical connector.

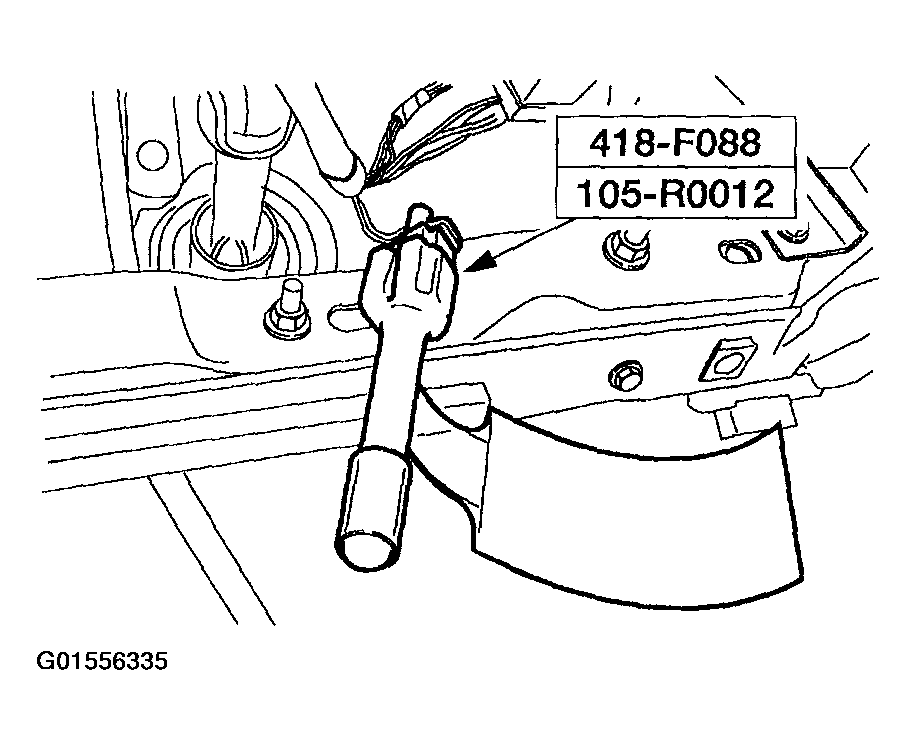

    Fig 29: Removing Restraint System Diagnostic Tool From Clockspring Electrical Connector
    G01556335Courtesy of FORD MOTOR CO.
  36. Connect the clockspring electrical connector at the base of the steering column.
    NOTE: Vehicles with speed control only shown, all others are similar.

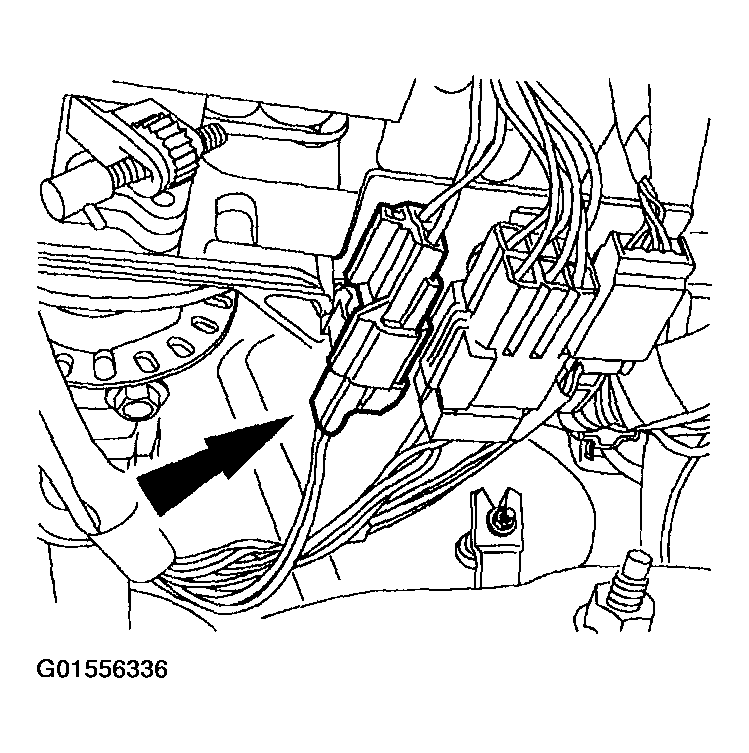

    Fig 30: Connecting Clockspring Electrical Connector
    G01556336Courtesy of FORD MOTOR CO.
  37. Install the steering column opening lower finish panel.
    1. Align the steering column opening lower finish panel to the instrument panel.
    2. Turn the retaining clips a quarter-turn clockwise to install.

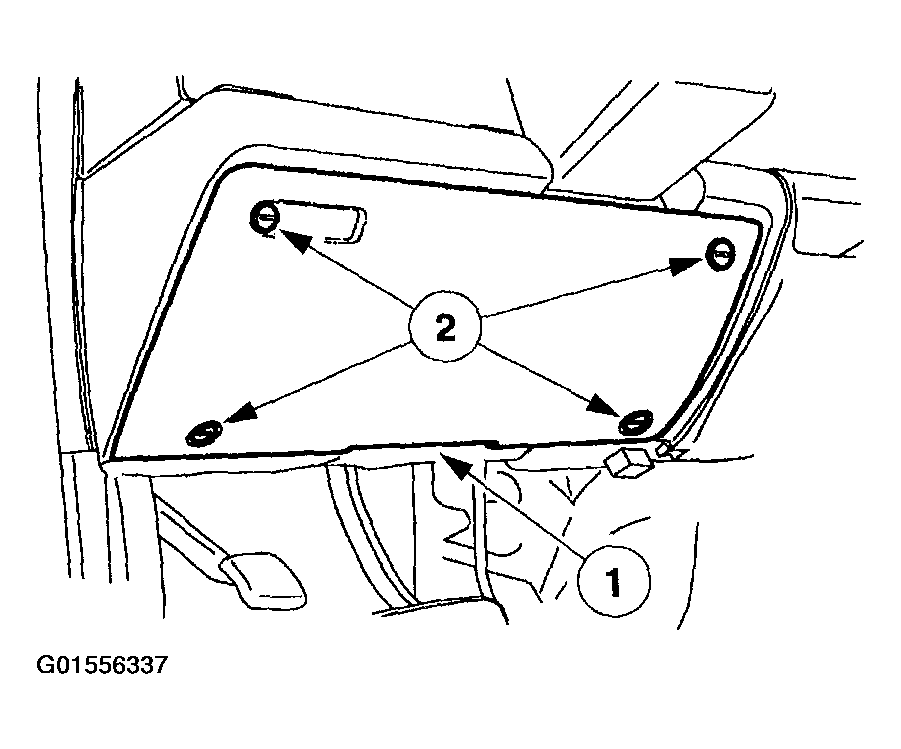

      Fig 31: Installing Steering Column Opening Lower Finish Panel
      G01556337Courtesy of FORD MOTOR CO.
  38. Connect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  39. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). Refer to AIR BAG RESTRAINT SYSTEMS .
    WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  40. Check the active restraint system for correct operation. Refer to Safety Belt System .
