Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cowl top vent panels. Refer to FRONT END BODY PANELS .

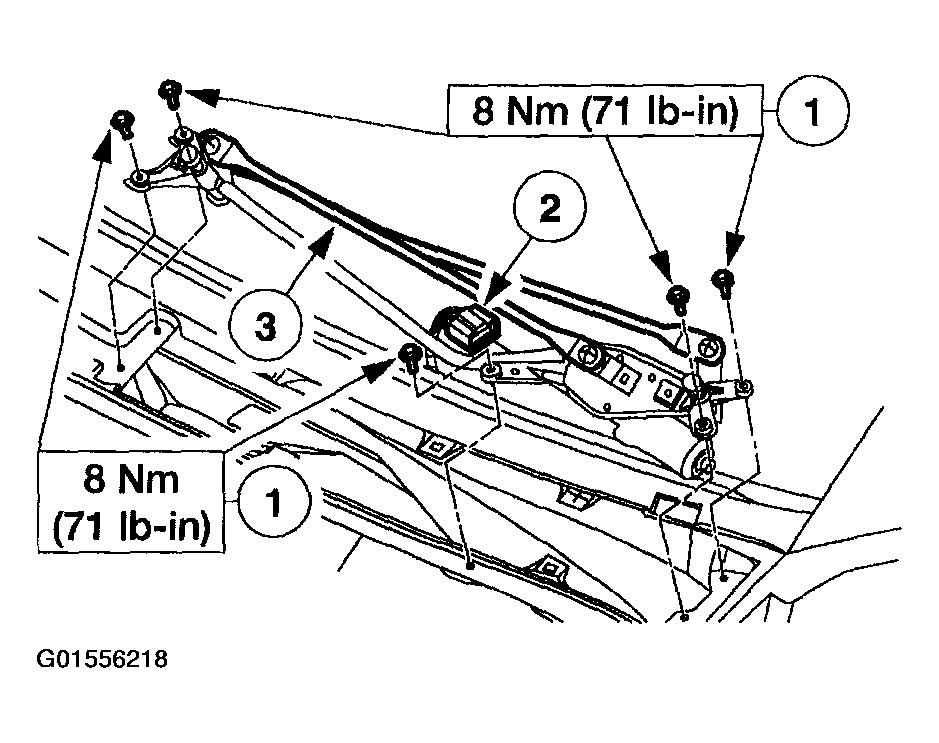

Remove the wiper mounting arm and pivot shaft assembly.
1. Remove the five bolts.
2. Disconnect the electrical connector.
3. Remove the wiper mounting arm and pivot shaft assembly.

  Fig 1: Removing Wiper Mounting Arm And Pivot Shaft Assembly
  Courtesy of FORD MOTOR CO.

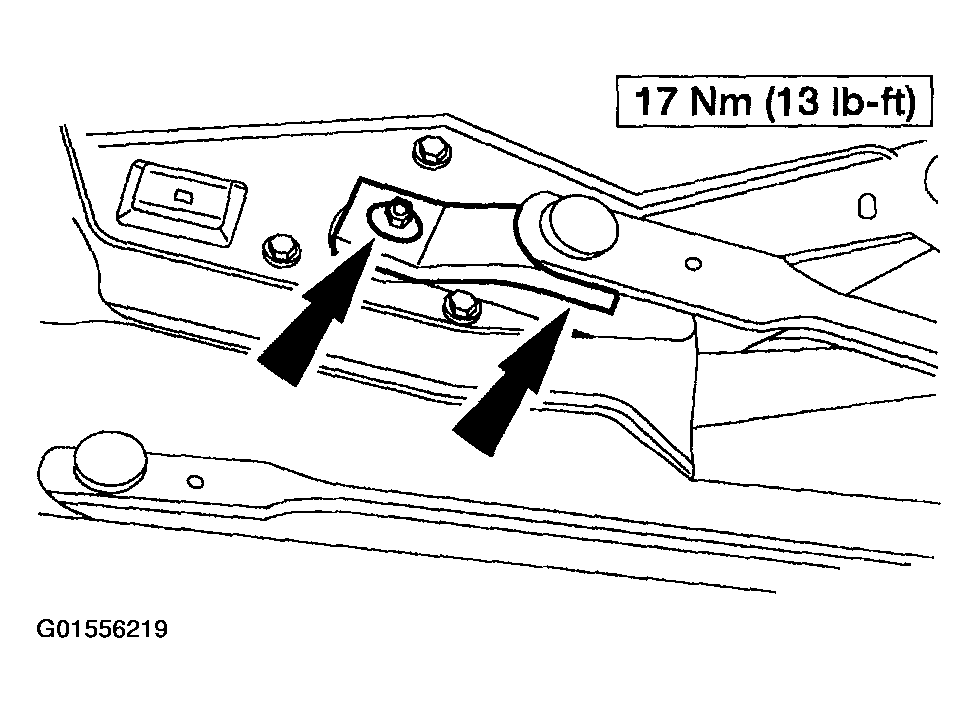

Remove the bolt and the windshield wiper linkage.

Fig 2: Identifying Bolt And Windshield Wiper Linkage
Courtesy of FORD MOTOR CO.

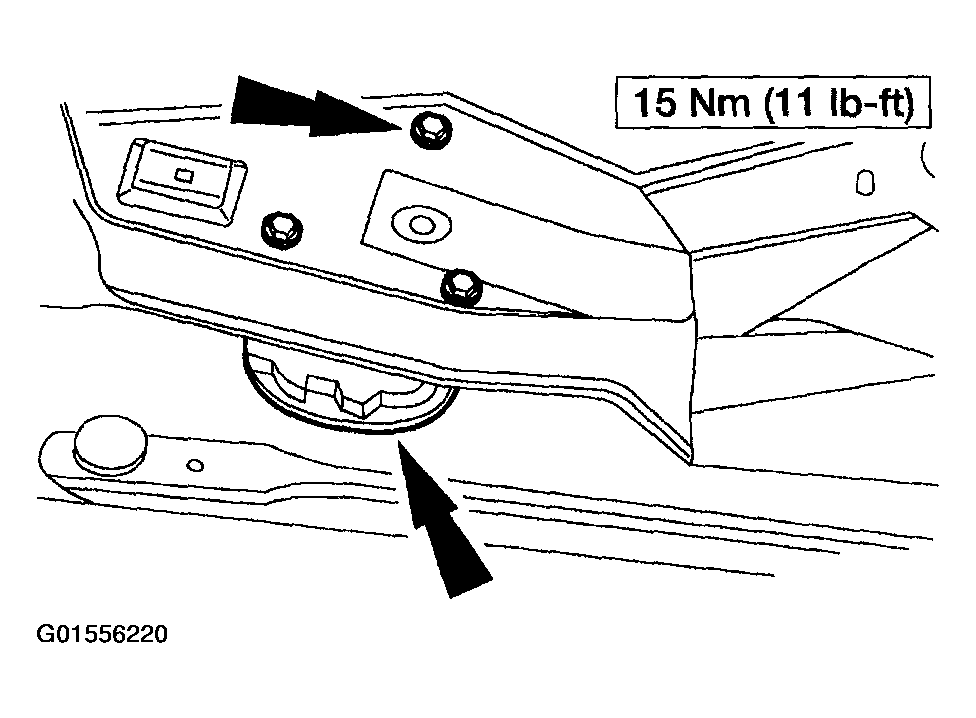

Remove the bolts and the windshield wiper motor.

Fig 3: Identifying Bolts And Windshield Wiper Motor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
