Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery tray. Refer to BATTERY, MOUNTING AND CABLES .

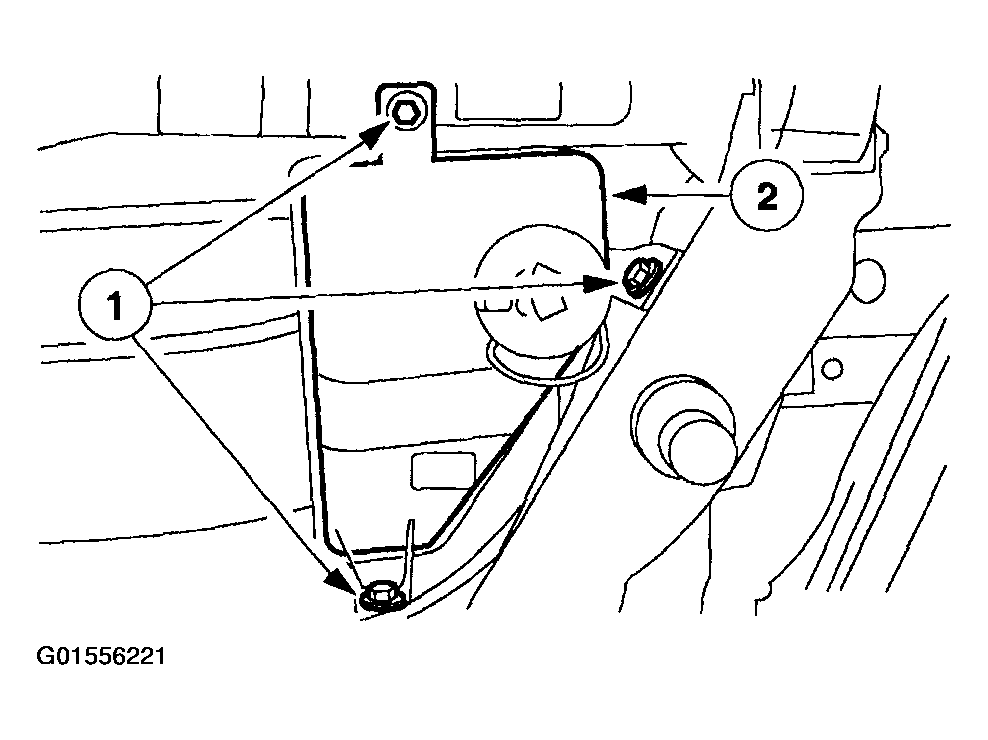

Position windshield washer fluid reservoir aside.
1. Remove the bolts.
2. Position windshield washer fluid reservoir aside.

  Fig 1: Positioning Windshield Washer Fluid Reservoir Aside
  Courtesy of FORD MOTOR CO.

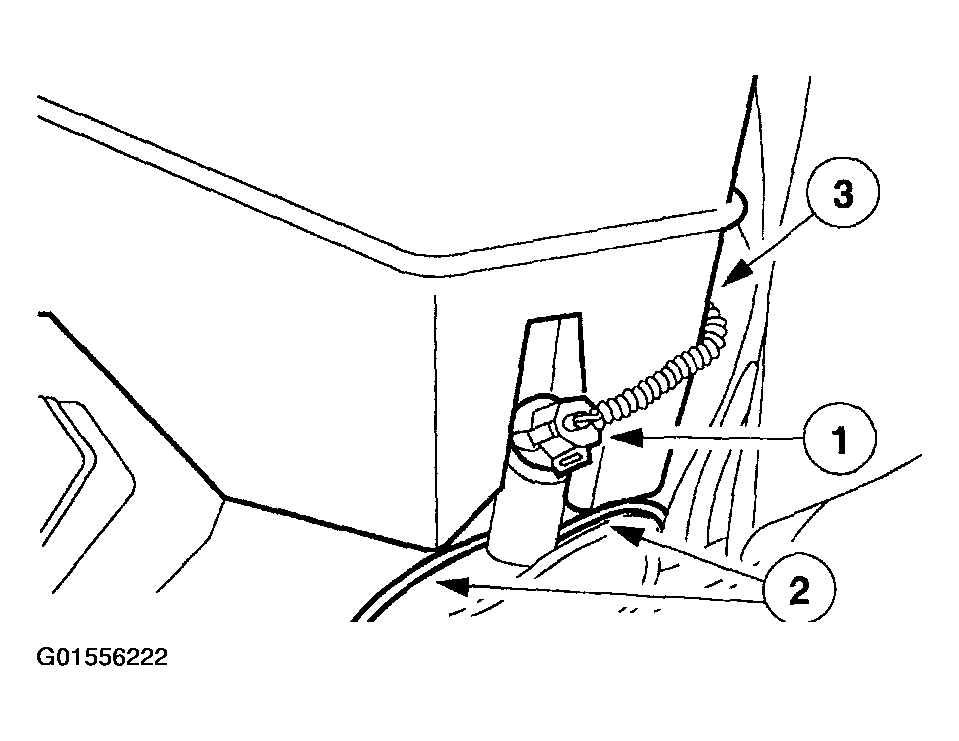

Remove windshield washer fluid reservoir.
1. Disconnect the electrical connector.
2. Disconnect the windshield washer hose. (If equipped, disconnect the rear window washer hose).
  WARNING: Windshield washer solution contains methanol which is poisonous. Observe all cautions and warnings indicated on label of washer solution container.

  NOTE: Windshield washer fluid should be collected in a container after the windshield washer hose is disconnected.
Remove the windshield washer fluid reservoir.

Fig 2: Identifying Windshield Washer Fluid Reservoir
Courtesy of FORD MOTOR CO.

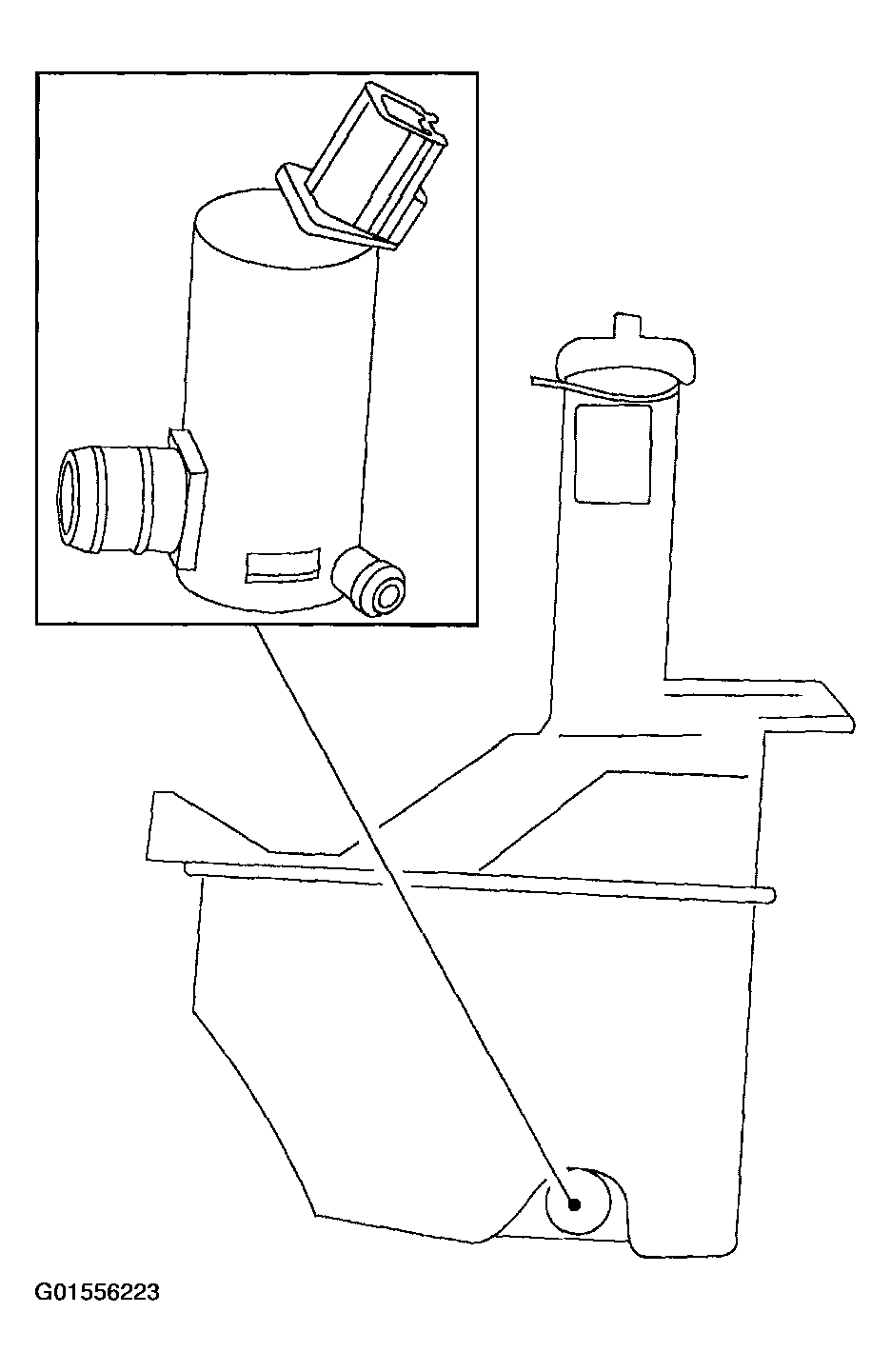

Remove the windshield washer pump.

Fig 3: Removing Windshield Washer Pump
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
CAUTION: Do not make electrical connection prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.
