Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear pivot arm. Refer to WIPER PIVOT ARM - Rear .
Remove the liftgate lower trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the rear wiper motor.
1. Remove the three rear wiper motor bolts.
2. Disconnect the electrical connector.
3. Remove the rear wiper motor.

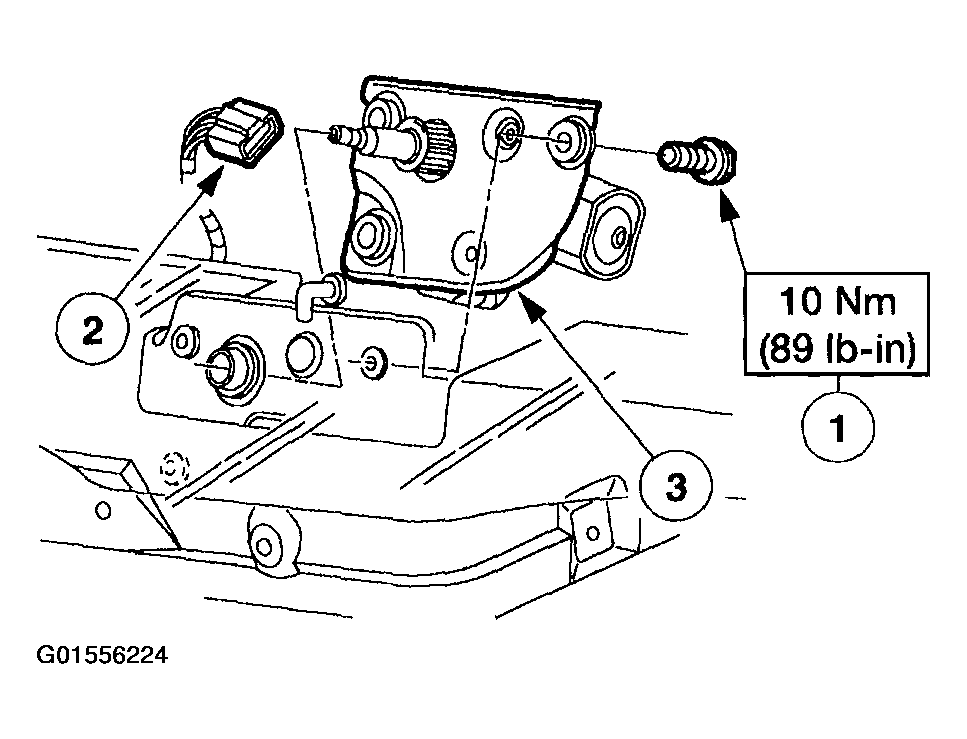

  Fig 1: Removing Rear Wiper Motor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
