Wiper Blade and Pivot Arm Adjustment

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Cycle and park the windshield wipers.
Verify the distance between the center of the passenger windshield wiper blade and the bottom of the windshield glass is within specification.

Fig 1: Verifying Distance Between Center And Bottom Of Passenger Windshield Glass Within Specification
Courtesy of FORD MOTOR CO.
Verify the distance between the center of the driver windshield wiper blade and the bottom of the windshield glass is within specification.

Fig 2: Verifying Distance Between Center And Bottom Of Driver Windshield Glass Within Specification
Courtesy of FORD MOTOR CO.
If the distance is not within specification, remove the windshield wiper pivot arms and reposition to specification. Refer to Wiper Pivot Arm .

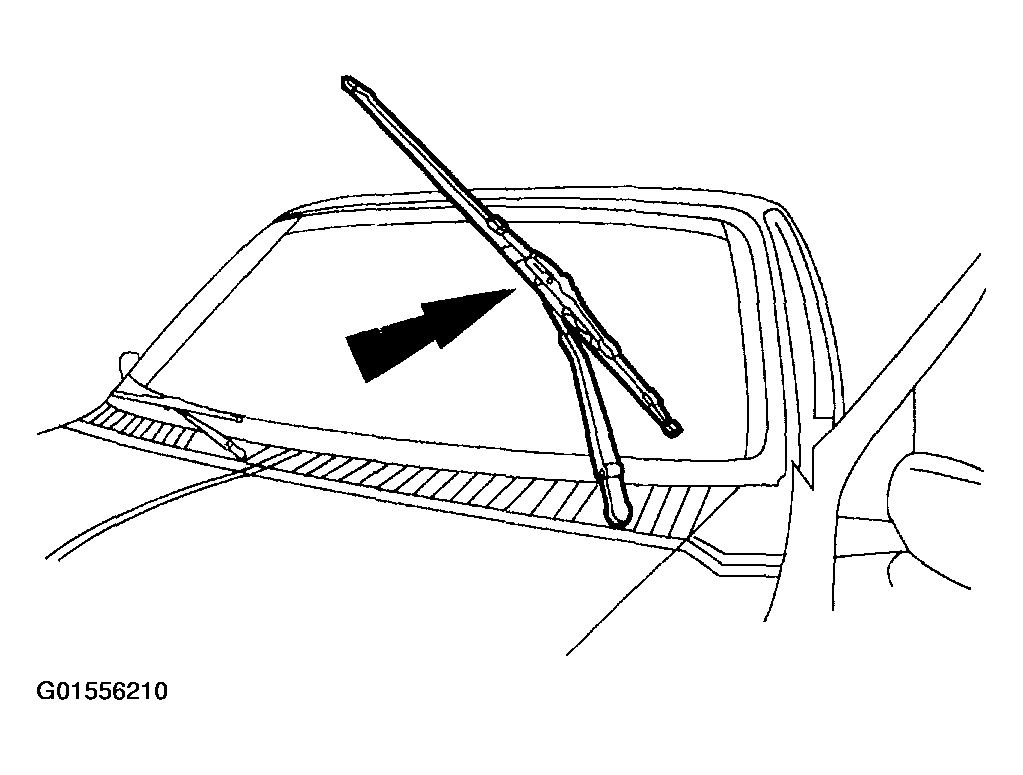

Fig 3: Removing Windshield Wiper Pivot Arms And Reposition To Specification
Courtesy of FORD MOTOR CO.
