Symptom Chart

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

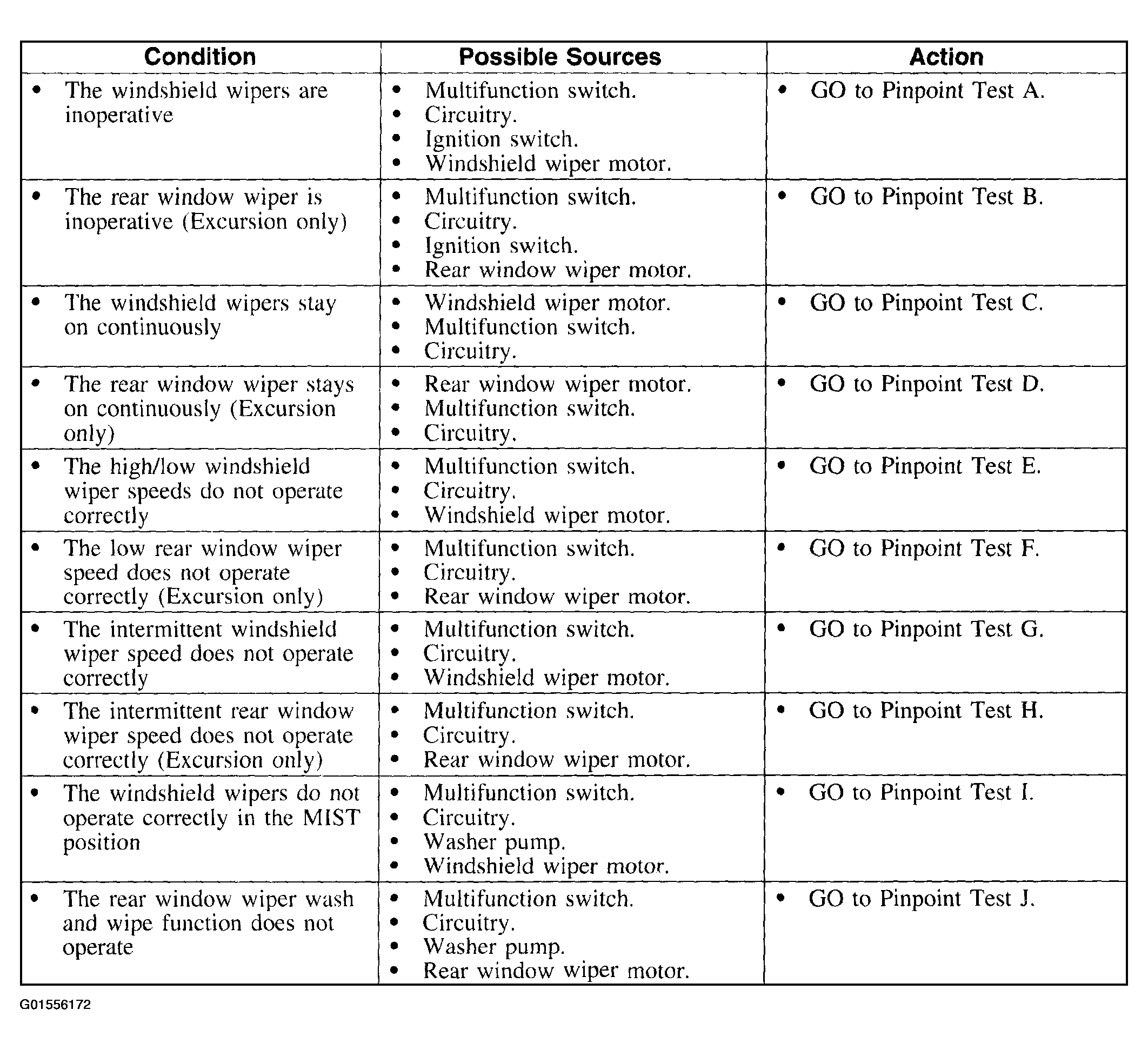

Fig 1: Wipers And Washers Symptom Chart (1 Of 2)
G01556172Courtesy of FORD MOTOR CO.

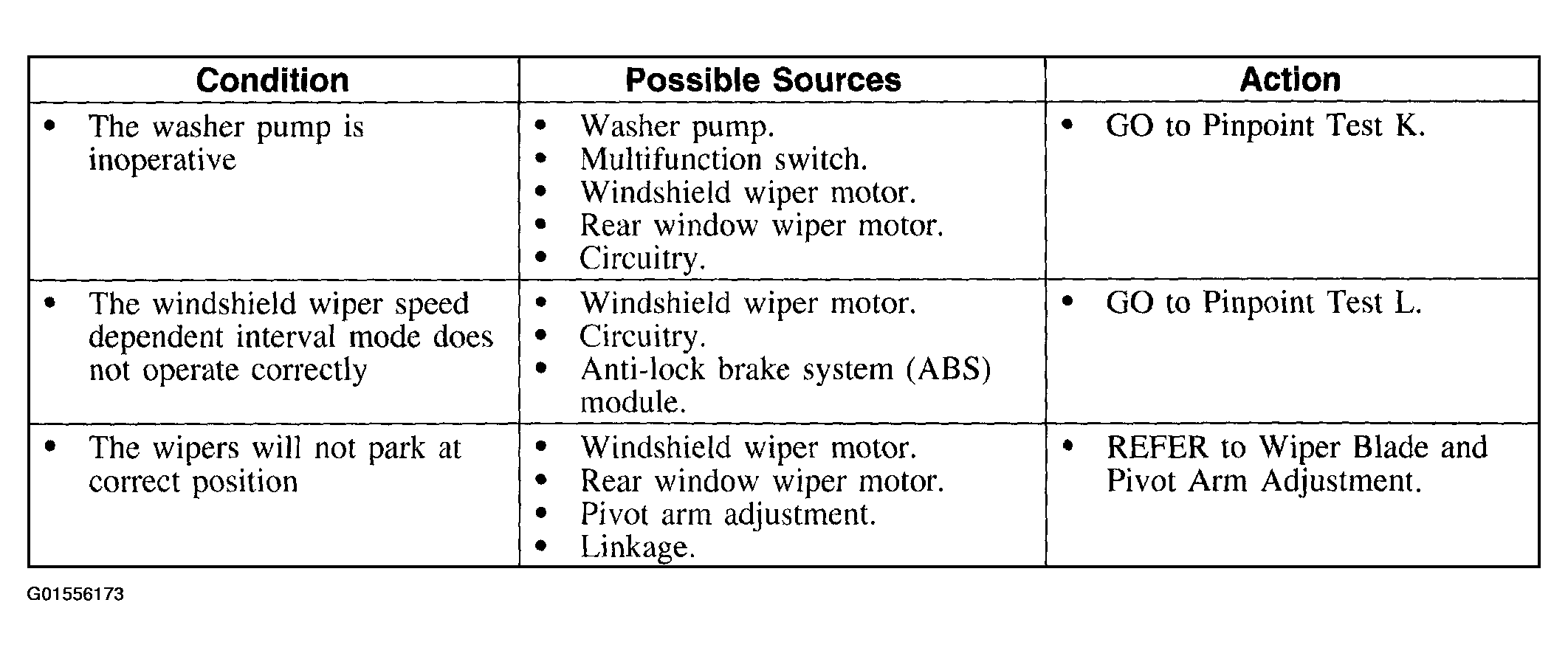

Fig 2: Wipers And Washers Symptom Chart (2 Of 2)
G01556173Courtesy of FORD MOTOR CO.
